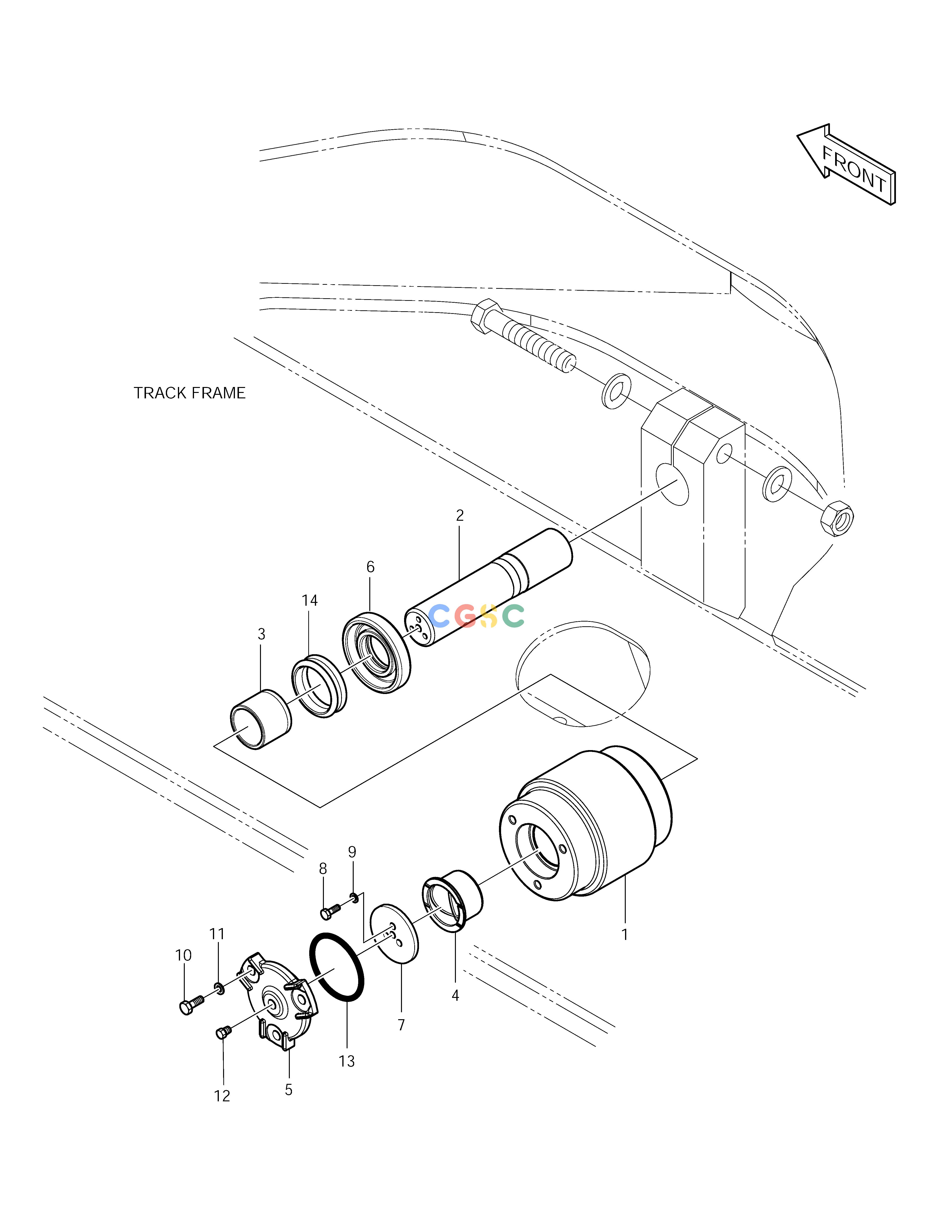

斗山零件查询UPPER ROLLER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1011772B
|
[4] |
UPPER ROLLER ASS'Y
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 10. |
S0512061
|
[3] |
. BOLT M10X1.5X25
|
|
| 11. |
S5102603
|
[3] |
. WASHER
|
|
| 12. |
2181-1116D2
|
[1] |
PLUG
|
|
| 13. |
S8010600
|
[1] |
O-RING
|
|
| 14. |
2180-9087
|
[1] |
SEAL;GROUP
|
|
| 2. |
K1029203
|
[1] |
SHAFT
|
|
| 3. |
K1029204
|
[1] |
BUSHING
|
|
| 4. |
K1029205
|
[1] |
BUSHING
|
|
| 5. |
K1029201
|
[1] |
COVER
|
|
| 6. |
K1024748
|
[1] |
RING;THRUST
|
|
| 7. |
2114-1379
|
[1] |
WASHER
|
|
| 8. |
S0508863
|
[3] |
BOLT;M8X20
|
|
| 9. |
S5102503
|
[3] |
. WASHER
|
|
