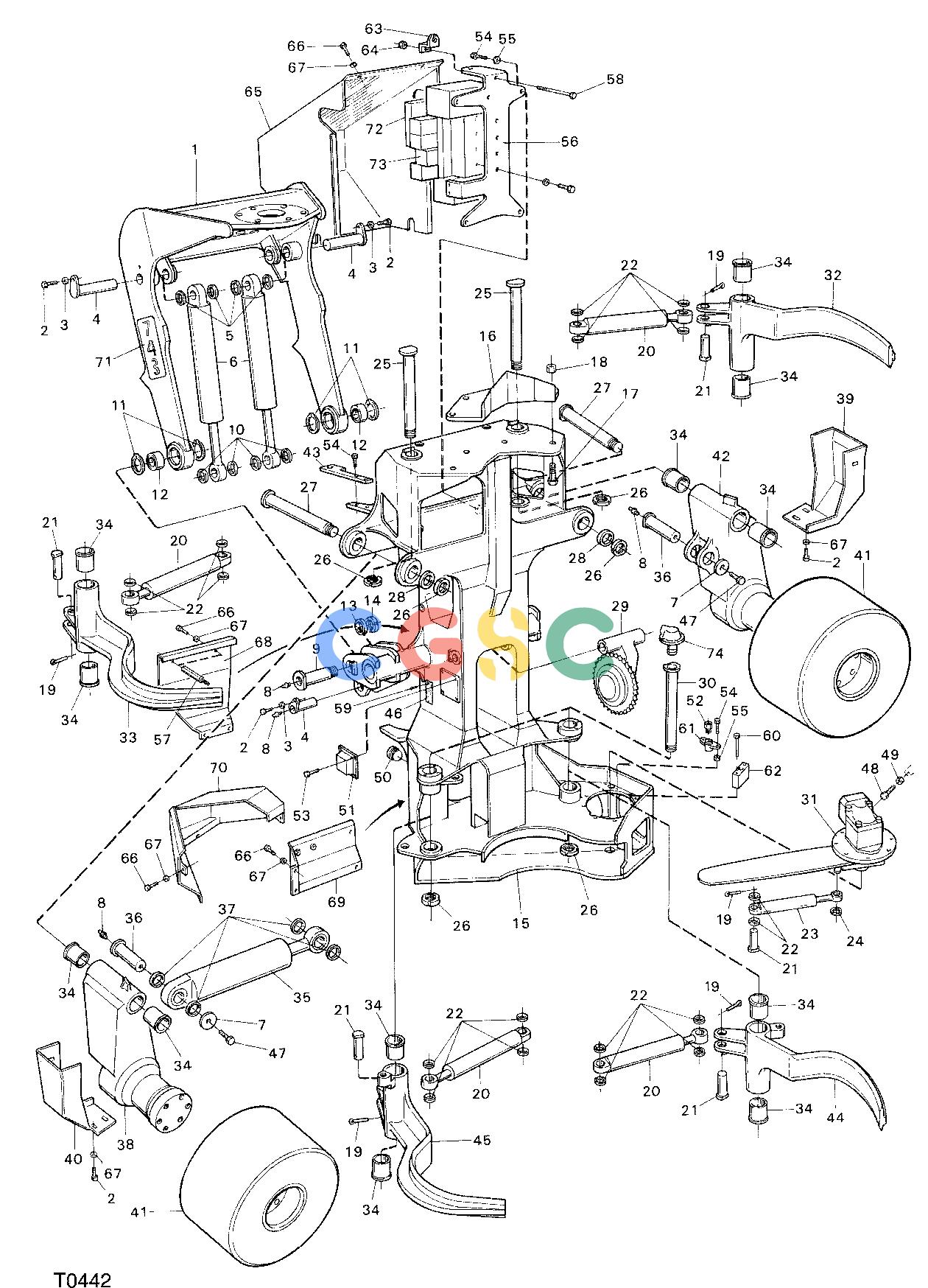

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE HARVESTER HEAD F042685 11 4 T0442 [T0442]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F021293
|
[1] |
Link
|
|
| 2. |
F003531
|
[11] |
Screw
|
|
| 3. |
F005551
|
[4] |
Lock Washer
|
|
| 4. |
F021304
|
[4] |
SHAFT ASSY
|
|
| 5. |
F011186
|
[8] |
Sleeve
|
|
| 6. |
F026294
|
[2] |
Cylinder
|
|
| 7. |
F031070
|
[2] |
Washer
|
|
| 8. |
F005626
|
[10] |
GREASE NIPPLE
|
|
| 9. |
F021319
|
[2] |
Shaft
|
|
| 10. |
F021366
|
[4] |
Spacer
|
|
| 11. |
F003373
|
[4] |
CIRCLIP
|
|
| 12. |
F003820
|
[2] |
SPHERICAL BEARING
|
|
| 13. |
F018239
|
[2] |
Spacer
|
|
| 14. |
F019244
|
[2] |
Lock Nut
|
|
| 15. |
F021286
|
[1] |
Leg
|
|
| 16. |
F021277
|
[1] |
DELIMBING KNIFE
|
|
| 17. |
F003551
|
[4] |
Screw
|
|
| 18. |
F005494
|
[4] |
Lock Nut
|
|
| 19. |
F015779
|
[9] |
SPLIT PIN
|
|
| 20. |
F022613
|
[4] |
Cylinder
|
|
| 21. |
F018229
|
[9] |
Pin
|
|
| 22. |
F019886
|
[18] |
Spacer
|
|
| 23. |
F011197
|
[1] |
Cylinder
|
|
| 24. |
F003357
|
[1] |
CIRCLIP
|
|
| 25. |
F019970
|
[2] |
Shaft
|
|
| 26. |
F018838
|
[6] |
Lock Nut
|
|
| 27. |
F019969
|
[2] |
Shaft
|
|
| 28. |
F019968
|
[2] |
Spacer
|
|
| 29. |
-------
|
[1] |
Measuring Wheel
|
|
| 30. |
F021201
|
[2] |
Shaft
|
|
| 31. |
-------
|
[1] |
Saw
|
|
| 32. |
F019192
|
[1] |
DELIMBING TOOL
|
|
| 33. |
F019191
|
[1] |
DELIMBING TOOL
|
|
| 34. |
F005548
|
[8] |
BEARING BUSHING
|
|
| 35. |
F014647
|
[1] |
Cylinder
|
|
| 36. |
F031071
|
[2] |
Shaft
|
|
| 37. |
F014675
|
[4] |
SPACER RING
|
|
| 38. |
-------
|
[1] |
WHEEL MOUNTING
|
|
| 39. |
F029866
|
[1] |
PROTECTION
|
|
| 40. |
F029867
|
[1] |
PROTECTION
|
|
| 41. |
F022962
|
[2] |
FEED WHEEL
|
|
| |
F030553
|
[2] |
CHAINS
|
|
| |
F013128
|
[2] |
FEED ROLL
|
|
| |
F036259
|
[%] |
CHAIN
|
|
| |
F031228
|
[2] |
SPIKED ROLL
|
|
| |
F032177
|
[600] |
Spike
|
|
| |
F034481
|
[2] |
FEED WHEEL
|
|
| 42. |
-------
|
[1] |
WHEEL MOUNTING
|
|
| 43. |
F025639
|
[2] |
HEAD
|
|
| 44. |
F021422
|
[1] |
DELIMBING TOOL
|
|
| 45. |
F021421
|
[1] |
DELIMBING TOOL
|
|
| 46. |
F027583
|
[1] |
Sign
|
|
| 47. |
F003540
|
[2] |
Screw
|
|
| 48. |
F003533
|
[1] |
Screw
|
|
| 49. |
F003564
|
[1] |
Nut
|
|
| 50. |
F021332
|
[1] |
REFILLING COVER
|
|
| 51. |
F019359
|
[2] |
DAMPER
|
|
| 52. |
F035597
|
[1] |
EXTENSION PIECE
|
|
| 53. |
F007787
|
[8] |
Screw
|
|
| 54. |
F003541
|
[14] |
Screw
|
|
| 55. |
F002805
|
[10] |
Lock Washer
|
|
| 56. |
F027676
|
[1] |
Bracket
|
|
| 57. |
F027700
|
[2] |
Screw
|
|
| 58. |
F028804
|
[1] |
Screw
|
|
| 59. |
F021485
|
[2] |
Screw
|
|
| 60. |
F003478
|
[2] |
Screw
|
|
| 61. |
F011171
|
[1] |
Holder
|
|
| |
F035590
|
[1] |
Holder
|
|
| 62. |
F009843
|
[1] |
Case
|
|
| 63. |
F027696
|
[1] |
Clamp
|
|
| 64. |
F003588
|
[1] |
Lock Nut
|
|
| 65. |
F028507
|
[1] |
Case
|
|
| 66. |
F015148
|
[12] |
Screw
|
|
| 67. |
F003339
|
[18] |
Washer
|
|
| 68. |
F028661
|
[1] |
COVER PLATE
|
|
| 69. |
F028529
|
[1] |
COVER PLATE
|
|
| 70. |
F028621
|
[1] |
COVER PLATE
|
|
| 71. |
F023974
|
[2] |
DECAL
|
|
| 72. |
-------
|
[1] |
ELECTRICAL SYSTEM
|
|
| 73. |
F024699
|
[1] |
Valve
|
|
| 74. |
-------
|
[1] |
ANGLE INDICATOR
|
|
