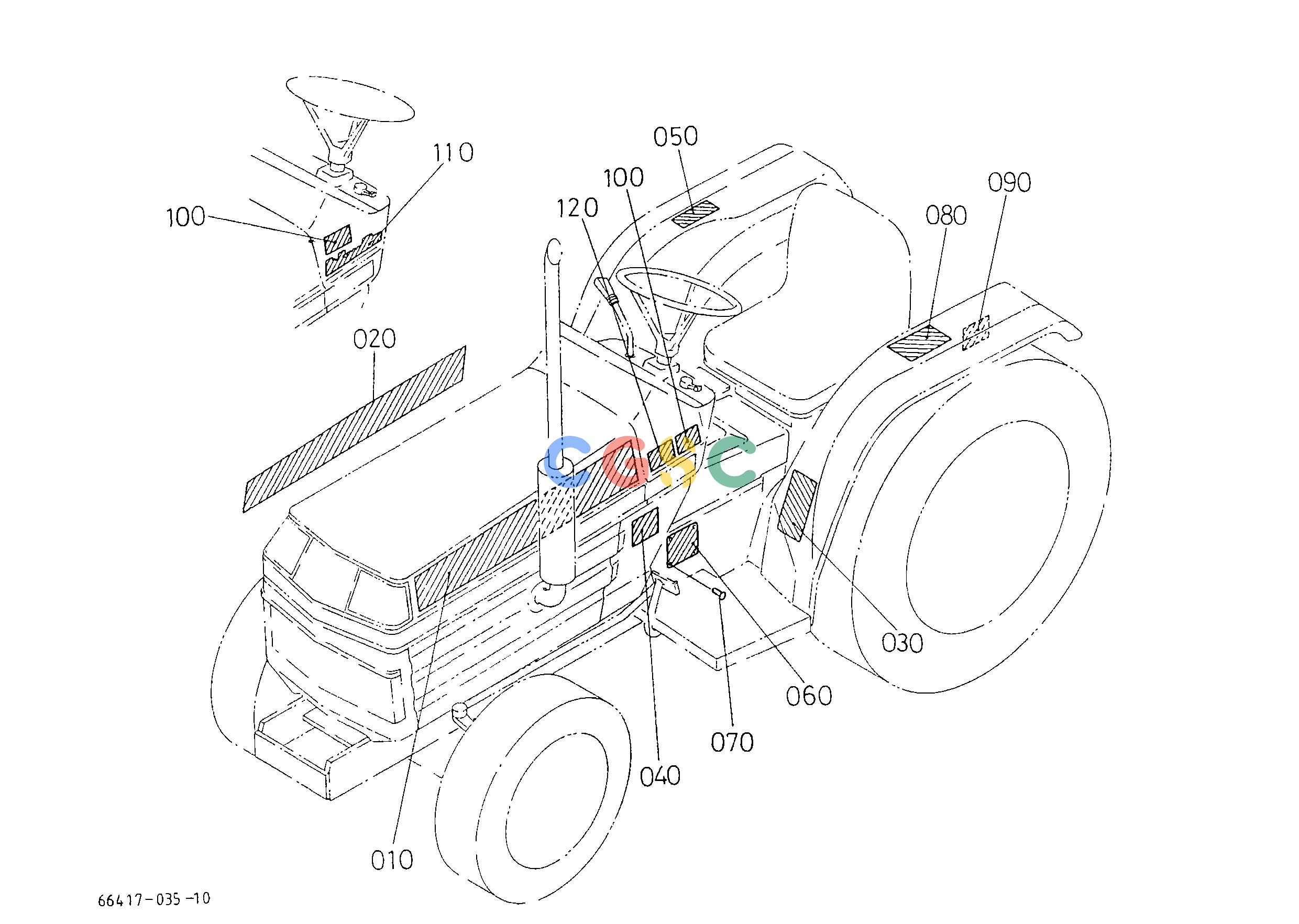

Pos.	Part No	Qty	Parts name	Comments
010.	6641447110	[1]	LABEL BONNET LH	; <=61573 0.0440(lbs); 0.020
010.	6641447112	[1]	LABEL BONNET LH	; =>61574 0.0594(lbs); 0.027
020.	6641447120	[1]	LABEL BONNET RH	; <=61573 0.0440(lbs); 0.020
020.	6641447122	[1]	LABEL BONNET RH	; =>61574 0.0550(lbs); 0.025
030.	3526034912	[1]	LABEL SAFETY	ENGLISH; <=61424 0.0000(lbs); 0.000
030.	3526034913	[1]	LABEL SAFETY	ENGLISH; =>61425 0.0110(lbs); 0.005
030.	3526134910	[1]	LABEL SAFETY	FRENCH 0.0132(lbs); 0.006
040.	3582098632	[1]	LABEL START CAUTION	ENGLISH 0.0066(lbs); 0.003
040.	3253065930	[1]	LABEL START CAUTION	FRENCH 0.0022(lbs); 0.001
050.	6670647140	[1]	LABEL	; <=61424 0.0000(lbs); 0.000
050.	6642647140	[1]	LABEL LIFT	; =>61425 0.0044(lbs); 0.002
060.	9999999999	[1]	NAME PLATE	NON SALE 0.0000(lbs); 0.000
070.	5410224410	[4]	RIVET	0.0022(lbs); 0.001
080.	3526029782	[1]	LABEL ROPS WARNING	ENGLISH 0.0022(lbs); 0.001
080.	3587198640	[1]	LABEL ROPS WARNING	FRENCH 0.0044(lbs); 0.002
090.	3526029790	[1]	LABEL DRAWBAR	ENGLISH 0.0044(lbs); 0.002
090.	3587198660	[1]	LABEL DRAWBAR	FRENCH 0.0022(lbs); 0.001
100.	6641647230	[2]	LABEL 4WD	0.0044(lbs); 0.002
110.	6641647240	[2]	LABEL BI-SPEED TURN	BI-SPEED TURN 0.0044(lbs); 0.002
120.	6641747250	[2]	LABEL HST	0.0066(lbs); 0.003
