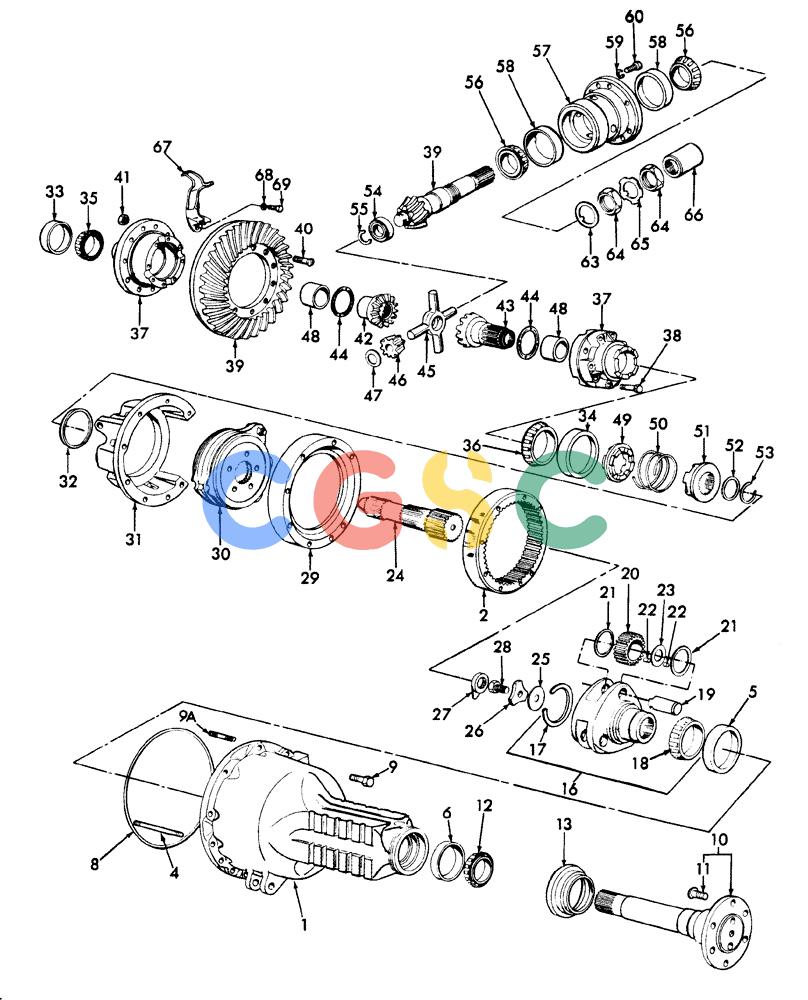

| 1. | D8114010KA | [1] | Housing Assy., R.H., Start Year: 01-JAN-81 | |
| . . | D8NN4011HA | [1] | SUMP | FORHousing Assy., L.H., Includes: Ref. 2 thru 6, Start Year: 01-JAN-81 Superseded by part number: 86511646, 82007081, 81866390 |
| 2. | C5NN4075C | [2] | PLANETARY GEAR | FORGear, Start Year: 01-JAN-81 Superseded by part number: 81803343 |
| 4. | 377525S | [4] | STUD | FOR1/2"-13-20 x 7.75, Start Year: 01-JAN-81 Superseded by part number: 83417087 |
| 5. | D2NN4N136A | [2] | BEARING ASSY,83.3704 mm ID x 125.4379 mm OD x 25.603 mm | BASCup, Inner, Start Year: 01-JAN-81 Superseded by part number: 81825865 |
| 6. | 163044 | [2] | BEARING CUP,110.03mm OD x 18.82mm W | GICup, Outer, Start Year: 01-JAN-81 |
| 7. | 380134S36 | [16] | NUT | FORHex, 1/2"-20, Start Year: 01-JAN-81 Superseded by part number: 33846S36 |
| 8. | 83417133 | [2] | O-RING,3.63mm Thk x 336.91mm ID | FOR13.50" ID x .139" Thk, Start Year: 01-JAN-81 |
| 9. | 86505999 | [42] | BOLT,Hex, 5/8" - 11 x 2", Gr 5 | NHScrew, Cap, HH, G5, 5/8"-11 x 2", Start Year: 01-JAN-81 |
| 9. | 88693 | [2] | BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5 | NHScrew, Cap, HH, G5, 5/8"-11 x 2-3/4", Start Year: 01-JAN-81 |
| . . | 408 | [8] | NUT,5/8" - 18, Gr 5 | BASG5, 5/8"-18, Start Year: 01-JAN-81 |
| 9A. | 389435S36 | [4] | STUD | BAS5/8"-11-18 x 2.73, Start Year: 01-JAN-81 Superseded by part number: 390842S36 |
| 10. | E4NN4244CA | [2] | SHAFT | FORAssy., 8 Bolt, Includes: Ref. 11, Start Year: 01-JAN-81 Superseded by part number: 83955484 |
| 11. | C5NN1N118H | [16] | BOLT | FOR3/4"-16 x 2-5/16", Start Year: 01-JAN-81 Superseded by part number: 81815740 |
| . . | D3NN1120B | [16] | WHEEL NUT | BAS3/4"-16, Start Year: 01-JAN-81 Superseded by part number: 81833776 |
| 12. | C5NN4N221B | [2] | BEARING CONE | FORCone Assy., Outer, Start Year: 01-JAN-81 Superseded by part number: 81818397 |
| 13. | E3NN4969AA | [1] | RETAINER | BASSeal Assy., Shaft, Start Year: 01-JAN-81 Superseded by part number: C5NN4969D |
| 16. | 86584273 | [2] | CARRIER | PAAssy., Includes: Ref. 17 thru 22, Start Year: 01-JAN-81 |
| 17. | C7NN4N031B | [2] | RETAINER | FOR, Start Year: 01-JAN-81 Superseded by part number: 81820846 |
| 18. | E1ADDN4221 | [2] | BEARING CONE | FORCone Assy., Inner, Start Year: 01-JAN-81 Superseded by part number: 81854753 |
| 19. | C7NN4048E | [6] | SHAFT | FOR, Start Year: 01-JAN-81 Superseded by part number: 81820849 |
| 20. | C5NN4044B | [6] | DRIVEN GEAR | FORGear, Start Year: 01-JAN-81 Superseded by part number: 81803330 |
| 21. | 81803273 | [12] | THRUST WASHER,32.82mm ID x 57.4mm OD x 0.81mm Thk | BASWasher, Start Year: 01-JAN-81 |
| 22. | CFPN4013B | [6] | KIT | FORBearing, Includes 32 needles, Start Year: 01-JAN-81 Superseded by part number: 81803295 |
| 23. | C5NN4A008B | [6] | SPACER | FOR, Start Year: 01-JAN-81 Superseded by part number: 81803275 |
| 24. | C5NN4049B | [2] | SUN GEAR | FORGear, Start Year: 01-JAN-81 Superseded by part number: 81803334 |
| 25. | C5NN4374AB | [1] | SPACER,0.90" ID x 2.12" OD x 0.050" Thk | FOR.90" x 2.12" x .049/.050" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803491 |
| 25. | 81803503 | [1] | SHIM,22.86mm ID x 53.85mm OD x 1.47mm Thk | BAS, Start Year: 01-JAN-81 |
| 25. | C5NN4374N | [1] | SPACER,0.90" ID x 2.12" OD x 0.062" Thk | FOR.90" x 2.12" x .061/.062" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803504 |
| 25. | C5NN4374R | [1] | SPACER,0.90" ID x 2.12" OD x 0.066" Thk | FOR.90" x 2.12" x .065/.066" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803505 |
| 25. | C5NN4374S | [1] | SPACER,0.90" ID x 2.12" OD x 0.070" Thk | FOR.90" x 2.12" x .069/.070" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803506 |
| 25. | C5NN4374T | [1] | SPACER,0.90" ID x 2.12" OD x 0.074" Thk | FOR.90" x 2.12" x .073/.074" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803507 |
| 25. | C5NN4374U | [1] | SPACER,0.90" ID x 2.12" OD x 0.078" Thk | FOR.90" x 2.12" x .077/.078" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803508 |
| 25. | C5NN4374V | [1] | SPACER,0.90" ID x 2.12" OD x 0.082" Thk | FOR.90" x 2.12" x .081/.082" Thk (2.057/2.083 mm), Start Year: 01-JAN-81 Superseded by part number: 81803509 |
| 25. | C5NN4374Y | [1] | SPACER,0.90" ID x 2.12" OD x 0.086" Thk | FOR.90" x 2.12" x .085/.086" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803510 |
| 25. | C5NN4374Z | [1] | SPACER,0.90" ID x 2.12" OD x 0.090" Thk | FOR.90" x 2.12" x .089/.090" Thk (2.261/2.286 mm), 1 Hole, Start Year: 01-JAN-81 Superseded by part number: 81803511 |
| 26. | C5NN4N237B | [2] | WASHER | FOR, Start Year: 01-JAN-81 Superseded by part number: 81803450 |
| 27. | C7NN4N240B | [2] | LOCK | FOR, Start Year: 01-JAN-81 Superseded by part number: E1NN4N240AA |
| 28. | 304792S36 | [2] | BOLT | BAS7/8"-14 x 1-5/8", Start Year: 01-JAN-81 Superseded by part number: 81846884 |
| 29. | E4NN2A098AA | [2] | HOUSING | FOR, Start Year: 01-JAN-81 Superseded by part number: 83955516 |
| 30. | NSS | [2] | NOT SERVICED SEPARATELY | CONBrake Assy., Start Year: 01-JAN-81 |
| 31. | 83955517 | [1] | HOUSING | FORR.H., Start Year: 01-JAN-81 |
| . . | 83955518 | [1] | HOUSING | BASL.H., Start Year: 01-JAN-81 |
| 32. | 81803515 | [1] | SHIM,96.52mm ID x 111.76mm OD x 1.02mm Thk | BAS(.965-1.016mm) 3.80" x 4.40" x .038/.040" Thk, Start Year: 01-JAN-81 |
| 32. | C5NN4548B | [1] | SHIM,3.80" ID x 4.40" OD x 0.046" Thk | FOR3.80" x 4.40" x .044/.046" Thk (1.118/1.168 mm), Start Year: 01-JAN-81 Superseded by part number: 81803516 |
| 32. | 81803517 | [1] | SHIM,96.52mm ID x 111.76mm OD x 1.32mm Thk | BAS(1.270/1.321 mm) 3.80" x 4.40" x .050/.052" Thk, Start Year: 01-JAN-81 |
| 32. | C5NN4548D | [1] | SHIM,3.80" ID x 4.40" OD x 0.058" Thk | FOR3.80" x 4.40" x .056/.058" Thk (1.422/1.473 mm), Start Year: 01-JAN-81 Superseded by part number: 81803518 |
| 32. | C5NN4548E | [1] | SHIM,3.80" ID x 4.40" OD x 0.064" Thk | FOR3.80" x 4.40" x .062/.064" Thk (1.575/1.626 mm), Start Year: 01-JAN-81 Superseded by part number: 81803519 |
| 32. | C5NN4548F | [1] | SHIM,3.80" ID x 4.40" OD x 0.070" Thk | FOR3.80" x 4.40" x .068"/.070" Thk (1.727/1.778 mm), Start Year: 01-JAN-81 Superseded by part number: 81803520 |
| 32. | C5NN4548G | [1] | SHIM,3.80" x 4.40" x .074/.076" Thk | FOR(1.880/1.930 mm) 3.80" x 4.40" x .074/.076" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803521 |
| 32. | C5NN4548H | [1] | SHIM,3.80" x 4.40" x .080/.082" Thk | FOR(2.032/2.083 mm) 3.80" x 4.40" x .080/.082" Thk, Start Year: 01-JAN-81 Superseded by part number: 81803522 |
| 33. | 510892 | [1] | BEARING CUP,112.71mm OD x 23.81mm W | GIBearing, Cup, LH, Start Year: 01-JAN-81 |
| 34. | 957E4222 | [1] | BEARING ASSY,107.975 mm ID x 158.775 mm OD x 23.02 mm | BASCup, R.H., Start Year: 01-JAN-81 Superseded by part number: 81803420 |
| 35. | 510884 | [1] | ROLLER BEARING,66.69mm ID x 30.05mm W | WINBearing, Cone, Start Year: 01-JAN-81 |
| 36. | 957E4221 | [1] | BEARING ASSY,107.975 mm ID x 158.775 mm OD x 23.02 mm | BASBearing Assy, Cone & Roller, Rear Axel, Differential, RH, Start Year: 01-JAN-81 Superseded by part number: 81803413 |
| 37. | 81816246 | [1] | HOUSING | BASCase Assy., Start Year: 01-JAN-81 |
| 38. | 43104S | [8] | LOCK BOLT,Hex, 1/2" - 13 x 2 7/8 ", Gr 8 | BASBOLT, LOCK, Hex, 1/2"-13 x 2 7/8", G8, Start Year: 01-JAN-81 Superseded by part number: 83994579 |
| 39. | 81803387 | [1] | BEVEL GEAR | FORSet, Gear, 3.50:1, Start Year: 01-JAN-81 Superseded by part number: 84312162 |
| 40. | E94EB9 | [12] | BOLT | FOR, Start Year: 01-JAN-81 Superseded by part number: 390777S |
| 41. | 380135S43 | [12] | LOCK NUT,1/2"-20, GA | FORNUT, LOCK, 1/2"-20, GA, Start Year: 01-JAN-81 Superseded by part number: 83417169 |
| 42. | 81803445 | [1] | GEAR,38 Teeth | BAS, Start Year: 01-JAN-81 |
| 43. | C5NN4239A | [1] | GEAR,27 Teeth | FOR, Start Year: 01-JAN-81 Superseded by part number: 81803451 |
| 44. | 957E4228 | [2] | WASHER | FOR, Start Year: 01-JAN-81 Superseded by part number: 81803424 |
| 45. | 81876885 | [1] | SPIDER,28.4mm Cap Dia, 179.3mm L | WIN, Start Year: 01-JAN-81 |
| 46. | 81717497 | [4] | Pinion Assy., Start Year: 01-JAN-81 | SPARE PART |
| 47. | 508E4230A | [4] | THRUST WASHER | FOR, Start Year: 01-JAN-81 Superseded by part number: 81709483 |
| 48. | E185EB9 | [2] | BUSHING | FORGear Case R.H., Differential, Start Year: 01-JAN-81 Superseded by part number: 81800471 |
| 49. | E186EB9 | [1] | ADAPTER | FORDifferential Lock Gear Case, Start Year: 01-JAN-81 Superseded by part number: 81800472 |
| 50. | E188EB9 | [1] | SPRING | FORDifferential Lock Coupler, Start Year: 01-JAN-81 Superseded by part number: 81800474 |
| 51. | C5NN4N064A | [1] | COUPLING | FOR, Start Year: 01-JAN-81 Superseded by part number: 81812261 |
| 52. | E189EB9 | [1] | WASHER | FORDifferential Lock, Coupler Stop, Start Year: 01-JAN-81 Superseded by part number: 81800475 |
| 53. | E1ADDN4286 | [1] | SNAP RING,2.37" ID | BASRING, SNAP, 2.37" ID, Start Year: 01-JAN-81 Superseded by part number: 81803474 |
| 54. | 81824478 | [1] | BEARING ASSY,30mm ID x 62mm OD x 19.05mm W | WINBearing Assy, Drive Pinion Pilot, Start Year: 01-JAN-81 |
| 55. | 960E4627 | [1] | CIRCLIP | FORRing, Lock, Start Year: 01-JAN-81 Superseded by part number: 81803542 |
| 56. | D8114621AA | [1] | Cone Assy., Rear, Start Year: 01-JAN-81 | |
| 56. | 81845711 | [1] | BEARING ASSY | BASBEARING, CONE, Assy, Front, Start Year: 01-JAN-81 Superseded by part number: 298194R91 |
| 57. | C5NN4614F | [1] | RETAINER | FORAssy., Includes:, Start Year: 01-JAN-81 |
| 58. | 513369 | [1] | BEARING CUP,95.25mm OD x 22.23mm W | WINBearing, Cup, Rear, Start Year: 01-JAN-81 |
| 58. | NCA4616A | [1] | BEARING ASSY,1.7505" ID x 3.501" OD x 1.1955" | GIBEARING, CUP, Front, Start Year: 01-JAN-81 Superseded by part number: 81812385 |
| 59. | 280248 | [5] | LOCK WASHER,9/16" | NHWasher, Lock, 9/16", Start Year: 01-JAN-81 Superseded by part number: 80280248 |
| 60. | 304728S36 | [5] | BOLT,Hex, 9/16"-12 x 1 1/4", G5 | FORHex, 9/16"-12 x 1-1/4", G5, Start Year: 01-JAN-81 |
| 63. | C5NN4667B | [1] | BEARING WASHER | FORWasher, L/HB, Start Year: 01-JAN-81 Superseded by part number: 81815991 |
| 64. | 960E4634 | [2] | BEARING LOCK NUT | FOR, Start Year: 01-JAN-81 Superseded by part number: 81803547 |
| 65. | 960E4636 | [1] | LOCK WASHER | FORWASHER, LOCK, Start Year: 01-JAN-81 Superseded by part number: 81803550 |
| 66. | C5NN4684B | [1] | COUPLING | FOR8", 200mm, Start Year: 01-JAN-81 |
| 67. | 81803369 | [1] | BLOCK | BAS545, Start Year: 01-JAN-81 |
| 68. | 81547 | [1] | BEARING WASHER,7/16" | NHWASHER, LOCK, 7/16", Start Year: 01-JAN-81 |
| 69. | 9706729 | [2] | BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd | NH, Start Year: 01-JAN-81 |
