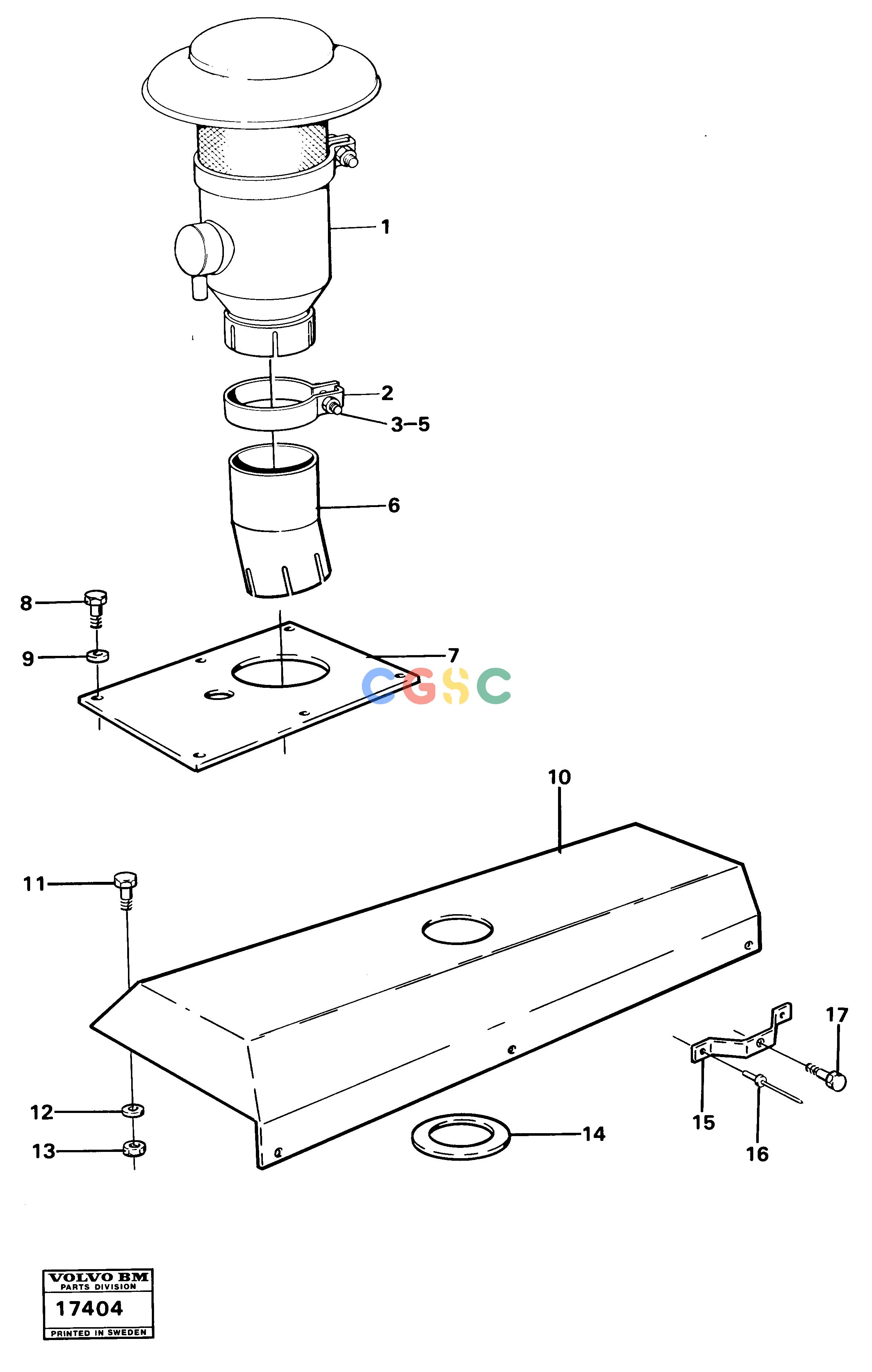

沃尔沃零件查询4500 Pre-cleaner and silencer protection 99826,99827450099826-99827VOE99826NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE926049
|
[0001] |
Nut
|
|
| 6. |
|
[0001] |
Pipe
|
|
| 7. |
|
[0001] |
Rubber guard
|
|
| 8. |
VOE969278
|
[0006] |
Six point socket screw
|
|
| 9. |
VOE13960138
|
[0006] |
Washer
|
|
| 1. |
VOE4880630
|
[0001] |
Pre-cleaner
|
|
| 10. |
VOE4856311
|
|
Protection
|
|
| 11. |
VOE970945
|
|
Hexagon screw
|
|
| 12. |
VOE976945
|
|
Washer
|
|
| 13. |
VOE13971083
|
|
Lock nut
|
|
| 14. |
VOE4856301
|
|
Ring
|
|
| 15. |
VOE4856295
|
|
Anchorage
|
|
| 16. |
VOE942670
|
|
Blind rivet
|
|
| 17. |
VOE970945
|
|
Hexagon screw
|
|
| 2. |
VOE4774737
|
[0001] |
Clamp
|
|
| 3. |
VOE955535
|
[0001] |
Hexagon screw
|
|
| 4. |
VOE976945
|
[0001] |
Washer
|
|
