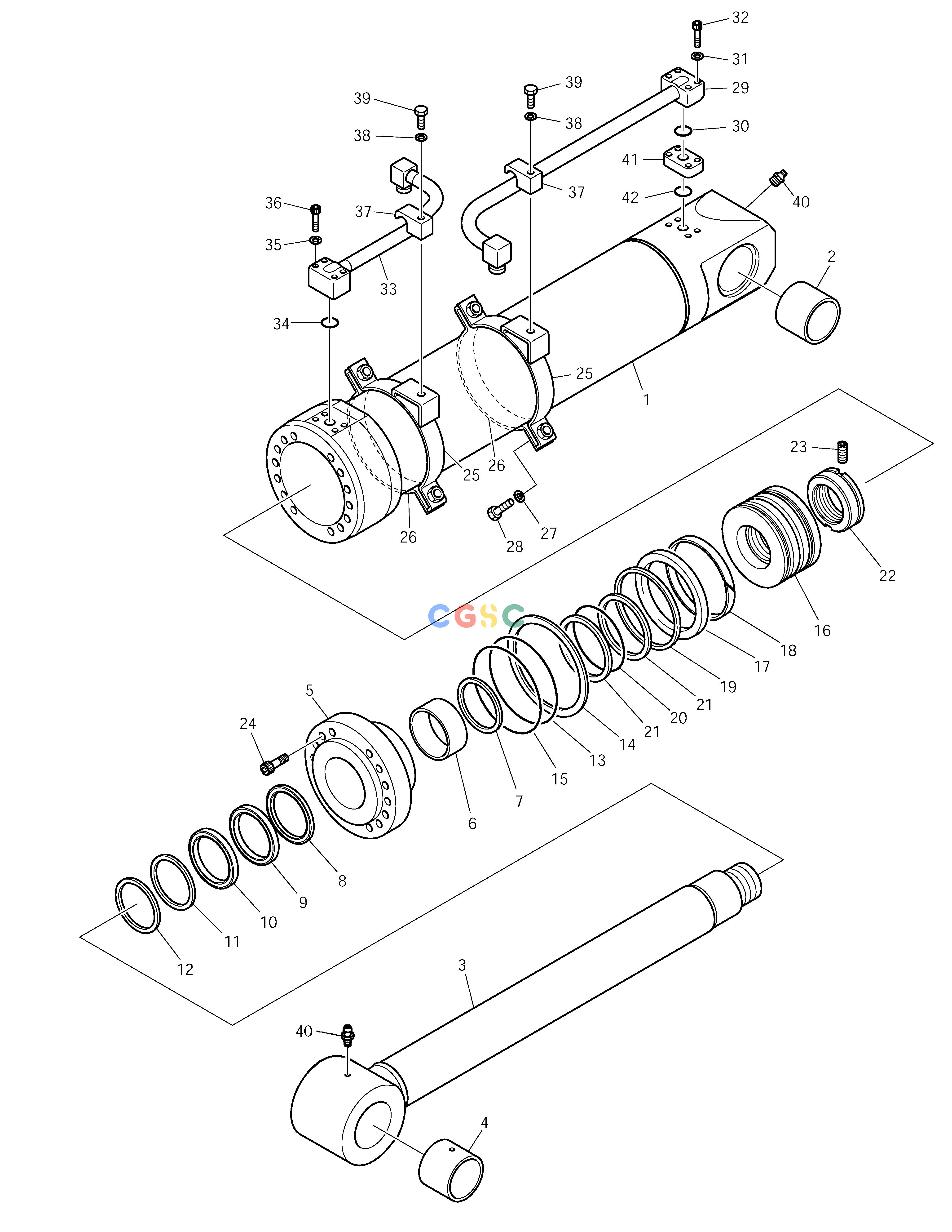

斗山零件查询ARTI. BOOM CYLINDER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
374 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9005072
|
[1] |
SEAL KIT
|
|
| -. |
K1008737A
|
[1] |
CYLINDER;ARTI BOOM
|
K1008737B
|
| -. |
K1008737B
|
[1] |
CYLINDER;ARTI
|
|
| 1. |
K9005060
|
[1] |
TUBE ASS'Y
|
K9005060A
|
| 1. |
K9005060A
|
[1] |
TUBE ASS'Y
|
|
| 10. |
K9001154
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00072
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00073
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011451
|
[1] |
O-RING
|
|
| 14. |
K9001164
|
[1] |
RING;BACK UP
|
|
| 15. |
180-00363
|
[1] |
O-RING
|
|
| 16. |
K9005063
|
[1] |
PISTON
|
|
| 17. |
180-00360
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
K9005049
|
[1] |
RING;WEAR
|
|
| 19. |
115-00122
|
[1] |
RING;SLYD
|
|
| 2. |
K1008572
|
[1] |
BUSH
|
|
| 20. |
S8010751
|
[1] |
O-RING
|
|
| 21. |
1.180-00663
|
[2] |
RING;BACK UP
|
|
| 22. |
121-00055
|
[1] |
NUT;PISTON
|
|
| 23. |
S3523836
|
[1] |
SCREW;SET
|
|
| 24. |
S2221873
|
[14] |
BOLT
|
|
| 25. |
K9005064
|
[2] |
PIPE BAND ASS'Y
|
|
| 26. |
124-00157
|
[2] |
BAND;PIPE
|
|
| 27. |
S5100603
|
[4] |
WASHER
|
|
| 28. |
S0558153
|
[4] |
BOLT
|
|
| 29. |
K9005065
|
[1] |
PIPE ASS'Y-H
|
|
| 3. |
K9005061
|
[1] |
ROD ASS'Y
|
|
| 30. |
S8000281
|
[1] |
O-RING
|
|
| 31. |
S5100603
|
[4] |
WASHER
|
|
| 32. |
S2212861
|
[4] |
BOLT;SOCKET
|
|
| 33. |
K9005066
|
[1] |
PIPE ASS'Y-R
|
|
| 34. |
S8000281
|
[1] |
O-RING
|
|
| 35. |
S5100603
|
[4] |
WASHER
|
|
| 36. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 37. |
K9001413
|
[2] |
CLAMP;PIPE
|
|
| 38. |
S5102903
|
[2] |
WASHER
|
|
| 39. |
S0565451
|
[2] |
BOLT
|
|
| 4. |
K1008572
|
[1] |
BUSH
|
|
| 40. |
S6710032
|
[2] |
NIPPLE;GREASE
|
|
| 41. |
114-00292
|
[1] |
SPACER
|
|
| 42. |
S8000281
|
[1] |
O-RING
|
|
| 5. |
K9005062
|
[1] |
COVER;ROD
|
|
| 6. |
110-00080
|
[1] |
DD-BUSH
|
|
| 7. |
115-00063
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00657
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001153
|
[1] |
U-PACKING
|
|
