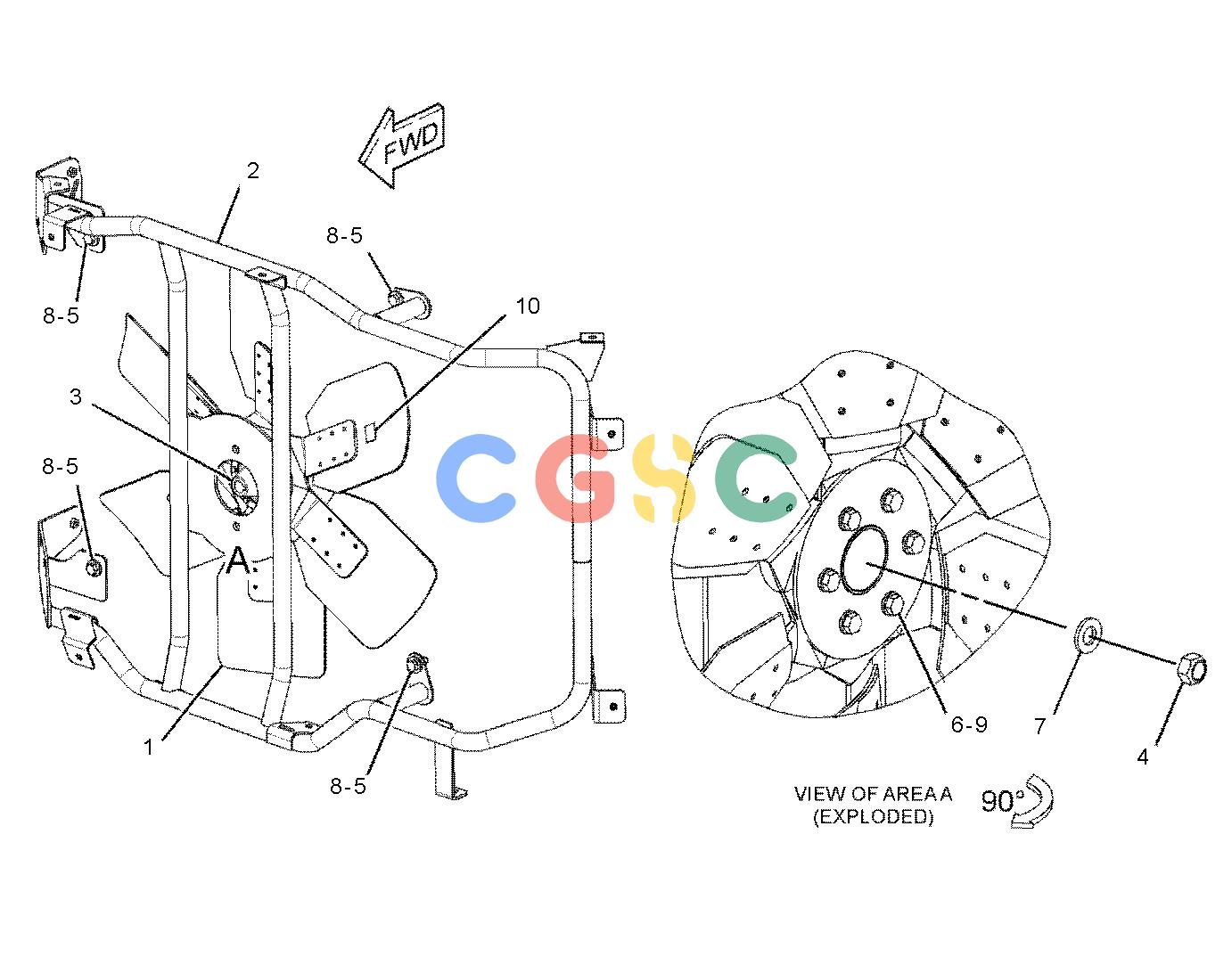

卡特零件查询（725） 244-0823: FAN GP-SUCTION
广数供应链运营团队, 14 02月, 2025，浏览：
639 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 209-6222 | [1] | SPIDER AS-FAN(6-BLADE) | |
| 2. | 243-2620 | [1] | SUPPORT AS | |
| | 206-5540 | [1] | BRACKET | |
| | 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | |
| 3. | 247-6883 | [1] | BOSS | |
| 4. | 2K-4821 | [1] | LOCKNUT(5/8-18-THD) | |
| 5. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 6. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 8. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 9. | 8T-4196M | [6] | BOLT(M10X1.5X35-MM) | |
| 10. | 1U-6605B | | TAPE-REFLECTIVE | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
