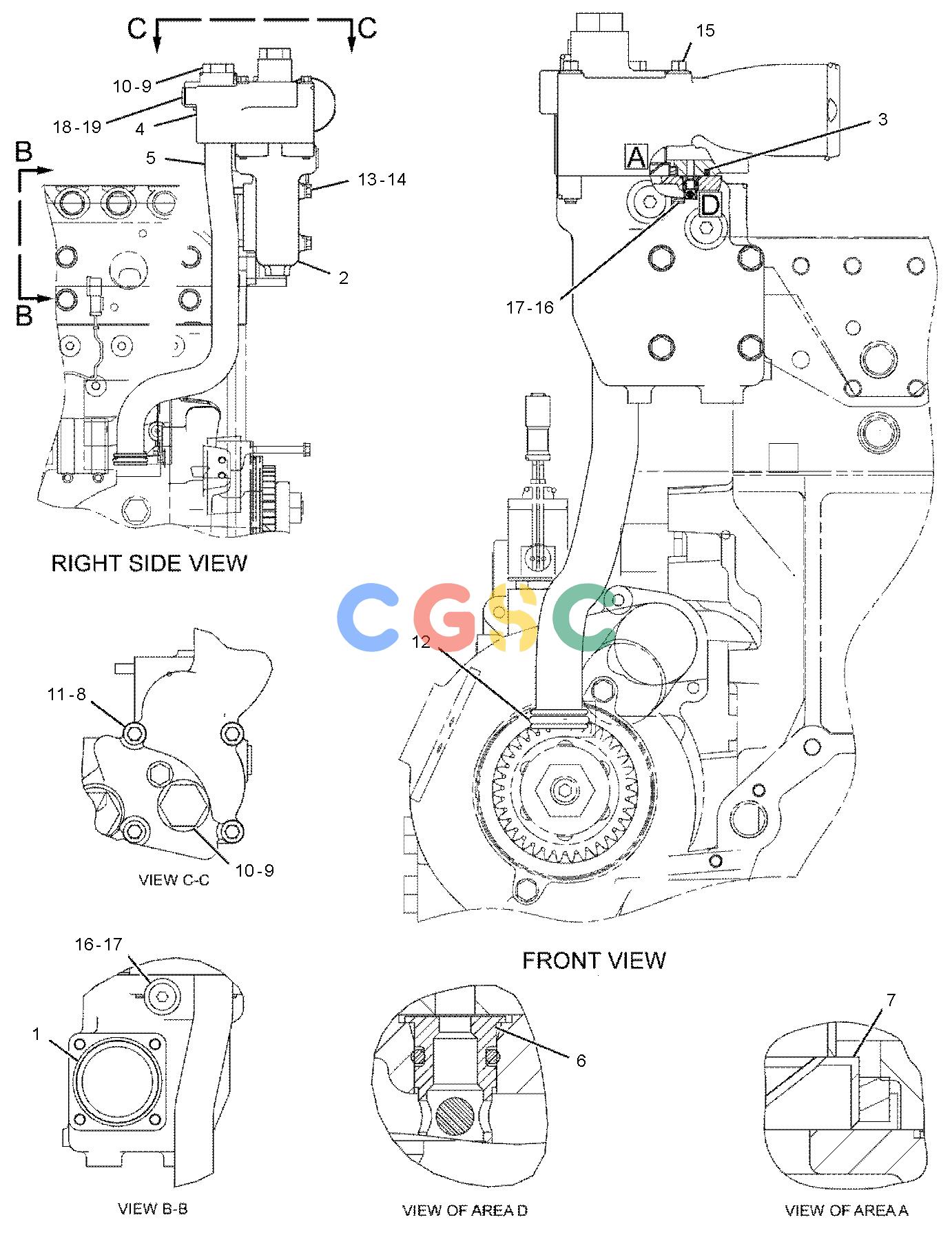

卡特零件查询（725） 229-1414: LINES GP-COOLANT
广数供应链运营团队, 14 02月, 2025，浏览：
815 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4N-6749 | [6] | HOSE-ADAPTER(UPPER RADIATOR) | |
| 2. | 8T-0154 | [2] | CLAMP-HOSE | |
| 3. | 003-2143 | [2] | ELBOW | |
| 4. | 005-7889 | [1] | VALVE AS-DRAIN(ENGINE COOLANT) | |
| 5. | 157-0670 | [1] | CAP-DUST | |
| 6. | 173-0681 | [1] | TUBE | |
| 7. | 9X-2133E | | HOSE(40-CM) | |
| 8. | 176-0569 | [1] | ADAPTER | |
| 9. | 179-5343 | [1] | BRACKET | |
| 10. | 179-6718 | [2] | CLAMP | |
| 11. | 194-6603 | [1] | BRACKET AS | |
| 12. | 194-6606 | [2] | CLAMP-SWIVEL | |
| 13. | 195-0633 | [1] | TUBE AS | |
| 14. | 5P-1253E | | HOSE(133-CM) | |
| 14A. | 5P-1253E | | HOSE(40-CM) | |
| 15. | 209-4573 | [17] | CLAMP-T BOLT | |
| 17. | 228-6978 | [4] | CLAMP | |
| 18. | 236-6525 | [1] | ELBOW | |
| 19. | 237-7320 | [1] | ELBOW | |
| 20. | 237-8054Y | [1] | COOLER GP-POWER TRAIN OIL(TRANSFER GEAR) | |
| 21. | 237-8055 | [1] | TUBE AS | |
| 22. | 238-0027 | [1] | TUBE AS | |
| 23. | 238-0897 | [1] | TUBE AS | |
| 24. | 238-0898 | [1] | BRACKET-ANGLE | |
| 25. | 249-4956 | [1] | ELBOW | |
| 26. | 249-4957 | [1] | TUBE | |
| 27. | 249-5525 | [1] | TUBE AS | |
| 28. | 154-9024 | [1] | VALVE-SAMPLING(COOLANT) | |
| 29. | 164-5592 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 8C-3751 | [1] | ELBOW | |
| 30. | 209-4578 | [1] | CLAMP-T BOLT | |
| 31. | 053-0558 | [1] | CLIP | |
| 32. | 3J-5390 | [2] | PLUG(3/8-18-THD) | |
| 33. | 3U-2428 | [1] | CLAMP-PIPE | |
| 34. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 35. | 6V-1867 | [5] | CLIP(SLOT) | |
| 36. | 6V-1868 | [5] | CLIP(TAB) | |
| 37. | 193-2120 | [5] | GROMMET | |
| 38. | 8S-0023 | [1] | CLIP(SLOT) | |
| 39. | 8S-0024 | [1] | CLIP(TAB) | |
| 40. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 41. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 42. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 43. | 8T-4139M | [5] | BOLT(M12X1.75X30-MM) | |
| 44. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 45. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 46. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 47. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 48. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 49. | 8T-4244M | [3] | NUT(M12X1.75-THD) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
