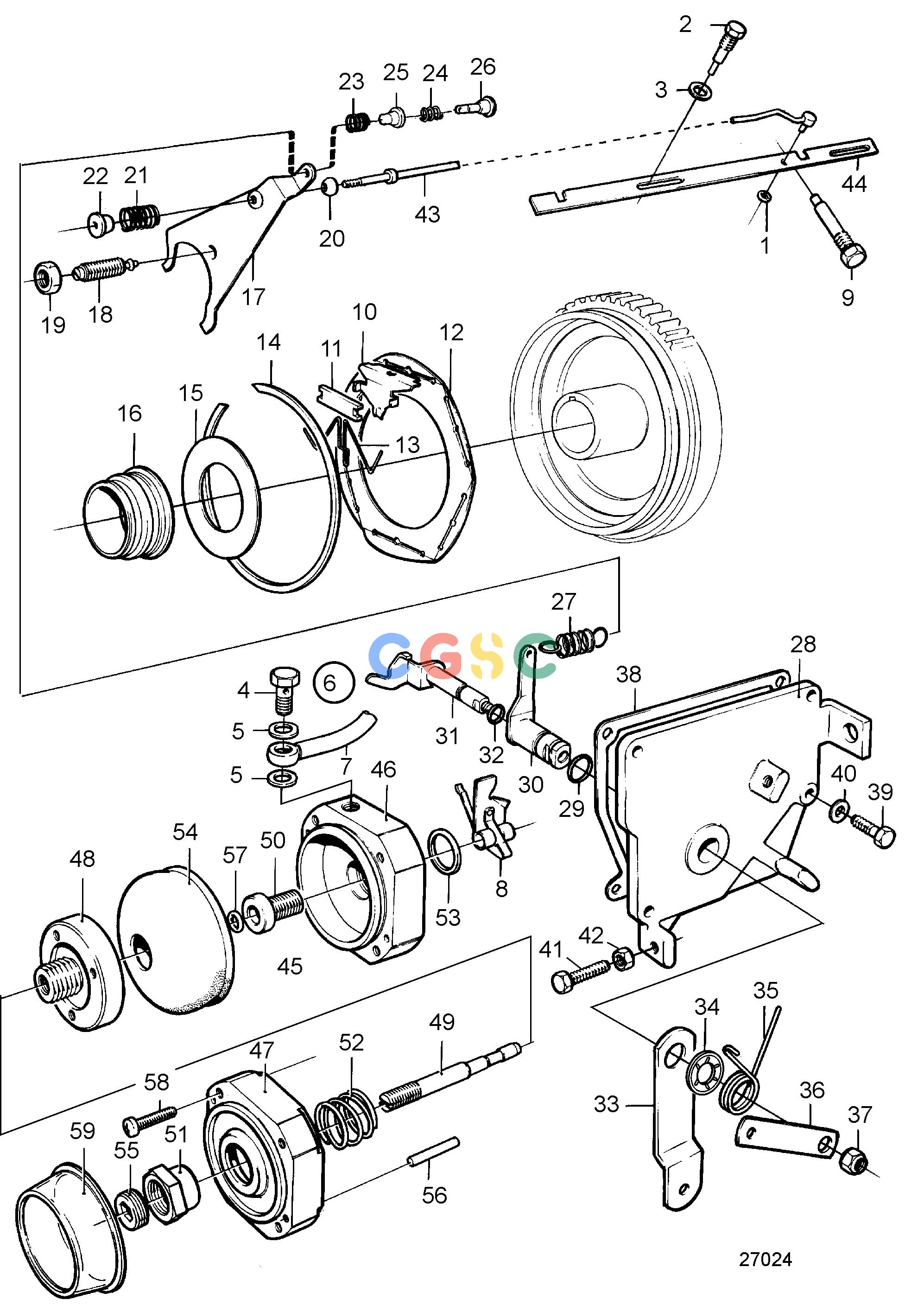

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TFuel SystemRegulation Syst. with Smoke LimiterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
951665
|
[1] |
E-circlip
|
|
| 2. |
840489
|
[2] |
Guide screw
|
|
| 3. |
947620
|
[2] |
Gasket
|
|
| 4. |
74033
|
[1] |
Hollow screw
|
|
| 5. |
957171
|
[2] |
Gasket
|
|
| 6. |
860551
|
[1] |
Air hose
|
Smoke limiter-cylinder head, See group 2A
|
| 7. |
945460
|
[1] |
Tube
|
L=330mm
|
| 8. |
840482
|
[1] |
Catch
|
|
| 9. |
840312
|
[3] |
Screw
|
|
| 10. |
875771
|
[1] |
Regulator kit
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
943760
|
[1] |
Snap ring
|
|
| 15. |
840433
|
[1] |
Thrust washer
|
|
| 16. |
840658
|
[1] |
Sliding sleeve
|
|
| 17. |
840659
|
[1] |
Control arm
|
|
| 18. |
840660
|
[1] |
Ball screw
|
|
| 19. |
963917
|
[1] |
Hexagon nut
|
|
| 20. |
840661
|
[1] |
Ball
|
|
| 21. |
840451
|
[1] |
Spring
|
|
| 22. |
840470
|
[1] |
Nipple
|
|
| 23. |
840973
|
[1] |
Spring
|
|
| 24. |
858005
|
[1] |
Spring
|
|
| 25. |
840975
|
[1] |
Sleeve
|
|
| 26. |
840974
|
[1] |
Nipple
|
|
| 27. |
840449
|
[1] |
Regulator spring
|
|
| 28. |
840435
|
[1] |
Cap
|
|
| 29. |
955974
|
[1] |
O-ring
|
|
| 30. |
840436
|
[1] |
Intermediate lever
|
|
| 31. |
840663
|
[1] |
Stop arm
|
|
| 32. |
955979
|
[1] |
O-ring
|
|
| 33. |
840666
|
[1] |
Intermediate lever
|
See group 2D
|
| 34. |
840812
|
[1] |
Retaining ring
|
|
| 35. |
840801
|
[1] |
Spring
|
|
| 36. |
840667
|
[1] |
Intermediate lever
|
See group 2D
|
| 37. |
963105
|
[1] |
Lock nut
|
|
| 38. |
859053
|
[1] |
Gasket
|
|
| 39. |
955272
|
[4] |
Hexagon screw
|
|
| 40. |
949607
|
[4] |
Spring washer
|
|
| 41. |
955272
|
[3] |
Hexagon screw
|
|
| 42. |
955781
|
[3] |
Hexagon nut
|
|
| 43. |
858681
|
[1] |
Link rod
|
|
| 44. |
840582
|
[1] |
Control rod
|
|
| 45. |
860540
|
[1] |
Smoke limiter
|
|
| 46. |
|
|
|
|
| 47. |
|
|
|
|
| 48. |
|
|
|
|
| 49. |
|
|
|
|
| 50. |
|
|
|
|
| 51. |
|
|
|
|
| 52. |
|
|
|
|
| 53. |
957178
|
[1] |
Gasket
|
|
| 54. |
860537
|
[1] |
Diaphragm
|
|
| 55. |
|
|
|
|
| 56. |
|
|
|
|
| 57. |
925053
|
[1] |
O-ring
|
|
| 58. |
956097
|
[4] |
Cross recessed screw
|
|
| 59. |
940312
|
[1] |
Plug
|
|
