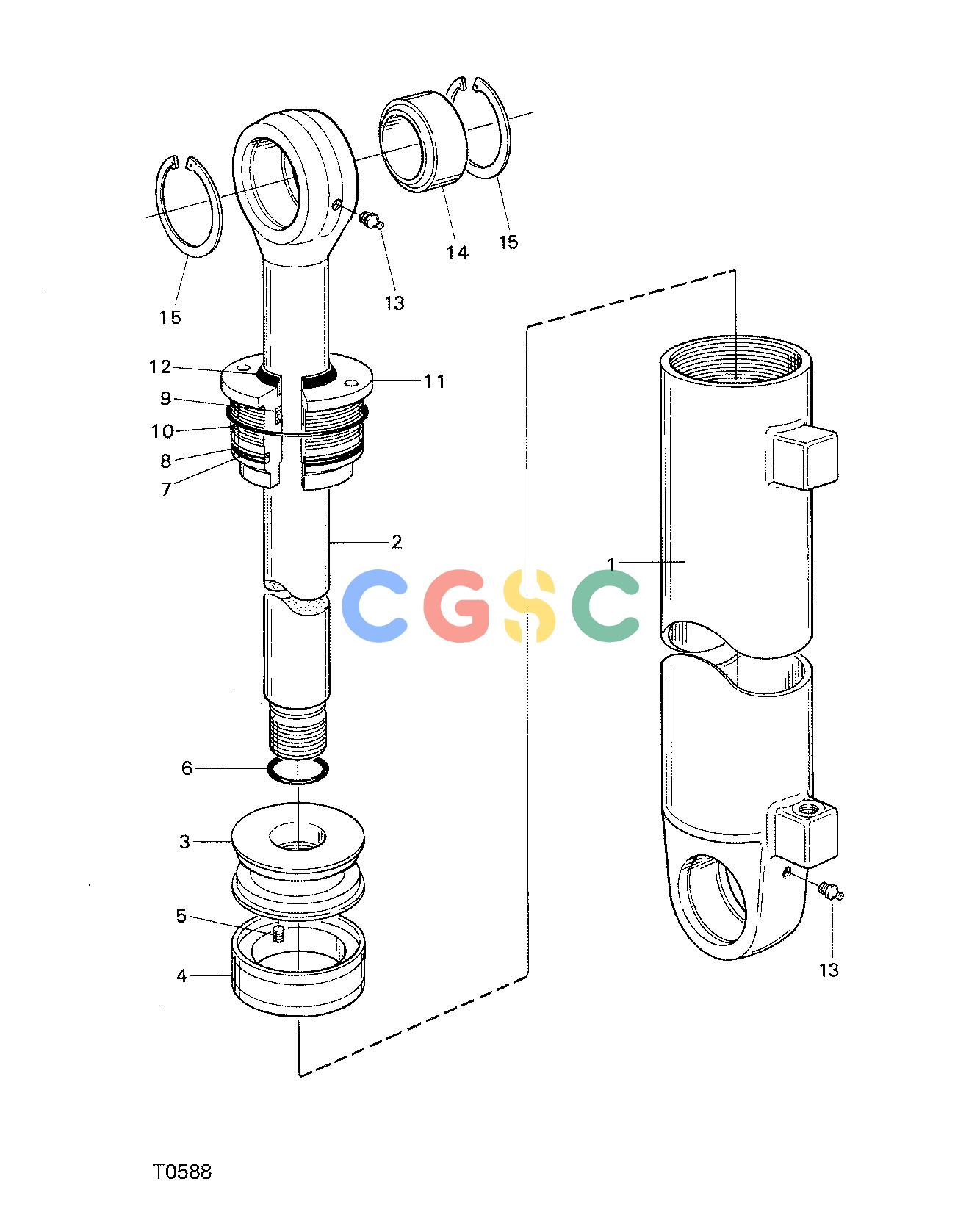

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE CYLINDER F042685 11 40 T0588 [T0588]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F014647
|
[1] |
Cylinder
|
|
| 1. |
F024872
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F024873
|
[1] |
PISTON ROD
|
|
| 3. |
F011469
|
[1] |
Piston
|
|
| 4. |
F015226
|
[1] |
Seal
|
|
| 5. |
F008146
|
[1] |
STOP SCREW
|
|
| 6. |
F005637
|
[1] |
O-Ring
|
|
| 7. |
F003294
|
[1] |
O-Ring
|
|
| 8. |
F003766
|
[1] |
Back-Up Ring
|
|
| 9. |
F015230
|
[1] |
Seal
|
|
| 10. |
F015232
|
[1] |
O-Ring
|
|
| 11. |
F011472
|
[1] |
Lock
|
|
| 12. |
F011473
|
[1] |
Scraper
|
|
| 13. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 14. |
F003820
|
[2] |
SPHERICAL BEARING
|
|
| 15. |
F003373
|
[4] |
CIRCLIP
|
|
| |
F019061
|
[1] |
Seal Kit
|
|
