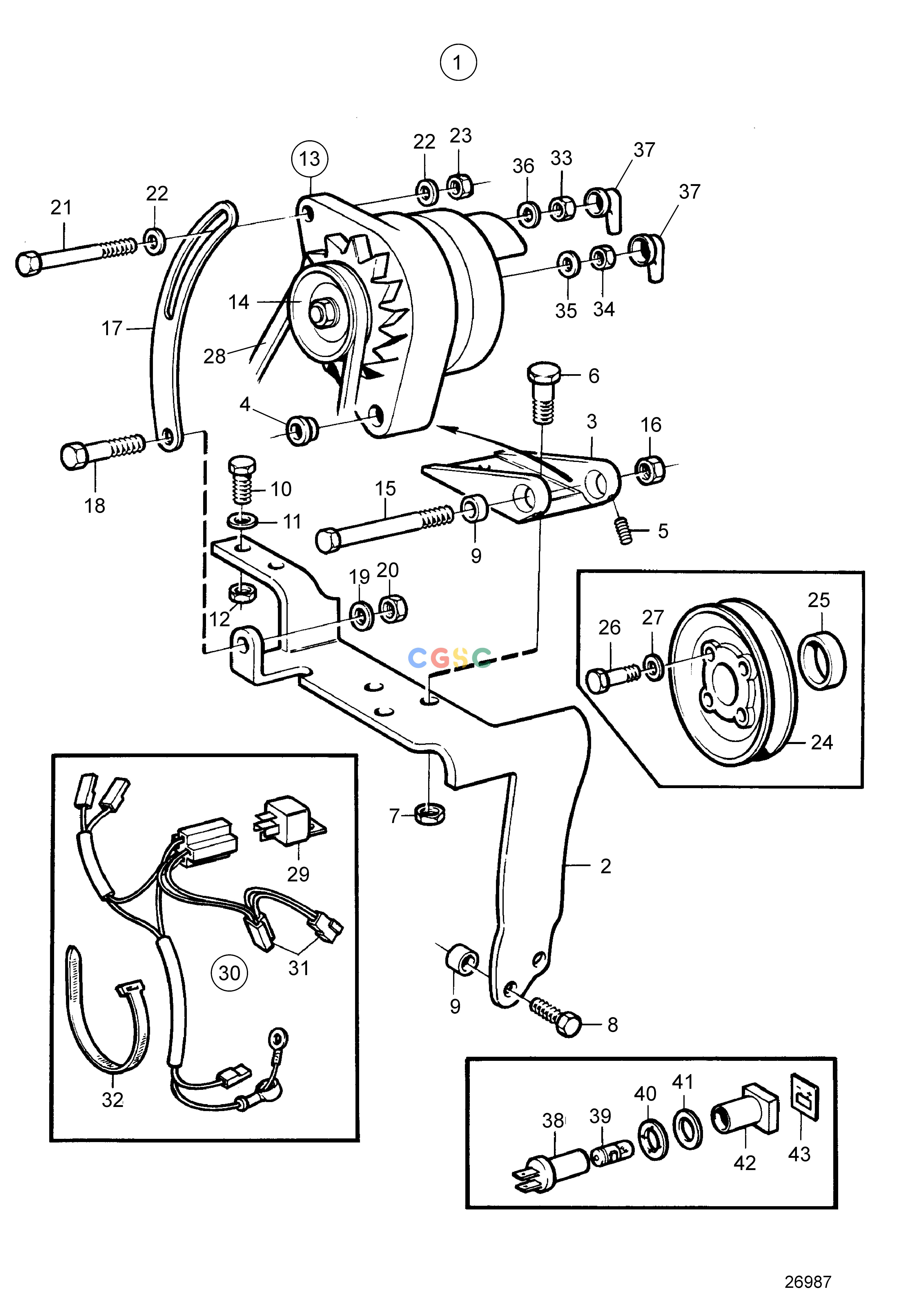

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentAlternator KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828944
|
[1] |
Alternator kit
|
For 12 voltage electric system
|
| 2. |
858539
|
[1] |
Alternator bracket
|
|
| 3. |
859272
|
[1] |
Bracket
|
|
| 4. |
859273
|
[2] |
Rubber bushing
|
|
| 5. |
967323
|
[2] |
Set screw
|
|
| 6. |
960142
|
[3] |
Washer
|
|
| 7. |
963106
|
[3] |
Lock nut
|
|
| 8. |
970948
|
[2] |
Hexagon screw
|
(955318)
|
| 9. |
911262
|
[1] |
Spacer
|
|
| 10. |
970954
|
[2] |
Hexagon screw
|
|
| 11. |
859274
|
[2] |
Washer
|
|
| 12. |
971089
|
[2] |
Lock nut
|
(963107)
|
| 13. |
858838
|
[1] |
Alternator
|
For 12 voltage electric system., 14V 50A, early type
|
| 13. |
872018
|
[1] |
Alternator
|
For 12 voltage electric system., 14V 50A, late type
|
| 13. |
|
|
|
See group 3
|
| 14. |
841811
|
[1] |
Pulley
|
|
| 15. |
973442
|
[1] |
Screw
|
|
| 16. |
963106
|
[1] |
Lock nut
|
|
| 17. |
840044
|
[1] |
Tensioner
|
|
| 18. |
940142
|
[1] |
Hexagon screw
|
|
| 19. |
941907
|
[1] |
Spring washer
|
|
| 20. |
955782
|
[1] |
Hexagon nut
|
|
| 21. |
955298
|
[1] |
Hexagon screw
|
|
| 22. |
976944
|
[2] |
Washer
|
|
| 23. |
963106
|
[1] |
Lock nut
|
|
| 24. |
840794
|
[1] |
Pulley, crankshaft
|
|
| 25. |
858048
|
[1] |
Bracket
|
|
| 26. |
955300
|
[4] |
Hexagon screw
|
|
| 27. |
941907
|
[4] |
Spring washer
|
|
| 28. |
966696
|
[1] |
V-belt
|
|
| 29. |
1324492
|
[1] |
Relay
|
|
| 30. |
838542
|
[1] |
Cable block
|
|
| 31. |
|
|
|
See group 3
|
| 32. |
948211
|
[1] |
Cable tie
|
|
| 33. |
955781
|
[1] |
Hexagon nut
|
|
| 34. |
955780
|
[1] |
Hexagon nut
|
|
| 35. |
941905
|
[1] |
Spring washer
|
|
| 36. |
941906
|
[1] |
Spring washer
|
|
| 37. |
842150
|
[2] |
Protective hat
|
|
| 38. |
808175
|
[1] |
Bulb socket
|
|
| 39. |
19923
|
[1] |
Bulb
|
|
| 40. |
967583
|
[1] |
Retainer
|
|
| 41. |
829714
|
[1] |
Sealing ring
|
|
| 42. |
838455
|
[1] |
Retainer
|
|
| 43. |
838457
|
[1] |
Symbol strip
|
|
