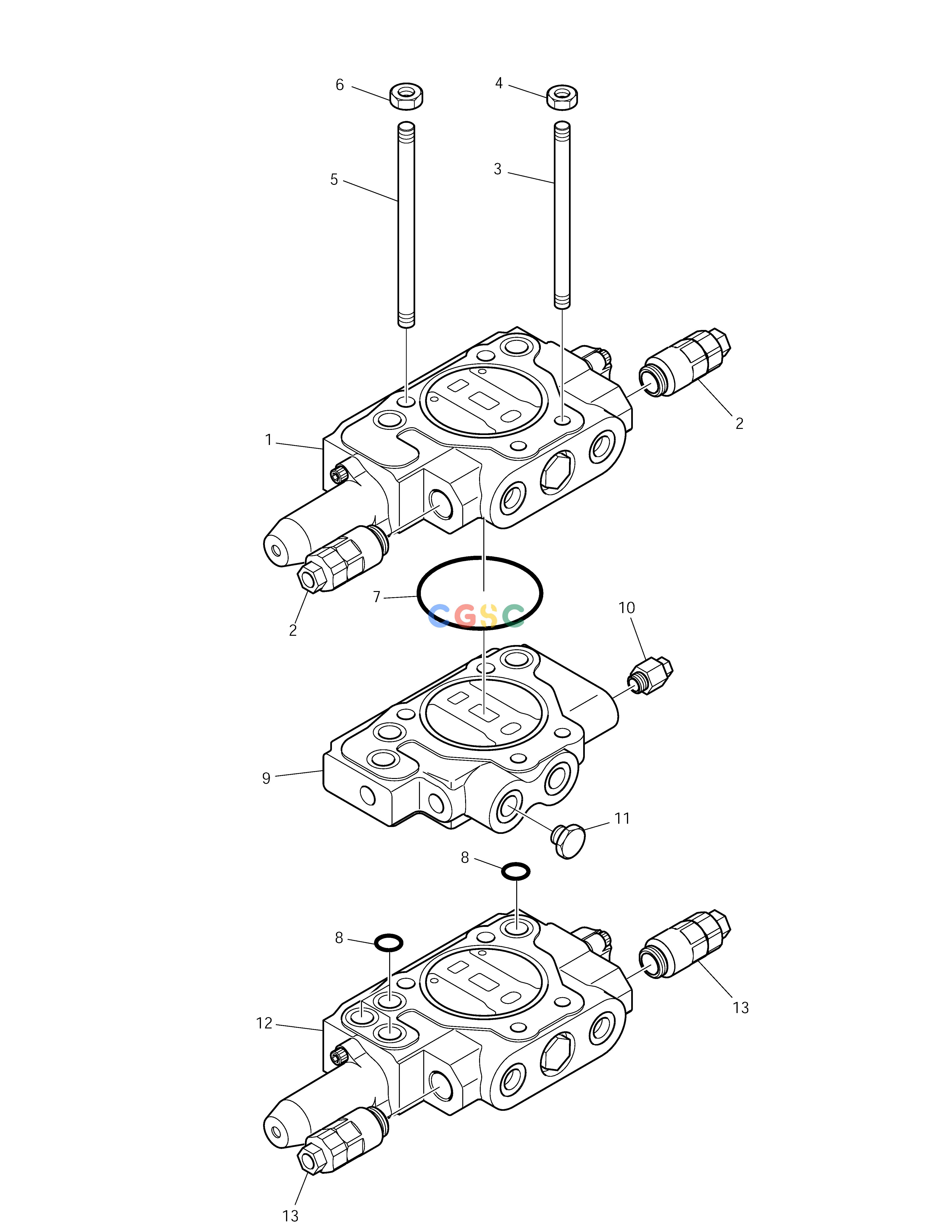

斗山零件查询CONTROL VALVE - ROTATING(ARTI) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
846 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1013539A
|
[1] |
CONTROL VALVE(ARTI-ROTATING)
|
|
| 1. |
K9004514
|
[1] |
SPOOL SECTION ASS'Y
|
|
| 10. |
K9004515
|
[1] |
RELIEF VALVE
|
|
| 11. |
181-00563
|
[1] |
PLUG ASS`Y
|
|
| 12. |
K9004517
|
[1] |
SPOOL SECTION ASS'Y
|
|
| 13. |
420-00258
|
[2] |
VALVE;OVERLOAD RELIEF
|
|
| 2. |
420-00258
|
[2] |
VALVE;OVERLOAD RELIEF
|
|
| 3. |
K9004519
|
[2] |
ROD;TIE
|
|
| 4. |
K9001075
|
[2] |
NUT
|
|
| 5. |
K9004522
|
[2] |
ROD;TIE
|
|
| 6. |
K9001077
|
[2] |
NUT
|
|
| 7. |
S8011001
|
[1] |
. O-RING
|
|
| 8. |
180-00403
|
[4] |
. O-RING
|
|
| 9. |
K9004516
|
[1] |
INLET SECTION ASS`Y
|
|
