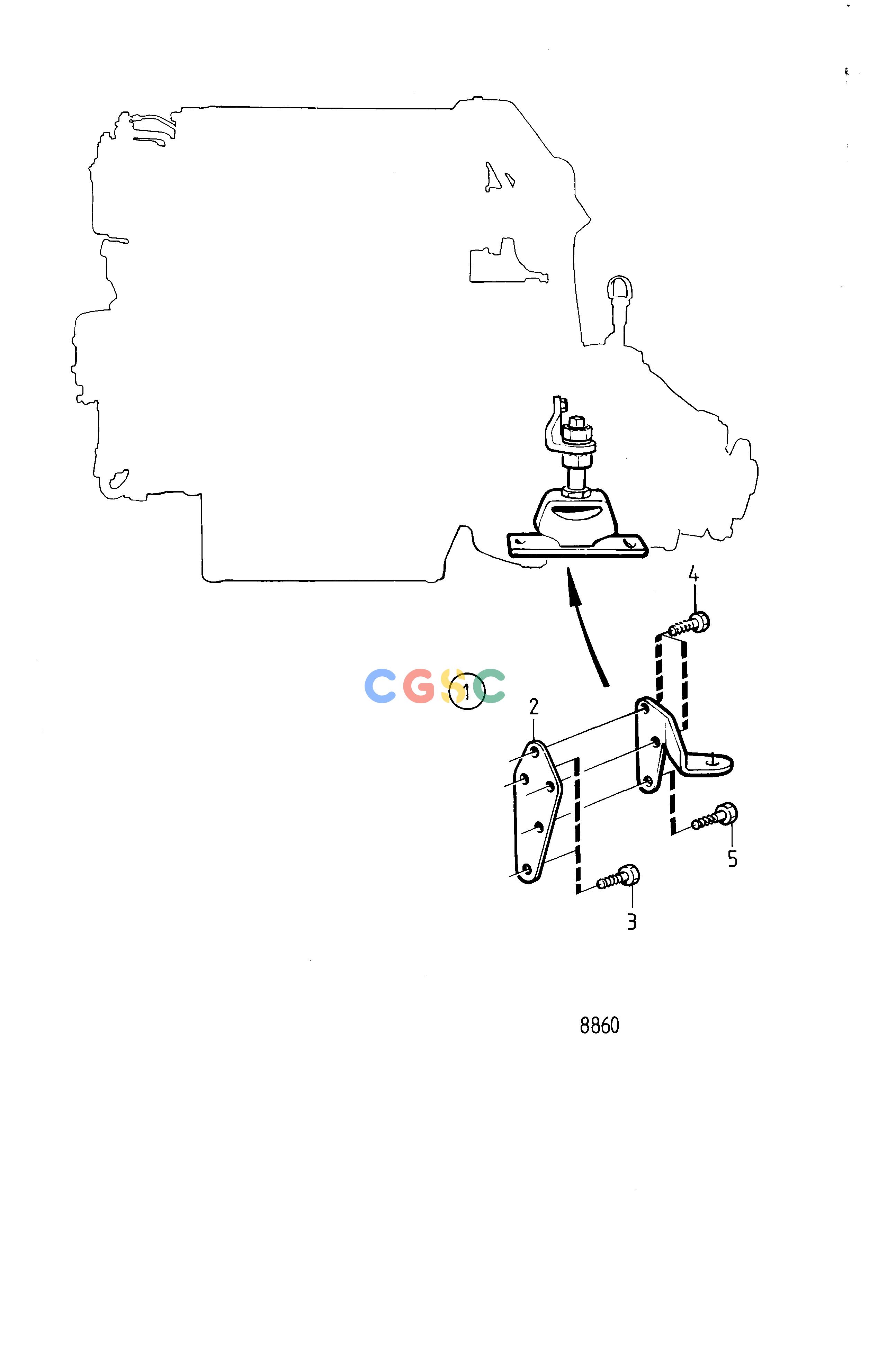

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentBracket Kit, Engine SuspensionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858566
|
[1] |
Bracket kit
|
|
| 2. |
858550
|
[1] |
Anchorage
|
P
|
| 2. |
858551
|
[1] |
Anchorage
|
S.B
|
| 3. |
970948
|
[4] |
Hexagon screw
|
(955318) L=30mm
|
| 4. |
970949
|
[4] |
Hexagon screw
|
(955319) SN-19215
|
| 4. |
|
|
|
L=40mm
|
| 4. |
970950
|
[4] |
Hexagon screw
|
(955320) SN19216-
|
| 5. |
970952
|
[2] |
Hexagon screw
|
(955322) SN-19215
|
| 5. |
|
|
|
L=60mm
|
| 5. |
970954
|
[2] |
Hexagon screw
|
(955324) SN19216-
|
