卡特零件查询（725） 274-8879: KIT-FLOW CONTROL VALVE
广数供应链运营团队, 14 02月, 2025，浏览：
740 次

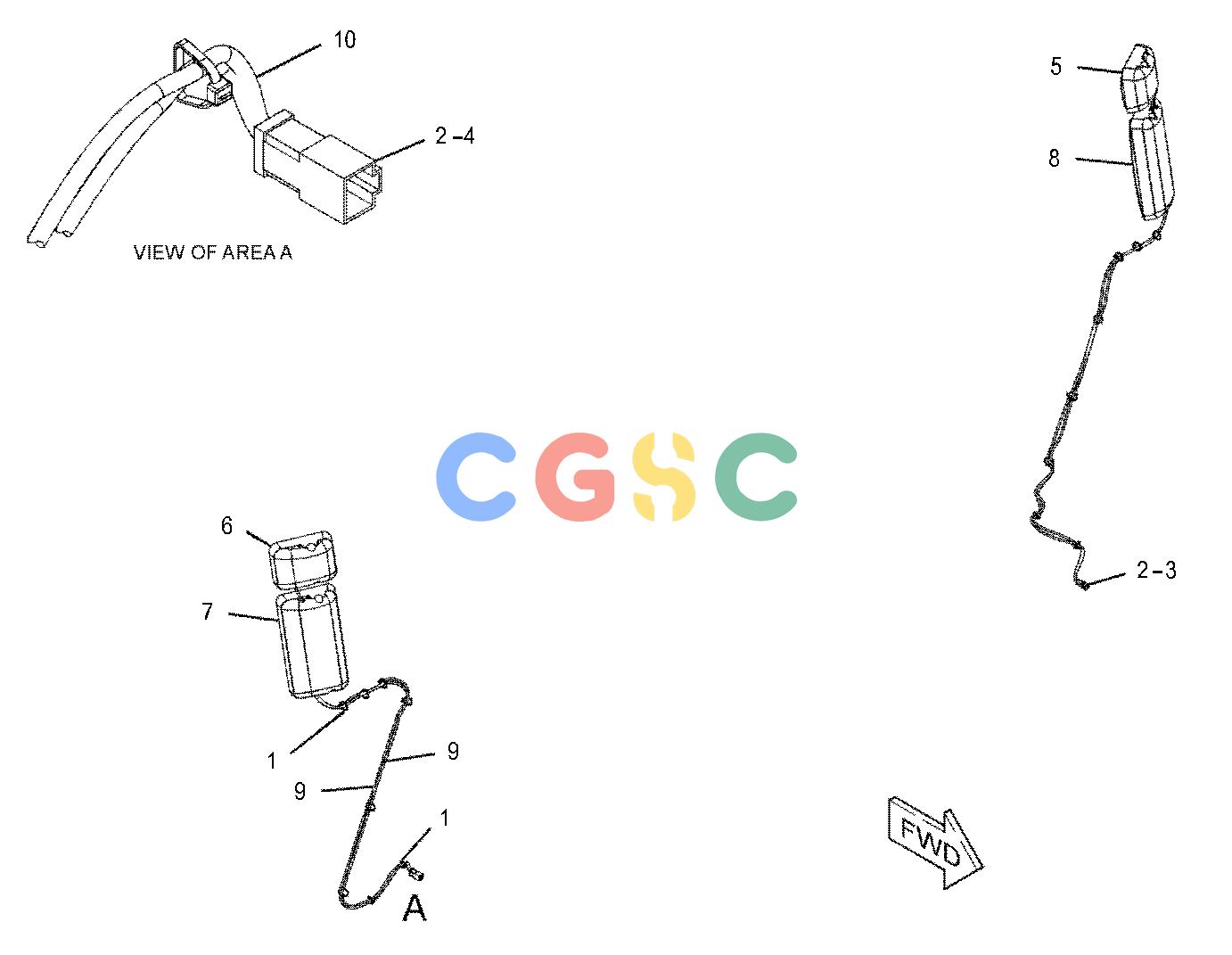

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 239-5611 | [1] | BRACKET AS | |
| | 242-0583 | [1] | BRACKET AS | |
| | 241-7692 | [1] | HARNESS AS-WIRING(VOLTAGE CONVERTER) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 7N-7779 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 7N-7780 | [4] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 9G-3670 | [1] | HOUSING-PLUG | |
| | 9G-3676 | [1] | HOUSING-RECEPTACLE | |
| | 9G-3695 | [6] | PLUG-SEAL | |
| | 9W-0844 | [7] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| | 241-7693 | [1] | HARNESS AS-POWER(AIR CONDITIONER, HEATER CONT) | |
| | 7N-7779 | [2] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 7N-7780 | [1] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 9G-3670 | [1] | HOUSING-PLUG | |
| | 9G-3695 | [4] | PLUG-SEAL | |
| | 100-6674 | [3] | SEAL-CONNECTOR | |
| | 239-9368 | [1] | RESISTOR AS | |
| | 241-5670 | [1] | VALVE AS-WATER(HEATER) | |
| | | | |
| | 244-2477 | [1] | BRACKET | |
| | 340-7160 | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT)(AIR CONDITIONER, HEATER) | |
| | 197-7499M | [2] | BOLT(M4X0.7X25-MM) | |
| | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
