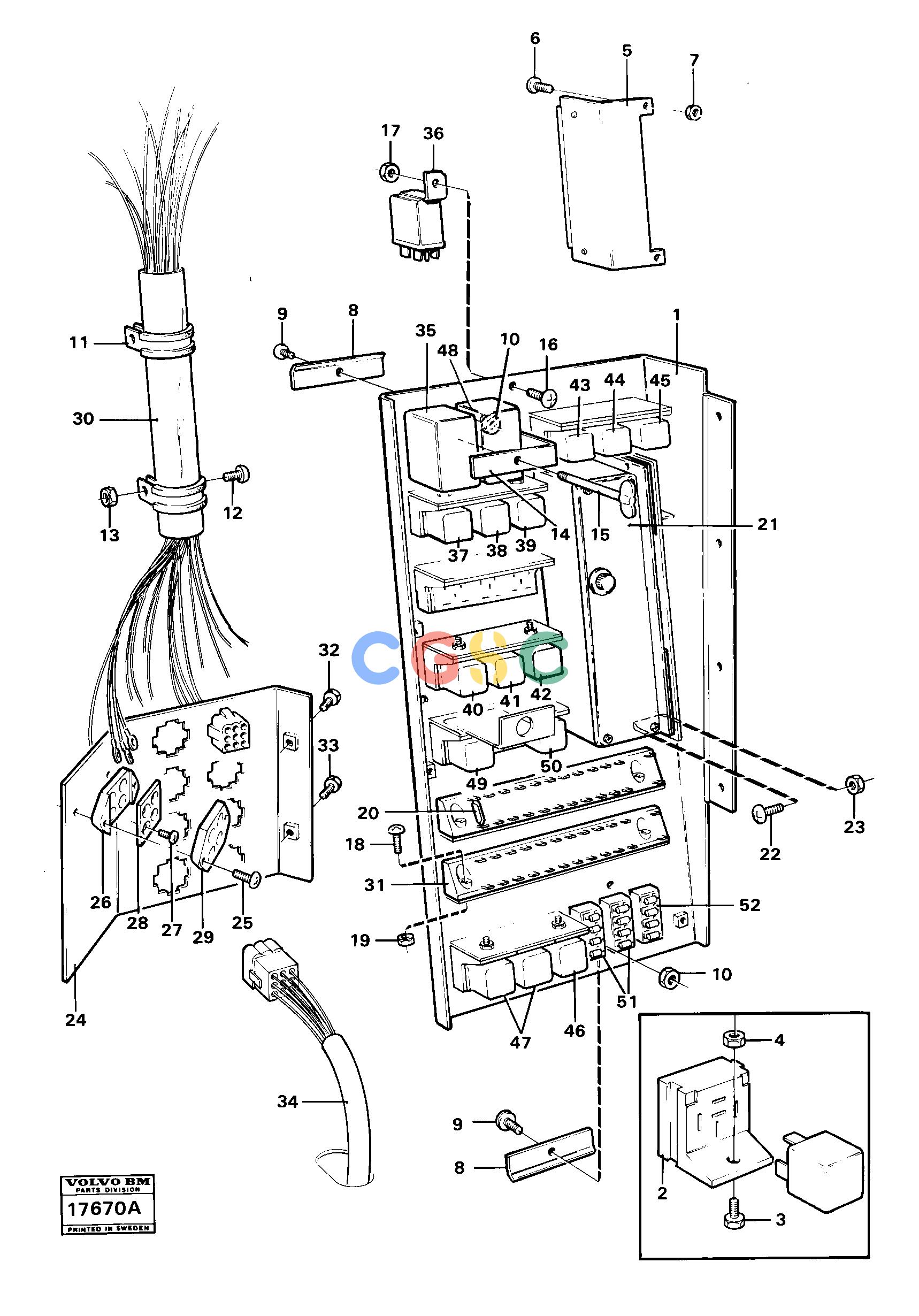

沃尔沃零件查询4500 Distribution box prod nr 33310,333144500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
737 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4803683
|
[0001] |
Coupling piece
|
|
| 47. |
VOE4786690
|
[0002] |
Relay
|
RE 12,13
|
| 48. |
VOE1593964
|
[0001] |
Relay
|
RT 1
|
| 49. |
VOE4803319
|
[0001] |
Delay relay
|
RT 3
|
| 50. |
VOE4786690
|
[0001] |
Relay
|
RE 15
|
| 51. |
VOE4803258
|
[0002] |
Diode unit
|
DI 1,DI 2,
|
| |
|
[0001] |
Contact
|
|
| |
VOE4803274
|
[0008] |
Diode
|
|
| 52. |
VOE4803258
|
[0001] |
Diode unit
|
DI 3
|
| |
VOE4803274
|
[0004] |
Diode
|
|
| 6. |
VOE956060
|
[0002] |
Cross recessed screw
|
|
| 7. |
VOE955779
|
[0002] |
Hexagon nut
|
|
| 8. |
|
[0004] |
Attaching plate
|
|
| 9. |
VOE956076
|
[0004] |
Cross recessed screw
|
|
| 1. |
|
[0001] |
Plate
|
|
| 10. |
VOE955780
|
[0004] |
Hexagon nut
|
|
| 11. |
VOE952635
|
[0002] |
Clamp
|
|
| 12. |
VOE956076
|
[0002] |
Cross recessed screw
|
|
| 13. |
VOE955780
|
[0002] |
Hexagon nut
|
|
| 14. |
|
[0001] |
Attaching plate
|
|
| 15. |
|
[0001] |
Wing screw
|
|
| 16. |
VOE956075
|
[0001] |
Cross recessed screw
|
|
| 17. |
VOE955780
|
[0001] |
Hexagon nut
|
|
| 18. |
VOE956080
|
[0004] |
Cross recessed screw
|
|
| 19. |
VOE955780
|
[0004] |
Hexagon nut
|
|
| 2. |
VOE13946556
|
[0007] |
Relay socket
|
|
| 20. |
VOE942785
|
[0002] |
Fuse
|
16 A
|
| |
VOE942545
|
[0010] |
Fuse
|
5 A
|
| |
VOE7011433
|
[0015] |
Fuse
|
8 A
|
| 21. |
VOE4896133
|
[0001] |
Control Unit
|
|
| |
VOE4896134
|
[0001] |
Control Unit
|
|
| 22. |
VOE956060
|
[0002] |
Cross recessed screw
|
|
| 23. |
VOE955779
|
[0002] |
Hexagon nut
|
|
| 24. |
|
[0001] |
Plate
|
|
| 25. |
VOE956080
|
[0002] |
Cross recessed screw
|
|
| 26. |
VOE347714
|
[0001] |
Base plate
|
|
| 3. |
VOE955243
|
[0014] |
Hexagon screw
|
|
| 27. |
VOE956090
|
[0004] |
Cross recessed screw
|
|
| 28. |
VOE347715
|
[0001] |
Plate
|
|
| 29. |
VOE347716
|
[0001] |
Cover
|
|
| 30. |
VOE4937377
|
[0001] |
Cable harness
|
|
| 31. |
|
[0002] |
Fuse holder
|
|
| 32. |
VOE955269
|
[0001] |
Hexagon screw
|
|
| 33. |
VOE13955271
|
[0001] |
Screw
|
|
| 34. |
VOE4937381
|
[0001] |
Cable harness
|
|
| 35. |
VOE15048941
|
[0001] |
Flasher unit
|
RF 1
|
| 36. |
VOE4787783
|
[0001] |
Relay
|
RT 2
|
| 4. |
VOE955780
|
[0014] |
Hexagon nut
|
|
| 37. |
VOE4786690
|
[0001] |
Relay
|
RE 1
|
| 38. |
VOE4786690
|
[0001] |
Relay
|
RE 2
|
| 39. |
VOE4786690
|
[0001] |
Relay
|
RE 3
|
| 40. |
VOE4786690
|
[0001] |
Relay
|
RE 7
|
| 41. |
VOE4786690
|
[0001] |
Relay
|
RE 8
|
| 42. |
VOE4786690
|
[0001] |
Relay
|
RE 9
|
| 43. |
VOE4786690
|
[0001] |
Relay
|
RE 10
|
| 44. |
VOE4786690
|
[0001] |
Relay
|
RE 11
|
| 45. |
VOE4786690
|
[0001] |
Relay
|
RE 14
|
| 46. |
VOE4786690
|
[0001] |
Relay
|
RE 16
|
