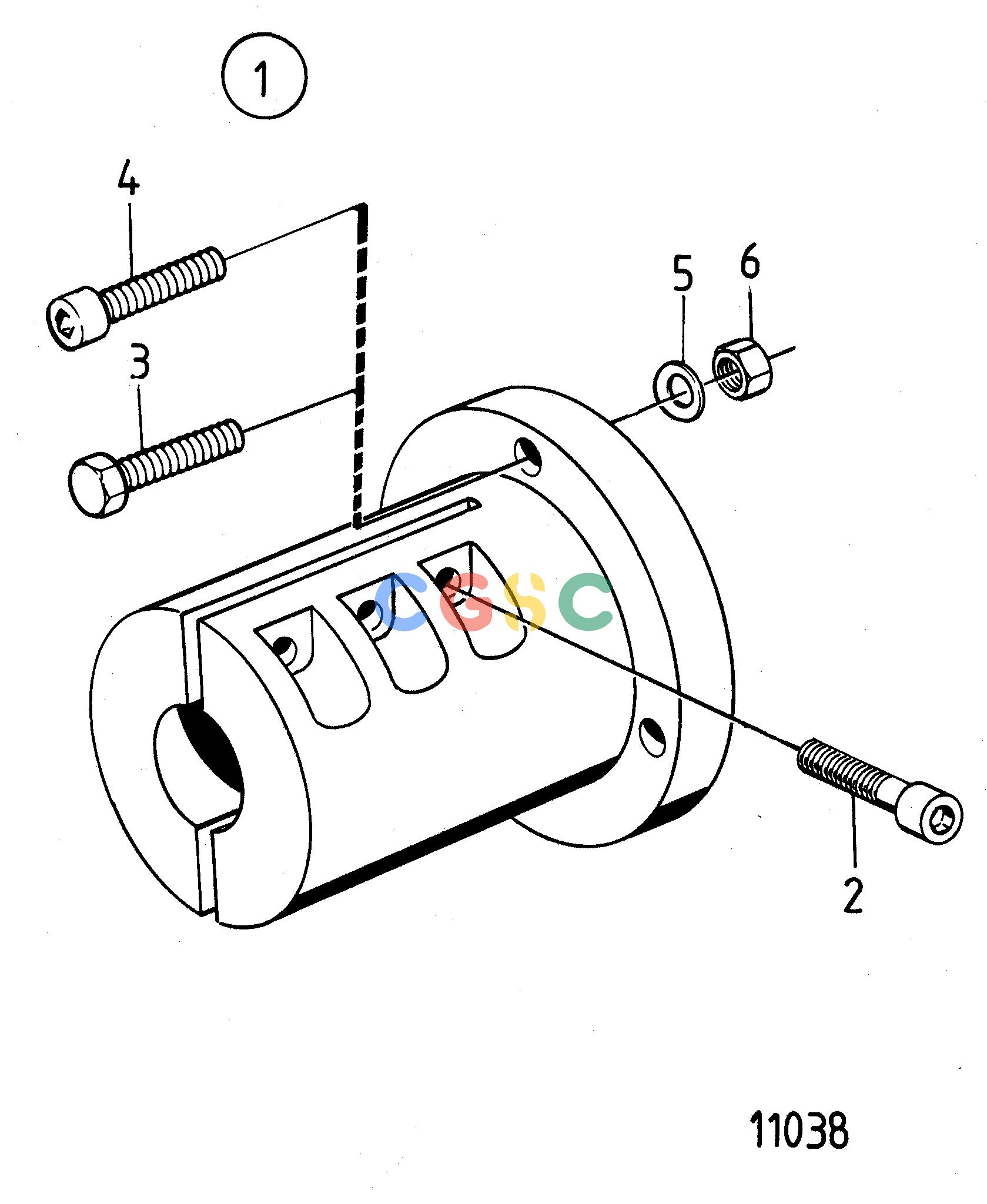

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentClamp Coupling Flange MS2B: 827924EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1037 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
827924
|
[1] |
Clamp coupling
|
25mm hole for propeller shaft.
|
| 2. |
949068
|
[6] |
Hex. socket screw
|
|
| 3. |
955319
|
[4] |
Hexagon screw
|
L=35mm
|
| 4. |
959239
|
[4] |
Hex. socket screw
|
L=30mm
|
| 5. |
941908
|
[4] |
Spring washer
|
|
| 6. |
955783
|
[4] |
Hexagon nut
|
|
