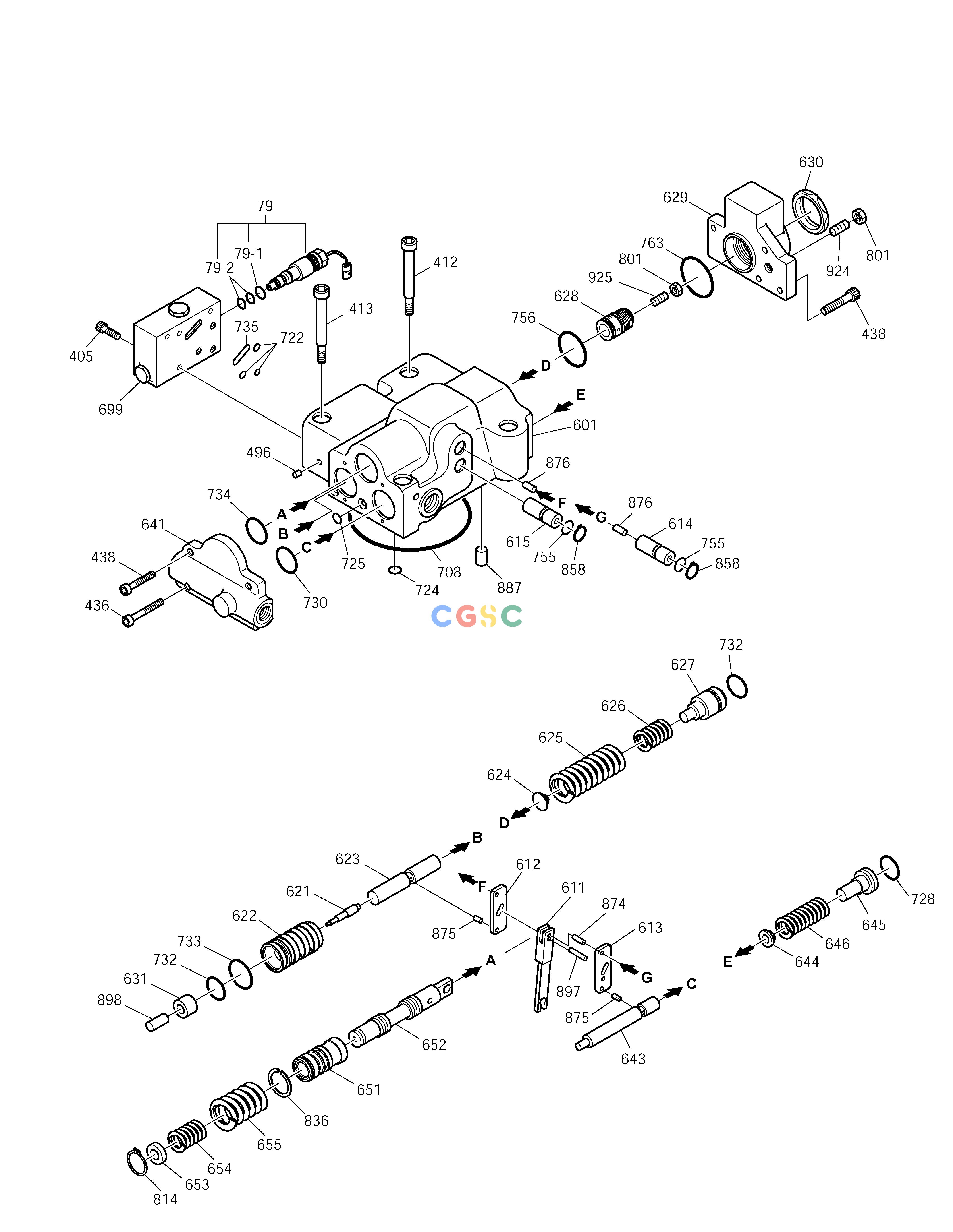

斗山零件查询REGULATOR-REAR DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
885 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9005448
|
[1] |
REGULATOR ASS'Y(REAR)
|
|
| 405. |
S2205661
|
[4] |
BOLT
|
|
| 412. |
S2209661
|
[2] |
BOLT
|
|
| 413. |
S2210071
|
[2] |
BOLT
|
|
| 436. |
S2205261
|
[2] |
BOLT
|
|
| 438. |
S2204861
|
[6] |
BOLT
|
|
| 496. |
NA00843
|
[5] |
PLUG
|
|
| 601. |
NA00342
|
[1] |
CASING
|
|
| 611. |
NA00584
|
[1] |
LEVER,FEED BACK
|
|
| 612. |
NA00581
|
[1] |
LEVER(1)
|
|
| 613. |
NA00582
|
[1] |
LEVER(2)
|
|
| 614. |
NA00886
|
[1] |
|
|
| 615. |
NA00865
|
[1] |
PLUG,ADJUST
|
|
| 621. |
NA00804
|
[1] |
PISTON,COMPEN
|
|
| 622. |
NA00338
|
[1] |
|
|
| 623. |
NA01002
|
[1] |
ROD;COMPEN
|
|
| 624. |
NA01217
|
[1] |
SPRING,SEAT
|
|
| 625. |
NA01210
|
[1] |
SPRING,OUTER
|
|
| 626. |
NA01205
|
[1] |
SPRING,INNER
|
|
| 627. |
NA01231
|
[1] |
SPRING;INNER
|
|
| 628. |
NA01052
|
[1] |
SCREW;ADJUST(C)
|
|
| 629. |
NA00393
|
[1] |
COVER(C)
|
|
| 630. |
NA00628
|
[1] |
NUT,LOCK
|
|
| 631. |
NA01146
|
[1] |
SLEEVE,PF
|
|
| 641. |
NA00403
|
[1] |
COVER,PILOT
|
|
| 643. |
NA00808
|
[1] |
PISTON;PILOT
|
|
| 644. |
NA01218
|
[1] |
SPRING,SEAT(Q)
|
|
| 645. |
NA00938
|
[1] |
RING,ADJUST(Q)
|
|
| 646. |
NA01211
|
[1] |
SPRING,PILOT
|
|
| 651. |
NA01145
|
[1] |
SLEEVE
|
|
| 652. |
NA01169
|
[1] |
SPOOL(A)
|
|
| 653. |
NA01217
|
[1] |
SPRING,SEAT
|
|
| 654. |
NA01216
|
[1] |
SPRING,RETURN
|
|
| 655. |
NA01219
|
[1] |
SPRING,SET
|
|
| 699. |
NA00352
|
[1] |
CASING;VAVLE
|
|
| 708. |
S8010755
|
[1] |
O-RING 1BG-75
|
|
| 722. |
S8000061
|
[3] |
O-RING
|
|
| 724. |
S8000085
|
[9] |
O-RING
|
|
| 725. |
S8000111
|
[1] |
O-RING
|
|
| 728. |
S8000181
|
[1] |
O-RING
|
|
| 730. |
S8000221
|
[1] |
O-RING
|
|
| 732. |
S8000161
|
[2] |
O-RING
|
|
| 733. |
S8000201
|
[2] |
O-RING
|
|
| 734. |
S8010251
|
[1] |
O-RING
|
|
| 735. |
S8002721
|
[1] |
O-RING
|
|
| 755. |
S8000111
|
[2] |
O-RING
|
|
| 756. |
S8000261
|
[2] |
O-RING
|
|
| 763. |
S8010351
|
[1] |
O-RING
|
|
| 79. |
K9001362
|
[1] |
VALVE;E.P.P.R
|
|
| 79-1. |
2180-1217D15
|
[1] |
. O-RING
|
|
| 79-2. |
2180-1217D13
|
[2] |
. O-RING
|
|
| 801. |
S4012533
|
[2] |
NUT
|
|
| 814. |
S6500100
|
[1] |
RING,SNAP
|
|
| 836. |
1.115-00366
|
[1] |
RING;STOP
|
|
| 858. |
S6510150
|
[2] |
RING,SNAP
|
|
| 874. |
1.123-00007
|
[1] |
PIN
|
|
| 875. |
NA00752
|
[2] |
PIN
|
|
| 876. |
NA00752
|
[2] |
PIN
|
|
| 887. |
1.123-00009
|
[1] |
PIN
|
|
| 897. |
NA00752
|
[1] |
PIN
|
|
| 898. |
NA00796
|
[1] |
PISTON
|
|
| 924. |
S3524008
|
[1] |
SCREW,SET
|
|
| 925. |
120-00199
|
[1] |
SCREW,ADJUST(Qi)
|
|
