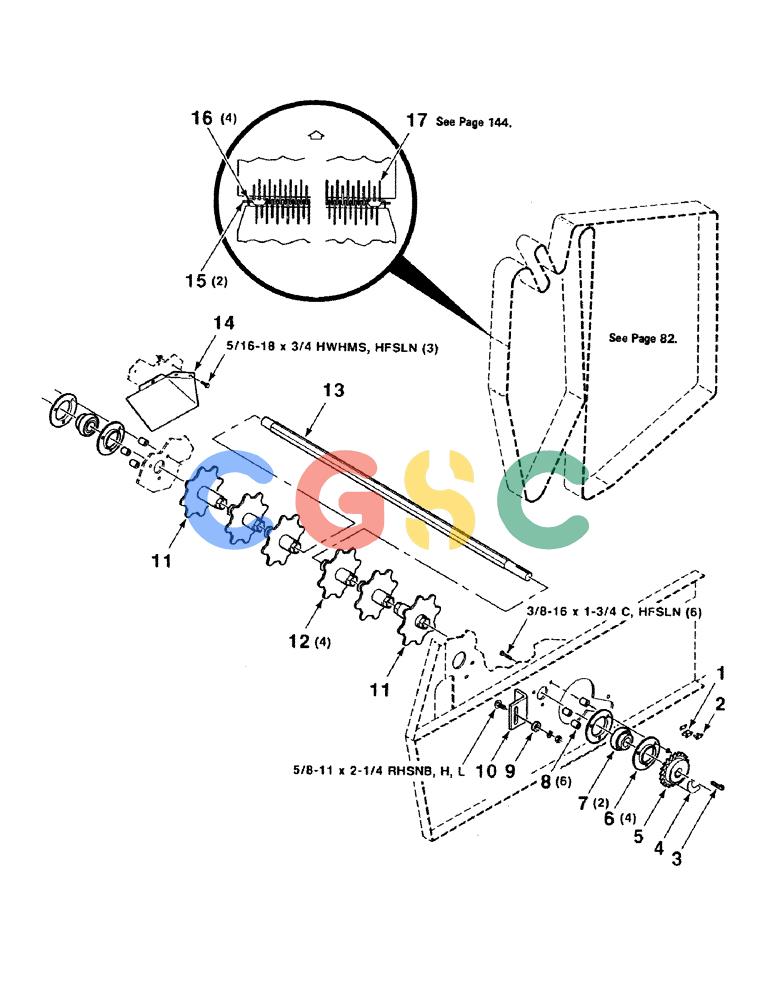

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (138) - POWERED RIENK KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
832 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50597
|
[1] |
Powered Rienk Kit Complete
|
|
| 1. |
47365
|
[1] |
LINK, CONNECTING
|
CAS
Link - Connector Superseded by part number: 241-1316
|
| 2. |
700711247
|
[1] |
LINK
|
CAS
- No. 60 Roller Chain Superseded by part number: 86595251
|
| 3. |
61952
|
[1] |
KEY
|
CAS
1/4 x 1-3/4 Gib Key Superseded by part number: 249-1
|
| 4. |
700711700
|
[1] |
DECAL
|
CAS
- Operational
|
| 5. |
85951
|
[1] |
SPROCKET ASSY.
|
CAS
Sprocket - 60B20 Tooth
|
| 6. |
51417
|
[4] |
PIPE
|
IH
- Bearing Superseded by part number: 617863R1, 617863R1, NLS
|
| 7. |
51292
|
[2] |
SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm
|
IH
- Spherical Superseded by part number: 84330041, 47508357
|
| 8. |
6869382
|
[6] |
SPACER
|
HFI
|
| 9. |
6229256
|
[1] |
SPACER
|
IH
|
| 10. |
700122813
|
[1] |
MOUNTING PARTS
|
HFI
Angle - Mounting, Idler
|
| 11. |
700126364
|
[2] |
DISC
|
HFI
Rienk - Outside Superseded by part number: 700133258
|
| 12. |
700125160
|
[4] |
DISC
|
CAS
Rienk - Inside Superseded by part number: 700133243
|
| 13. |
700125033
|
[1] |
SHAFT
|
IH
- Hex
|
| 14. |
700126369
|
[1] |
SHIELD
|
HFI
|
| 15. |
700710206
|
[2] |
PIN,1.73mm OD x 180mm L
|
L
- lacing
|
| 16. |
700707322
|
[4] |
LATCH ASSY.
|
L
Fastener
|
| 17. |
700707821
|
[1] |
BELT
|
CAS
Lacing Kit Superseded by part number: 9847138
|
| . . |
7701055
|
[6] |
LEVER,Hex, 3/8" - 16 x 1 3/4", Gr 5
|
NNA
3/8-16 x 1-3/4 C Superseded by part number: 413-628, 413-628, NLS
|
| . . |
7870173
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5
|
CAS
5/8-11 x 2-1/4 HRSNB Superseded by part number: 111-622
|
| . . |
7883325
|
[3] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 x 3/4 HWHMS Superseded by part number: 121-115
|
