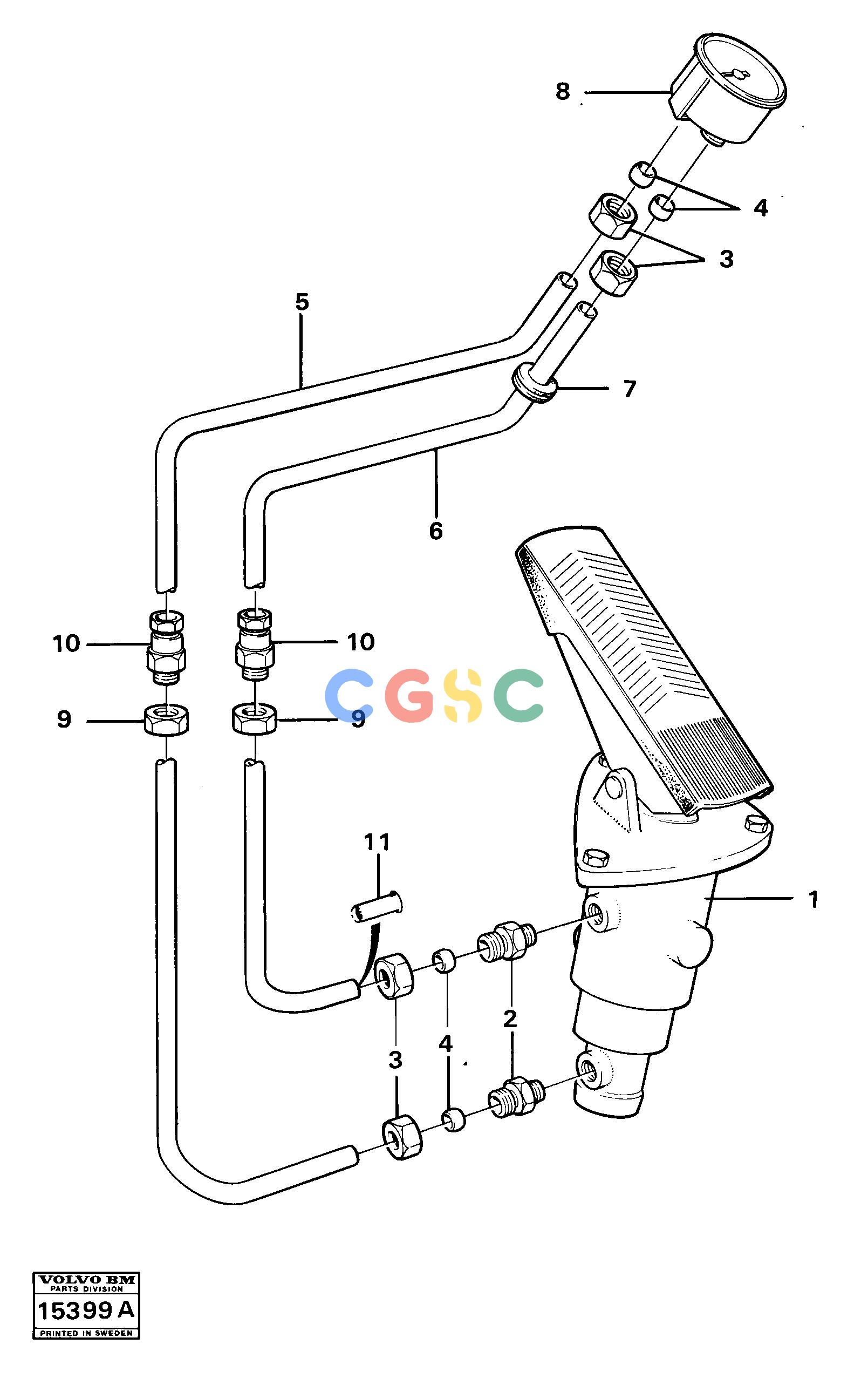

沃尔沃零件查询4500 Pressure gauge brake system4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
698 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE6225917
|
[1090] |
Plastic pipe
|
|
| 6. |
VOE6225917
|
[0970] |
Plastic pipe
|
|
| 7. |
VOE782571
|
[0001] |
Cover
|
|
| 8. |
VOE4803164
|
[0001] |
Pressure gauge
|
|
| 9. |
VOE881196
|
[0002] |
Nut
|
|
| 1. |
|
[0001] |
Brake valve
|
SEE GROUP 51
|
| 10. |
VOE881191
|
[0002] |
Fitting
|
|
| 11. |
VOE13949361
|
[0004] |
Sleeve
|
|
| |
|
|
None
|
33301 SER NO 1227-
|
| |
|
|
None
|
33302 SER NO 1277-
|
| 2. |
VOE942006
|
[0002] |
Nipple
|
|
| 3. |
VOE956981
|
[0004] |
Fitting nut
|
|
| 4. |
VOE13956967
|
[0004] |
Ferrule
|
|
