沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentControl for Side MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
318 次

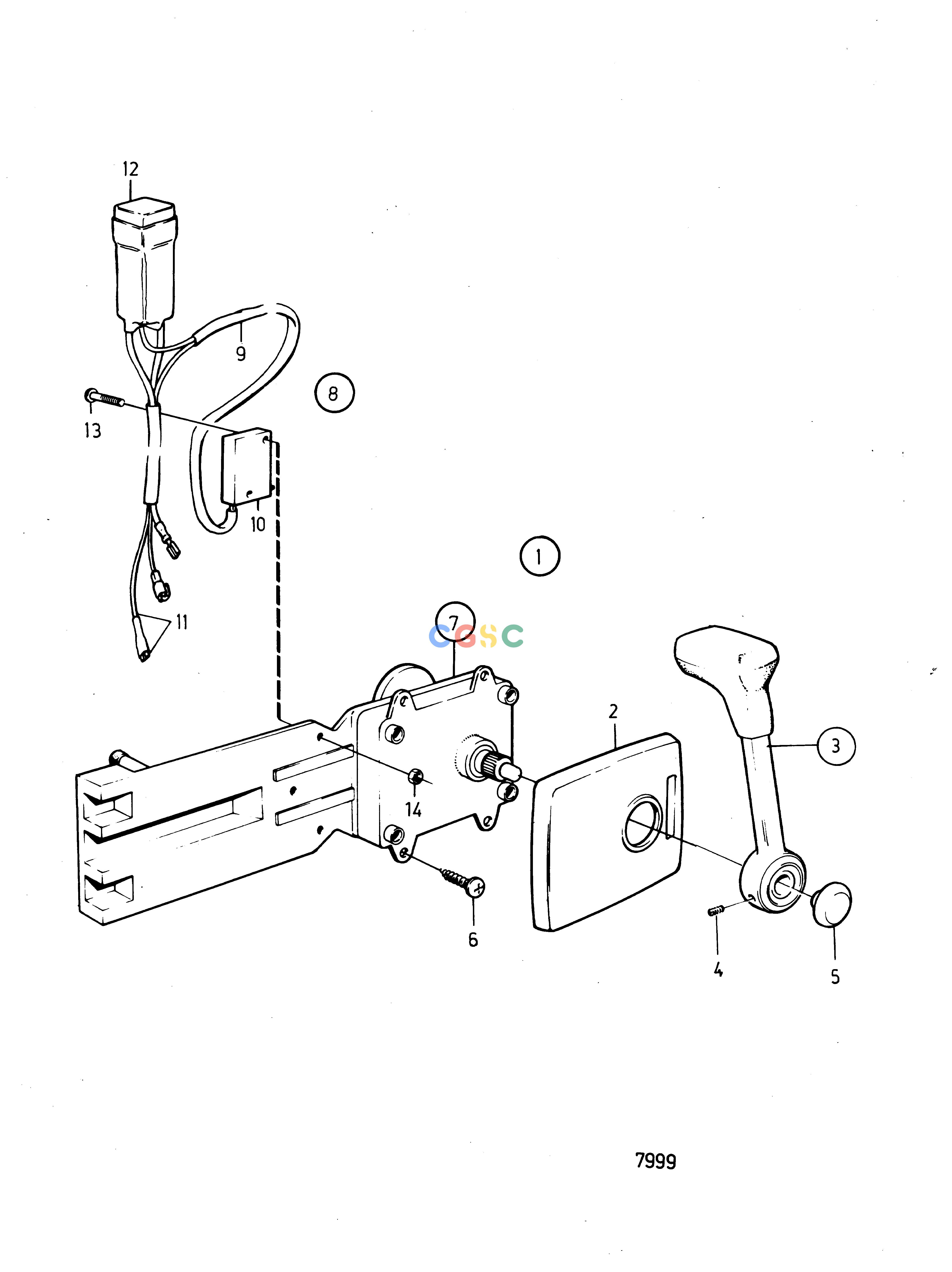

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140090
|
[1] |
Mounting kit
|
|
| 2. |
1140048
|
[1] |
Cover
|
(839518)
|
| 3. |
852347
|
[1] |
Hand lever
|
|
| 4. |
963678
|
[1] |
Hex. socket screw
|
|
| 5. |
853004
|
[1] |
Push button
|
|
| 6. |
955142
|
[4] |
Cross recessed screw
|
|
| 7. |
851601
|
[1] |
Control
|
|
| 8. |
855352
|
[1] |
Neutral position con
|
(839641)
|
| 9. |
839619
|
[1] |
Cable kit
|
|
| 10. |
850200
|
[1] |
Toggle switch
|
|
| 11. |
|
|
|
See group 3
|
| 12. |
876037
|
[1] |
Relay kit
|
|
| 13. |
946177
|
[2] |
Cross recessed screw
|
|
| 14. |
947536
|
[2] |
Hexagon nut
|
|
