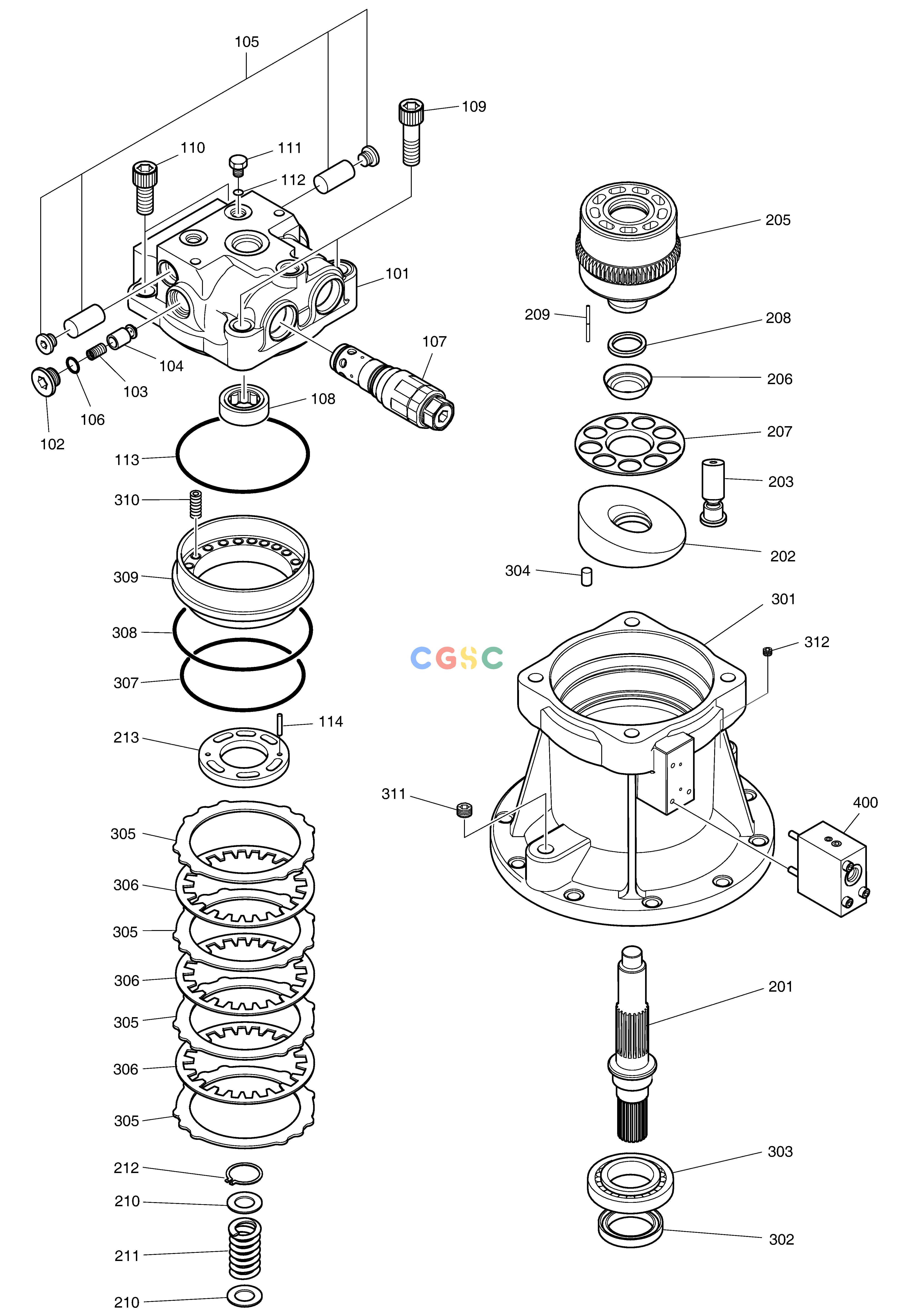

斗山零件查询SWING MOTOR DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K1000101KT
|
[1] |
SEAL KIT;SWING MOTOR
|
|
| -. |
K1000101
|
[1] |
MOTOR;SWING
|
170303-00001
|
| -. |
170303-00001
|
[1] |
|
|
| 101. |
K9001294
|
[1] |
CASING
|
|
| 102. |
K9001295
|
[2] |
PLUG
|
|
| 103. |
K9001296
|
[2] |
SPRING
|
|
| 104. |
K9001297
|
[2] |
PLUNGER
|
|
| 105. |
1.420-00016
|
[1] |
VALVE;SWING REACTIONLESS
|
|
| 106. |
S8000221
|
[2] |
O-RING
|
|
| 107. |
1.420-00109
|
[2] |
VALVE;RELIEF
|
410127-00122
|
| 107. |
410127-00122
|
[2] |
|
|
| 108. |
S6005040
|
[1] |
BEARING;BALL
|
|
| 109. |
S2221961
|
[2] |
BOLT;SOCKET
|
|
| 110. |
S2221471
|
[2] |
BOLT,SOCKET
|
|
| 111. |
2181-1950D1
|
[2] |
PLUG
|
|
| 112. |
S8000111
|
[2] |
O-RING
|
|
| 113. |
2180-1217D150
|
[1] |
O-RING
|
|
| 114. |
S5740730
|
[2] |
PIN;SPRING
|
|
| 201. |
K9001298
|
[1] |
SHAFT;DRIVE
|
K9001298A
|
| 201. |
K9001298A
|
[1] |
|
|
| 202. |
K9001299
|
[1] |
PLATE;SWASH
|
|
| 203. |
K9001300
|
[1] |
PISTON & SHOE ASS'Y
|
|
| 205. |
K9001302
|
[1] |
BLOCK;CYLINDER
|
|
| 205. |
K9001302A
|
[1] |
BLOCK,CYLINDER
|
|
| 206. |
K9001303
|
[1] |
BALL;THRUST
|
|
| 207. |
K9001304
|
[1] |
PLATE;RETAINER
|
|
| 208. |
K9001305
|
[1] |
COLLAR
|
|
| 209. |
K9001306
|
[5] |
ROLLER
|
|
| 209. |
900131-00029
|
[5] |
ROLLER
|
|
| 210. |
K9001308
|
[2] |
WASHER
|
|
| 211. |
K9001309
|
[1] |
SPRING
|
|
| 211. |
111601-00144
|
[1] |
SPRING
|
|
| 212. |
S6510500
|
[1] |
RING;SNAP
|
|
| 213. |
K9001310
|
[1] |
PLATE;VALVE
|
K9001310B
|
| 213. |
K9001310B
|
[1] |
PLATE,VALVE
|
|
| 301. |
K9001311
|
[1] |
CASING
|
|
| 302. |
1.180-00518
|
[1] |
OIL;SEAL
|
|
| 303. |
1.109-00029
|
[1] |
BEARING;BALL
|
|
| 304. |
1.123-00053
|
[1] |
PIN,PARALLEL
|
|
| 305. |
K9001312
|
[4] |
PLATE;SEPARATION
|
|
| 306. |
K9001313
|
[3] |
PLATE;FRICTION
|
|
| 307. |
2180-1217D147
|
[1] |
O-RING
|
|
| 308. |
2180-1217D149
|
[1] |
O-RING
|
|
| 309. |
K9001314
|
[1] |
PISTON;BRAKE
|
|
| 310. |
K9001315
|
[22] |
SPRING;BRAKE
|
|
| 311. |
2181-1116D5
|
[1] |
PLUG
|
|
| 311. |
2181-1116D2
|
[1] |
PLUG
|
|
| 312. |
2181-1116D2
|
[1] |
PLUG
|
|
| 312. |
2181-1116D4
|
[1] |
PLUG
|
|
| 400. |
420-00110
|
[1] |
VALVE;BRAKE
|
420-00110A
|
| 400. |
420-00110A
|
[1] |
VALVE;BRAKE
|
|
