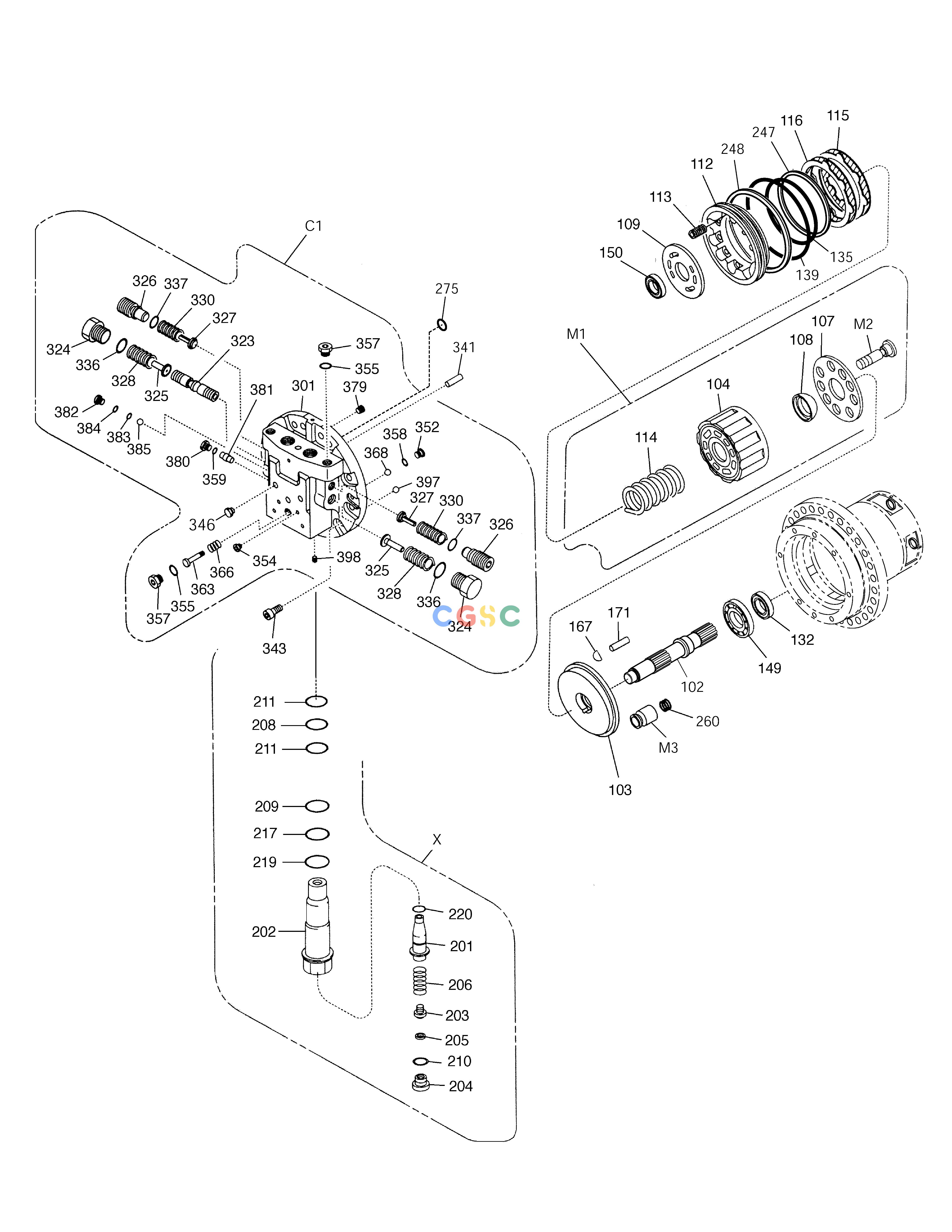

斗山零件查询TRAVEL MOTOR DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
209 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017674
|
[2] |
TRAVEL DEVICE
|
|
| -. |
K9004441
|
[1] |
TRAVEL MOTOR
|
|
| 102. |
K9004450
|
[1] |
SHAFT;MAIN
|
|
| 103. |
K9004451
|
[1] |
PLATE;SWASH
|
|
| 104. |
K9004446
|
[1] |
BLOCK;CYLINDER
|
|
| 107. |
K9004447
|
[1] |
PLATE;RETAINER
|
|
| 108. |
K9004448
|
[1] |
BALL;THRUST
|
|
| 109. |
K9004452
|
[1] |
PLATE;TIMING
|
|
| 112. |
K9004453
|
[1] |
PISTON;PARKING
|
|
| 113. |
1.131-00049
|
[12] |
SPRING
|
|
| 114. |
K9004449
|
[9] |
SPRING
|
|
| 115. |
412-00013
|
[2] |
PLATE,FRICTION
|
|
| 116. |
352-00014
|
[2] |
PLATE,SEPARATION
|
|
| 132. |
1.180-00521
|
[1] |
SEAL;OIL
|
|
| 135. |
S8001801
|
[1] |
O-RING
|
|
| 139. |
S8002101
|
[1] |
O-RING
|
|
| 149. |
1.109-00147
|
[1] |
BEARING;BALL
|
|
| 150. |
1.109-00026
|
[1] |
BEARING;BALL
|
|
| 167. |
1.540-00006
|
[1] |
PIVOT
|
|
| 171. |
1.123-00053
|
[2] |
PIN,PARALLEL
|
|
| 201. |
NA01288
|
[1] |
SUPPORT
|
|
| 202. |
1.425-00004
|
[1] |
SLEEVE
|
|
| 203. |
1.115-00010
|
[1] |
RETAINER;SPRING
|
|
| 204. |
1.181-00063
|
[1] |
PLUG
|
|
| 205. |
1.114-00016
|
[1] |
SHIM
|
|
| 206. |
1.131-00050
|
[1] |
SPRING
|
|
| 208. |
S8000161
|
[1] |
O-RING
|
|
| 209. |
S8000221
|
[1] |
O-RING
|
|
| 210. |
S8000181
|
[1] |
O-RING
|
|
| 211. |
S8060161
|
[2] |
RING;BACK-UP
|
|
| 217. |
S8060221
|
[1] |
RING;BACK UP
|
|
| 219. |
S8010291
|
[1] |
O-RING
|
|
| 220. |
1.180-00527
|
[1] |
SEAL;PISTON
|
|
| 247. |
S8061800
|
[1] |
RING;BACK UP
|
|
| 248. |
S8062100
|
[1] |
RING;BACK UP
|
|
| 260. |
1.131-00042
|
[1] |
SPRING
|
|
| 275. |
S8000081
|
[2] |
O-RING
|
|
| 301. |
NA00460
|
[1] |
. FLANGE;REAR
|
|
| 323. |
1.424-00024
|
[1] |
SPOOL
|
|
| 324. |
1.181-00059
|
[2] |
PLUG;FOR MAIN
|
|
| 325. |
1.416-00009
|
[2] |
STOPPER
|
|
| 326. |
1.181-00067
|
[2] |
PLUG;CHECK
|
|
| 327. |
1.420-00013
|
[2] |
VALVE;CHECK
|
|
| 328. |
1.131-00058
|
[2] |
SPRING;FOR MAIN
|
|
| 330. |
1.129-00006
|
[2] |
SPRING;CHECK
|
|
| 336. |
S8000321
|
[2] |
O-RING
|
|
| 337. |
S8002731
|
[2] |
O-RING
|
|
| 341. |
S5700891
|
[1] |
PIN;PARALLEL
|
|
| 343. |
S2221471
|
[12] |
BOLT,SOCKET
|
|
| 346. |
2181-1116D2
|
[2] |
PLUG
|
|
| 352. |
2181-1890D2
|
[2] |
PLUG
|
|
| 354. |
181-00318
|
[7] |
BOLT;SOCKER
|
|
| 355. |
S8000181
|
[2] |
O-RING
|
|
| 357. |
2181-1890D4
|
[2] |
PLUG
|
|
| 358. |
S8000111
|
[2] |
O-RING
|
|
| 359. |
S8000141
|
[2] |
O-RING
|
|
| 363. |
1.424-00041
|
[1] |
SPOOL;2 SPEED
|
|
| 366. |
1.131-00001
|
[1] |
SPRING
|
|
| 368. |
S6250182
|
[2] |
BALL
|
|
| 379. |
1.471-00001
|
[1] |
FILTER
|
|
| 380. |
2181-1890D3
|
[2] |
PLUG
|
|
| 381. |
2.409-00058
|
[1] |
PISTON
|
|
| 382. |
1.181-00062
|
[2] |
PLUG
|
|
| 383. |
S8000051
|
[2] |
O-RING
|
|
| 384. |
S8000081
|
[2] |
O-RING
|
|
| 385. |
1.148-00012
|
[2] |
BALL;STEEL
|
|
| 397. |
1.415-00005
|
[1] |
ORIFICE
|
|
| 398. |
2181-1116D1
|
[4] |
PLUG
|
|
| 900. |
K9004604
|
[1] |
SEAL KIT;TRAVEL MOTOR
|
|
| 901. |
1.180-00465
|
[1] |
SEAL KIT;RELIEF VALVE
|
|
| C1. |
K9004442
|
[1] |
REAR FLANGE ASS'Y
|
|
| C2. |
K9004443
|
[1] |
REAR FLANGE KIT
|
|
| M1. |
K9004444
|
[1] |
CYL. BLOCK & PISTON KIT
|
|
| M2. |
K9004445
|
[1] |
PISTON ASS'Y
|
|
| M3. |
1.409-00180
|
[1] |
PISTON KIT;2 SPEED
|
|
| X. |
1.420-00119
|
[2] |
RELIEF VALVE ASS'Y
|
|
