沃尔沃零件查询4500 Torque converter tillv nr 2601- Ht 1304500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
304 次

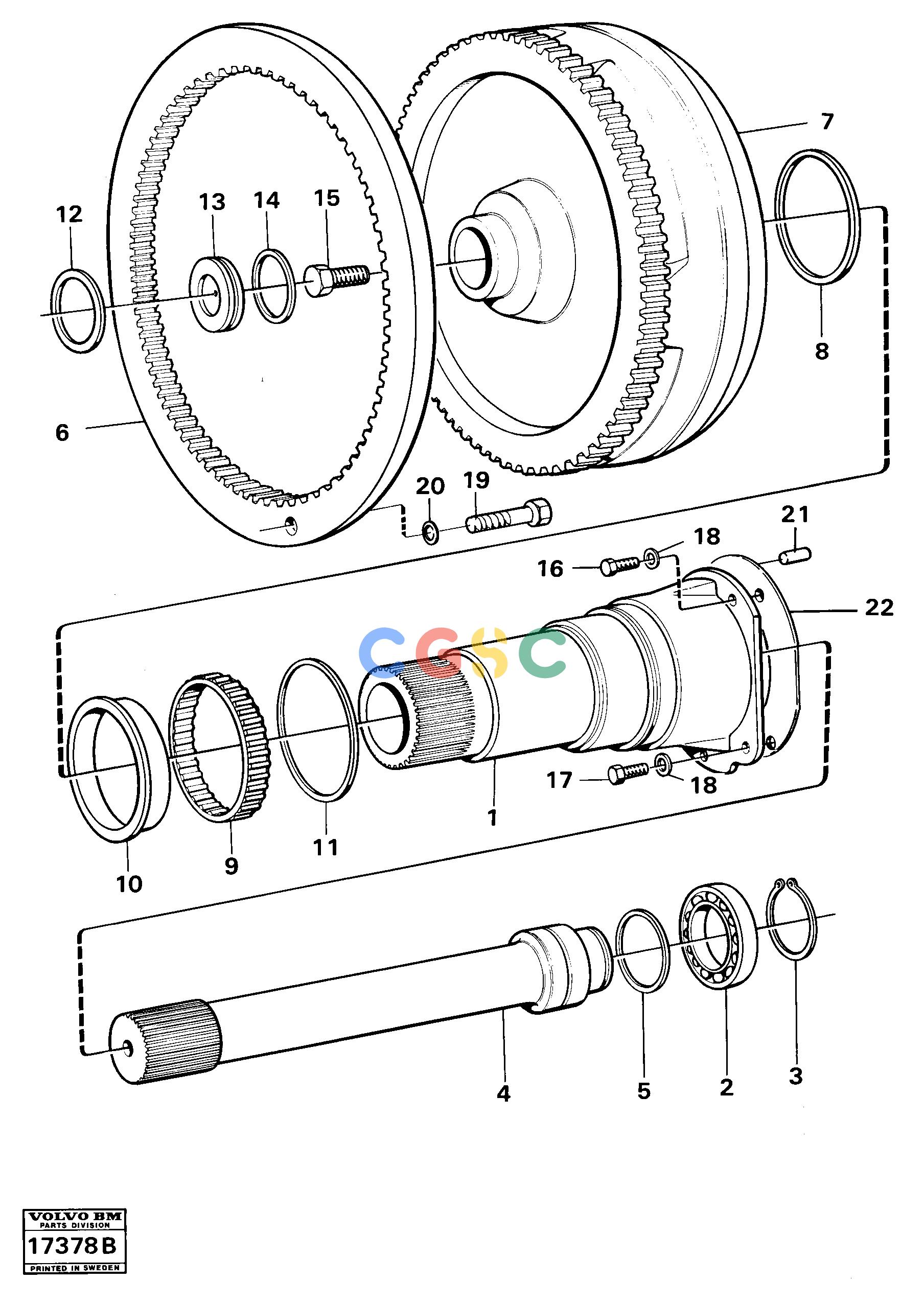

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE6212752
|
[0001] |
Shaft
|
|
| 5. |
VOE6212713
|
[0001] |
Lock ring
|
|
| 6. |
VOE6213603
|
[0001] |
Gear ring
|
|
| 7. |
|
[0001] |
Turbine roter
|
|
| 8. |
VOE6212715
|
[0001] |
Lock ring
|
|
| |
VOE4881020
|
[0001] |
Torque converter
|
|
| 9. |
VOE6212716
|
[0001] |
Needle bearing
|
|
| 10. |
VOE6212717
|
[0001] |
Retainer
|
|
| 11. |
VOE6212718
|
[0001] |
Lock ring
|
|
| 12. |
VOE914523
|
[0001] |
Retaining ring
|
|
| 13. |
|
[0001] |
Washer
|
|
| 14. |
VOE6212719
|
[0001] |
Sealing ring
|
|
| 15. |
VOE13970971
|
[0001] |
Hexagon screw
|
|
| 16. |
VOE60113094
|
[0003] |
Flange screw
|
|
| 17. |
VOE4720046
|
[0002] |
Screw
|
|
| 18. |
VOE13942336
|
[0005] |
Spring washer
|
|
| 1. |
|
[0001] |
Housing
|
|
| 19. |
VOE13940162
|
[0008] |
Screw
|
|
| 20. |
VOE13942336
|
[0008] |
Spring washer
|
|
| 21. |
VOE950588
|
[0001] |
Pin
|
HT 1566 -
|
| 22. |
VOE4871909
|
[0001] |
Gasket
|
|
| 2. |
VOE7011017
|
[0001] |
Ball bearing
|
|
| 3. |
VOE914472
|
[0001] |
Snap ring
|
|
