沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentControl for top InstallationEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
910 次

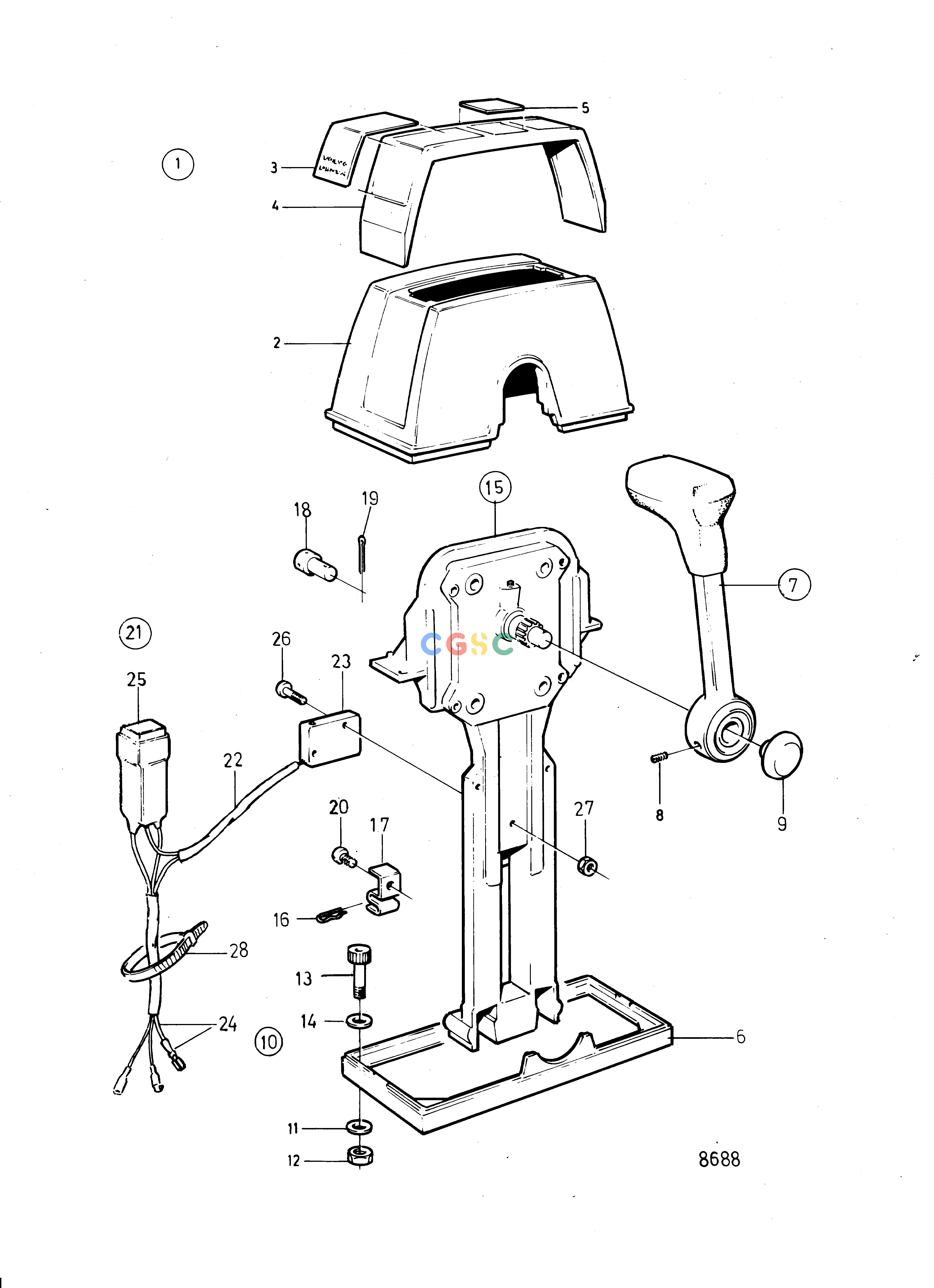

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
853168
|
[1] |
Mounting kit
|
|
| 2. |
1140046
|
[1] |
Cover
|
(851882)
|
| 3. |
851896
|
[2] |
Decal
|
|
| 4. |
851892
|
[1] |
Crossbar
|
|
| 5. |
851898
|
[1] |
Decal
|
|
| 6. |
839474
|
[1] |
Plate
|
|
| 7. |
852347
|
[1] |
Hand lever
|
|
| 8. |
963678
|
[1] |
Hex. socket screw
|
Included in 852347.
|
| 9. |
853004
|
[1] |
Push button
|
|
| 10. |
|
|
|
|
| 11. |
960138
|
[4] |
Washer
|
|
| 12. |
955780
|
[4] |
Hexagon nut
|
|
| 13. |
947671
|
[4] |
Hex. socket screw
|
|
| 14. |
940090
|
[4] |
Washer
|
|
| 15. |
851600
|
[1] |
Control
|
|
| 16. |
852924
|
[1] |
Locking pin
|
|
| 17. |
853423
|
[1] |
Retainer
|
|
| 18. |
839638
|
[2] |
Cube
|
|
| 19. |
17253
|
[2] |
Split pin
|
|
| 20. |
839664
|
[1] |
Screw
|
|
| 21. |
855352
|
[1] |
Neutral position con
|
(839641)
|
| 22. |
839619
|
[1] |
Cable kit
|
|
| 23. |
850200
|
[1] |
Toggle switch
|
|
| 24. |
|
|
|
See group 3
|
| 25. |
876037
|
[1] |
Relay kit
|
|
| 26. |
946177
|
[2] |
Cross recessed screw
|
|
| 27. |
947536
|
[2] |
Hexagon nut
|
|
| 28. |
948210
|
[1] |
Cable tie
|
|
