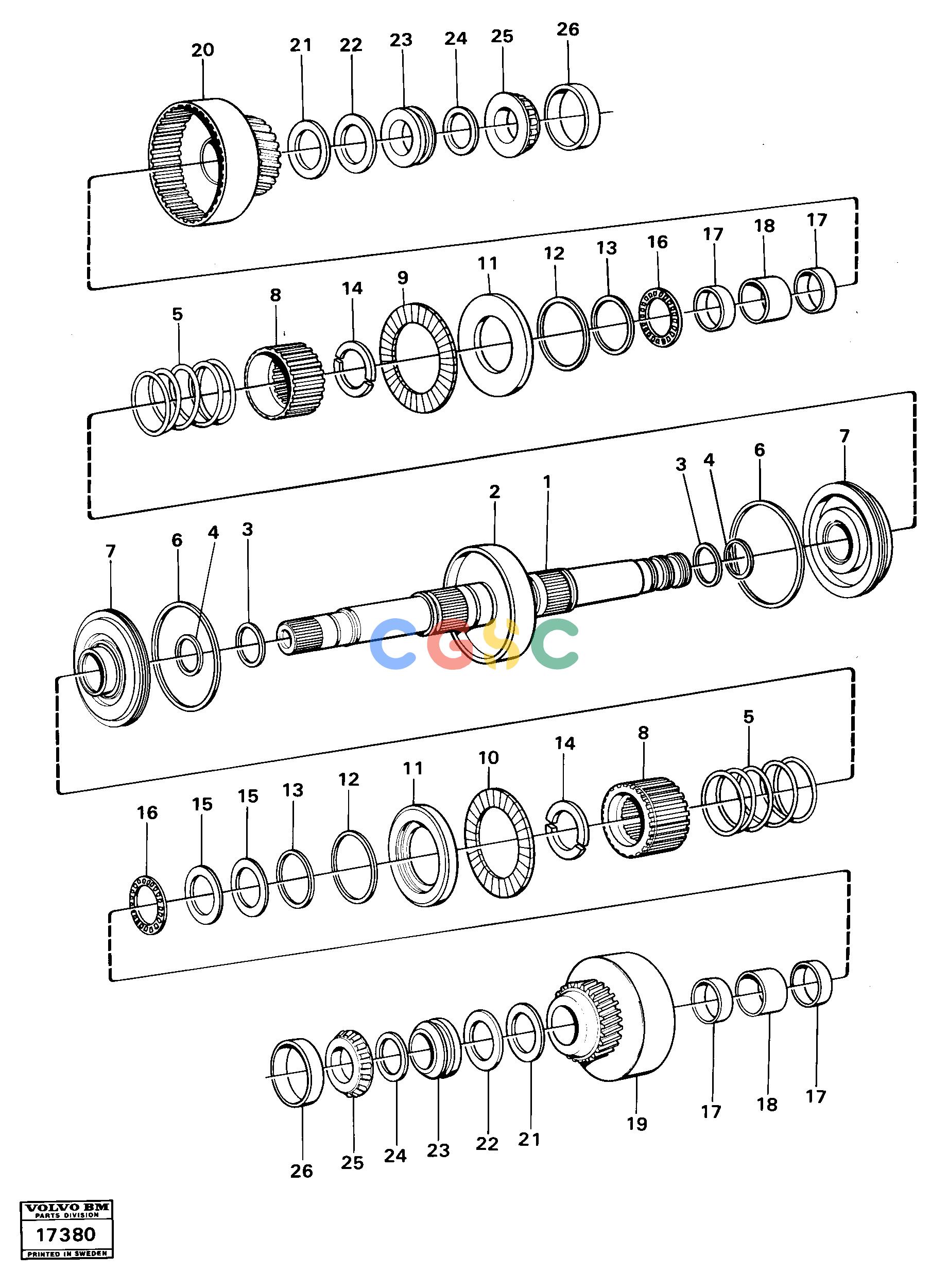

沃尔沃零件查询4500 Clutches forward and reverse Tillv Nr 2601-4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4871048
|
[0002] |
Piston ring
|
|
| 5. |
VOE4871532
|
[0002] |
Spring
|
|
| 6. |
VOE4720799
|
[0002] |
Piston ring
|
|
| 7. |
VOE4720803
|
[0002] |
Piston
|
|
| 8. |
VOE4871692
|
[0002] |
Clutch Hub
|
|
| |
VOE4720833
|
[0001] |
Hydraulic clutch
|
PROD NO 30819 HT 130
|
| 9. |
VOE4873015
|
[0018] |
Friction disc
|
|
| 10. |
VOE4720762
|
[0018] |
Steel disc
|
|
| 11. |
VOE11037145
|
[0002] |
Pressure plate
|
|
| 12. |
VOE4786526
|
[0002] |
Lock ring
|
|
| 13. |
VOE4786536
|
[0002] |
Lock ring
|
|
| 14. |
VOE4871337
|
[0002] |
Retainer
|
|
| 15. |
VOE4880972
|
[0002] |
Thrust washer
|
|
| 16. |
VOE4785772
|
[0002] |
Needle bearing
|
|
| 17. |
VOE784467
|
[0004] |
Needle bearing
|
|
| 18. |
VOE4718015
|
[0002] |
Spacer ring
|
|
| 1. |
VOE11037116
|
[0001] |
Clutch shaft
|
|
| 19. |
VOE4720772
|
[0001] |
Gear
|
|
| 20. |
VOE4720771
|
[0001] |
Gear
|
|
| 21. |
VOE4871341
|
[0002] |
Thrust washer
|
|
| 22. |
VOE795433
|
[0002] |
Needle bearing
|
|
| 23. |
VOE17433093
|
[0002] |
Thrust washer
|
|
| 24. |
VOE914472
|
[0002] |
Snap ring
|
|
| 25. |
VOE11997939
|
[0002] |
Roller bearing
|
|
| 26. |
VOE183824
|
[0002] |
Roller bearing
|
|
| 27. |
VOE4720797
|
[0003] |
Piston ring
|
|
| |
VOE6630848
|
[0001] |
Overhaul kit
|
|
| 2. |
VOE4720805
|
[0001] |
Partition wall
|
|
| 3. |
VOE4786535
|
[0002] |
Lock ring
|
|
