| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

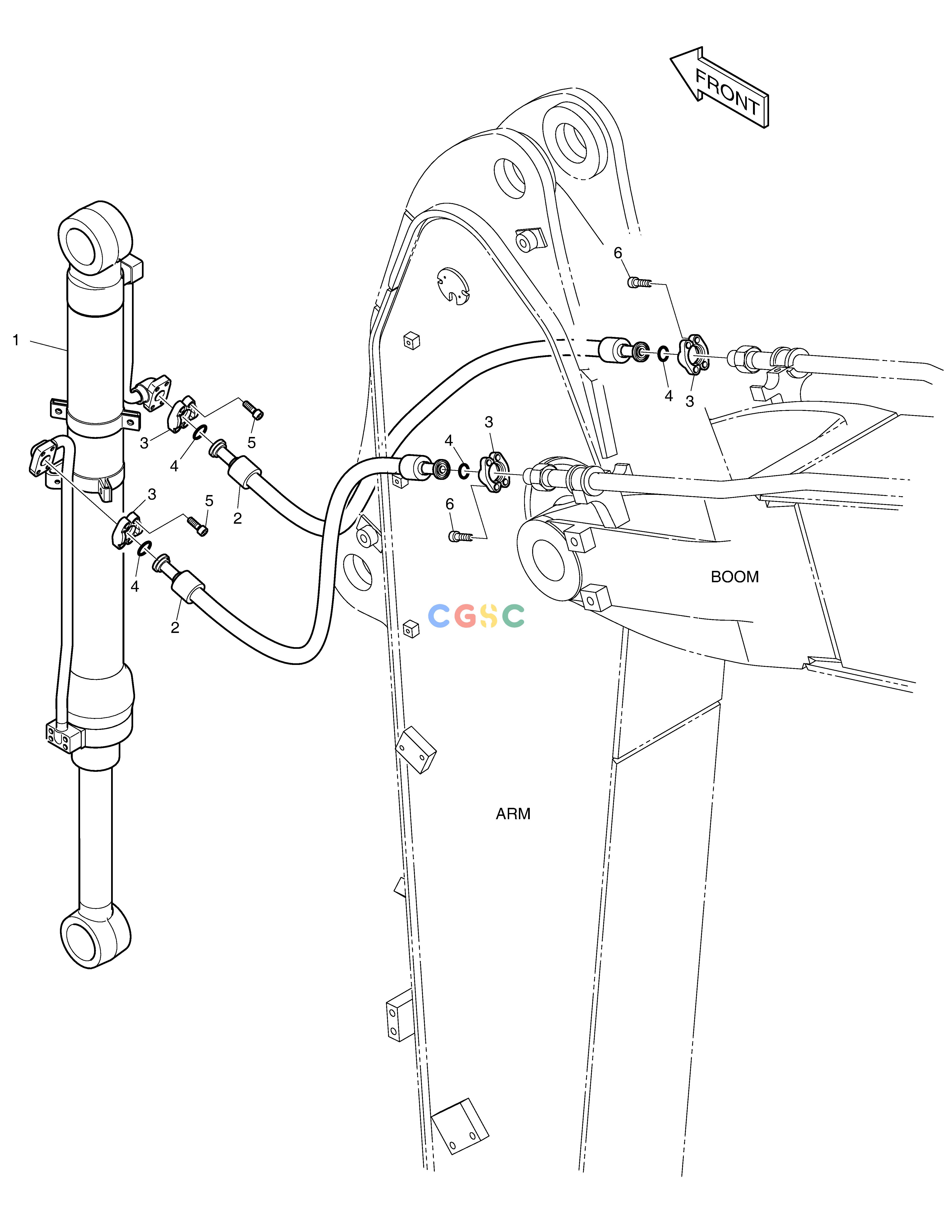

| -. | K1024809B | [-] | ARM PIPING | |
| 1. | 440-00411A | [1] | CYLINDER;BUCKET | 440-00411B |
| 1. | 440-00411B | [1] | CYLINDER;BUCKET | 440-00411C |
| 1. | 440-00411C | [1] | CYLINDER;BUCKET | |
| 2. | DS2038236 | [2] | HOSE | |
| 3. | 2181-9079 | [8] | FLANGE | |
| 4. | 2180-1026D2 | [4] | O-RING | |
| 5. | S2212266 | [8] | BOLT | |
| 6. | S2212366 | [8] | BOLT |
