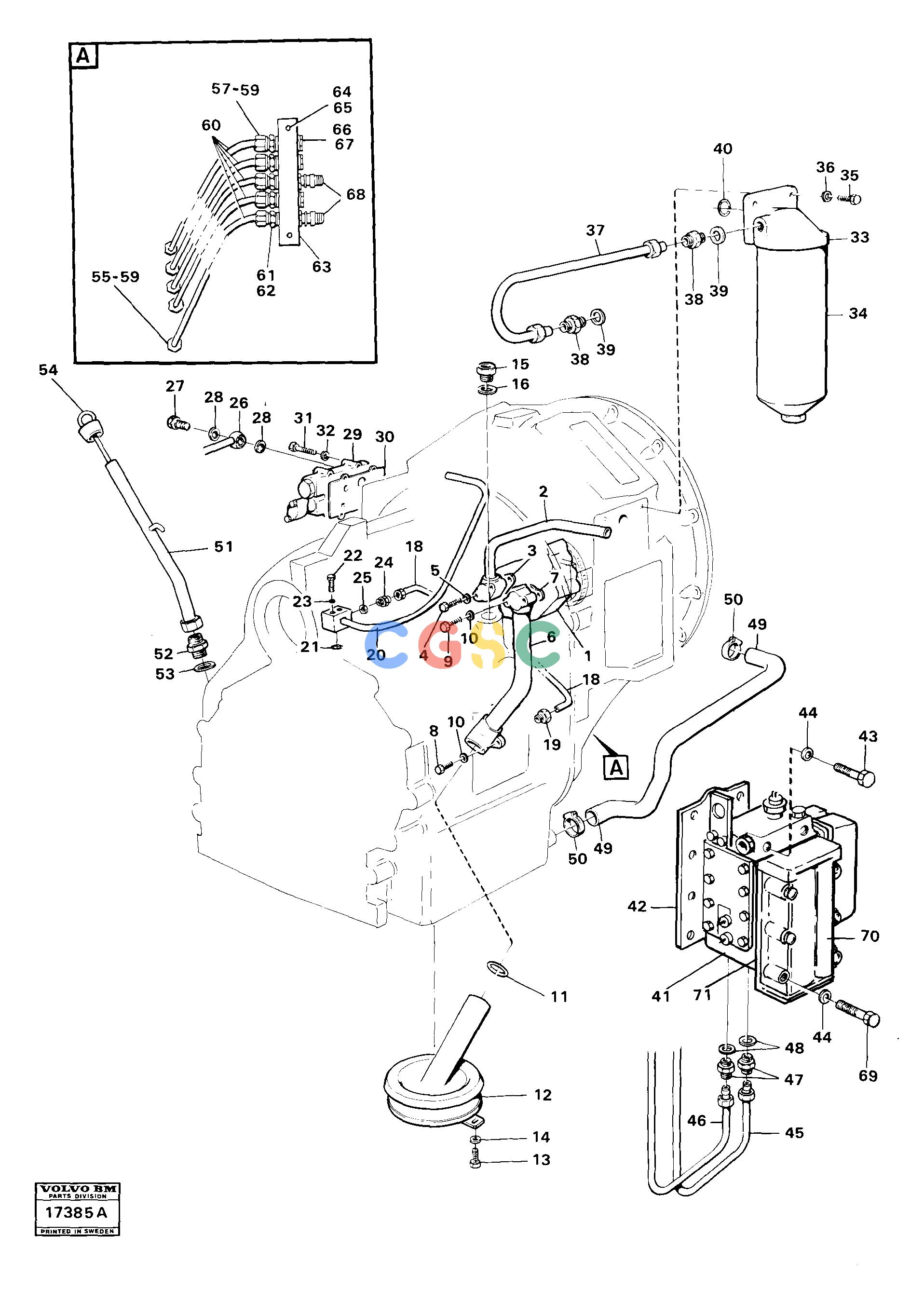

沃尔沃零件查询4500 Hydraulic lines, valves and filter Tillv Nr 2601-4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1019 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13941907
|
[0002] |
Washer
|
|
| 50. |
VOE943475
|
[0002] |
Hose clamp
|
|
| 51. |
VOE4854148
|
[0001] |
Oil filler pipe
|
|
| 52. |
VOE944041
|
[0001] |
Nipple
|
|
| 53. |
VOE13947630
|
[0001] |
Gasket
|
|
| 54. |
VOE4856456
|
[0001] |
Oil dipstick
|
|
| 6. |
VOE4871274
|
[0001] |
Suction pipe
|
|
| 55. |
VOE13945355
|
[0005] |
Nipple
|
|
| 56. |
VOE957178
|
[0005] |
Gasket
|
|
| 57. |
VOE941521
|
[0010] |
Fitting nut
|
|
| 58. |
VOE13956967
|
[0010] |
Ferrule
|
|
| 7. |
VOE11036099
|
[0001] |
Gasket
|
|
| 59. |
VOE13949361
|
[0010] |
Sleeve
|
|
| 60. |
VOE944963
|
[REQ] |
Plastic pipe
|
|
| 61. |
VOE13945355
|
[0005] |
Nipple
|
|
| 73. |
VOE13949574
|
[0005] |
O-ring
|
|
| 63. |
VOE4850324
|
[0001] |
Testing block
|
|
| 64. |
VOE60111880
|
[0002] |
Hexagon screw
|
|
| 65. |
VOE13955894
|
[0002] |
Washer
|
|
| 16. |
VOE926370
|
[0003] |
Plug
|
|
| 78. |
VOE13949574
|
[0003] |
O-ring
|
|
| 68. |
VOE930032
|
[2] |
Testing nipple
|
|
| 8. |
VOE955303
|
[0002] |
Hexagon screw
|
|
| 69. |
VOE13955311
|
[6] |
Screw
|
|
| 70. |
|
[1] |
Valve
|
|
| 71. |
VOE11036031
|
[1] |
Gasket
|
|
| 9. |
VOE955297
|
[0002] |
Hexagon screw
|
|
| 1. |
|
[0001] |
Oil pump
|
|
| 10. |
VOE13941907
|
[0004] |
Washer
|
|
| 11. |
VOE13948254
|
[0001] |
O-ring
|
|
| 12. |
VOE4718803
|
[0001] |
Strainer
|
|
| 13. |
VOE955269
|
[0002] |
Hexagon screw
|
|
| 14. |
VOE13941906
|
[0002] |
Washer
|
|
| 15. |
VOE13949285
|
[0001] |
Nipple
|
|
| 16. |
VOE4881254
|
[0001] |
Plane gasket
|
|
| 17. |
VOE4871162
|
[0001] |
Tube
|
|
| 18. |
VOE4871825
|
[0001] |
Tube
|
|
| 19. |
VOE4881502
|
[0001] |
Fitting
|
|
| 2. |
VOE4718084
|
[0001] |
Tube
|
|
| 20. |
VOE4871205
|
[0001] |
Tube
|
|
| 21. |
VOE13949188
|
[0001] |
O-ring
|
|
| 22. |
VOE940101
|
[0002] |
Hexagon screw
|
|
| 23. |
VOE13949607
|
[0002] |
Washer
|
|
| 24. |
VOE13963948
|
[0001] |
Nipple
|
|
| 25. |
VOE13947622
|
[0001] |
Plane gasket
|
|
| 26. |
VOE4871741
|
[0001] |
Tube
|
|
| 27. |
VOE190714
|
[0001] |
Hollow screw
|
|
| 28. |
VOE13947624
|
[0002] |
Plane gasket
|
|
| 29. |
|
[0001] |
Valve
|
|
| 3. |
VOE11036101
|
[0001] |
Gasket
|
|
| 30. |
VOE11036354
|
[0001] |
Gasket
|
|
| 31. |
VOE955302
|
[0004] |
Hexagon screw
|
|
| 32. |
VOE13941907
|
[0004] |
Washer
|
|
| 33. |
VOE4871496
|
[0001] |
Cover
|
|
| 34. |
VOE4787923
|
[0001] |
Filter cartridge
|
|
| 35. |
VOE13970947
|
[0004] |
Hexagon screw
|
|
| 36. |
VOE941908
|
[0004] |
Spring washer
|
|
| 37. |
VOE11036615
|
[0001] |
Tube
|
|
| 38. |
VOE13943988
|
[0002] |
Nipple
|
|
| 39. |
VOE4881255
|
[0002] |
Plane gasket
|
|
| 4. |
VOE955299
|
[0002] |
Hexagon screw
|
|
| 40. |
VOE944126
|
[0001] |
O-ring
|
|
| 41. |
|
[0001] |
Gear selector valve
|
|
| 42. |
VOE11036490
|
[0001] |
Gasket
|
|
| 43. |
VOE13955307
|
[0002] |
Screw
|
|
| 44. |
VOE13941907
|
[0008] |
Washer
|
|
| 45. |
VOE4720811
|
[0001] |
Tube
|
HT - 1573
|
| |
VOE931621
|
[0001] |
Hose assembly
|
HT 1574 -
|
| 46. |
VOE4720810
|
[0001] |
Tube
|
HT - 1573
|
| |
VOE4871723
|
[0001] |
Tube
|
HT 1574 -
|
| 47. |
VOE13943986
|
[0004] |
Nipple
|
HT - 1573
|
| |
VOE13943986
|
[0002] |
Nipple
|
HT 1574 -
|
| |
VOE4871721
|
[0002] |
Nipple
|
HT 1574 -
|
| 48. |
VOE947623
|
[0004] |
Gasket
|
|
| 49. |
VOE4926982
|
[0001] |
Hose
|
|
