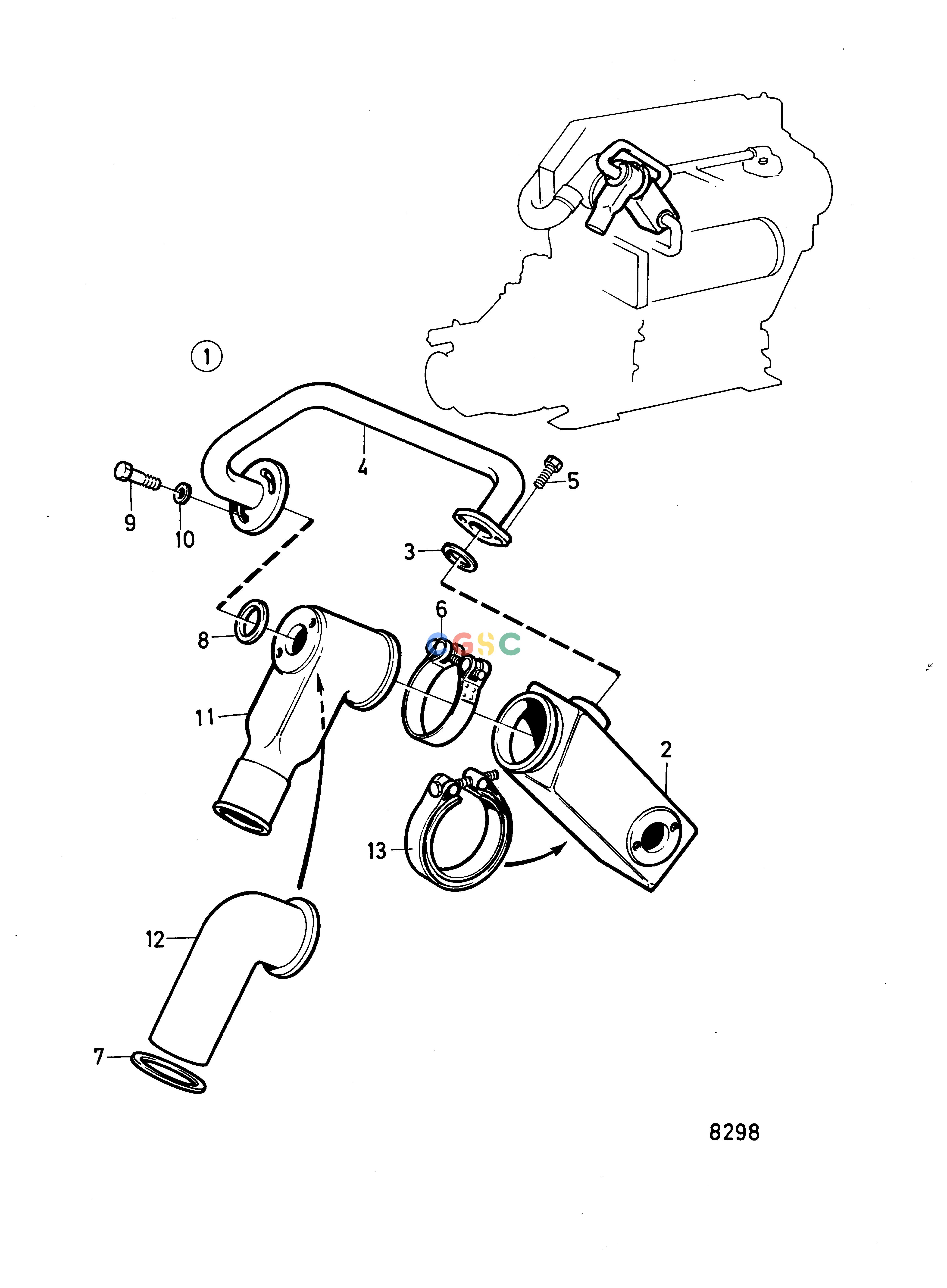

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentExhaust Riser KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
228 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859121
|
[1] |
Exhaust riser
|
|
| 2. |
858556
|
[1] |
Exhaust riser
|
|
| 3. |
418445
|
[1] |
Sealing ring
|
|
| 4. |
858564
|
[1] |
Coolant pipe
|
|
| 5. |
955269
|
[2] |
Hexagon screw
|
|
| 6. |
840933
|
[1] |
V-clamp
|
|
| 7. |
859112
|
[1] |
Gasket
|
|
| 8. |
949657
|
[2] |
O-ring
|
|
| 9. |
955272
|
[2] |
Hexagon screw
|
|
| 10. |
955893
|
[2] |
Washer
|
|
| 11. |
|
|
|
See group 2B
|
| 12. |
|
|
|
See group 2B
|
| 13. |
|
|
|
See group 2B
|
