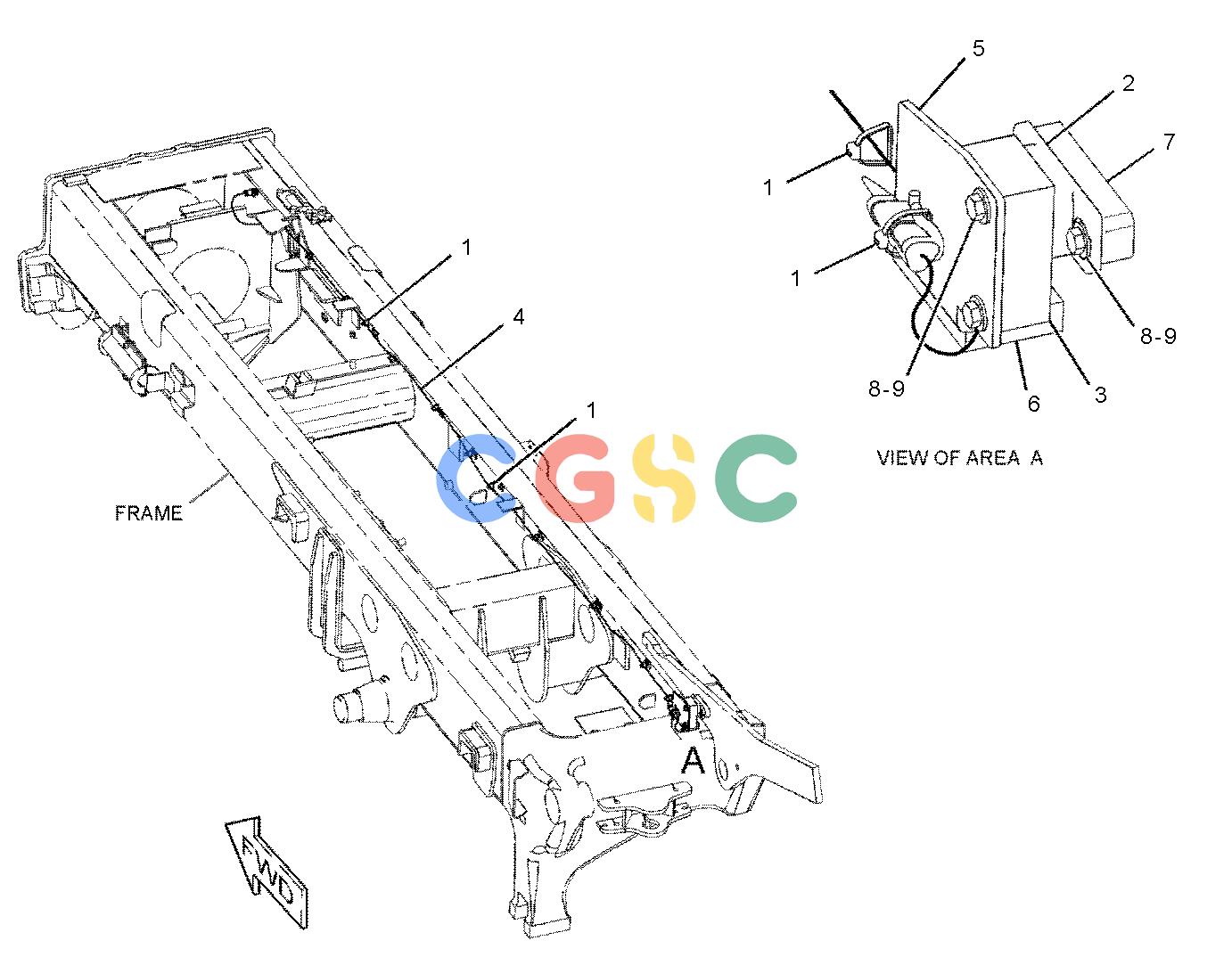

卡特零件查询（725） 396-1143: RADIO GP-COMMUNICATION
广数供应链运营团队, 14 02月, 2025，浏览：
772 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 239-9954Y | [1] | CONTROL GP-UNPROGRAMMED(PRODUCT LINK 300) | |
| | 262-2043Y | [1] | ELECTRONICS GP-COMMUNICATION(PRODUCT LINK 300) | |
| | Y | [1] | FILM GP(PRODUCT LINK) |
| | | | -OR- |
| | Y | [1] | FILM GP(PRODUCT LINK) |
| | 373-3680Y | [1] | MOUNTING GP-RADIO | |
| | 336-3545Y | [1] | RADIO GP-COMMUNICATION(PRODUCT LINK 121SR) | |
| | 310-2393 | [1] | ANTENNA AS(450-CM) | |
| | 301-0589 | [1] | ANTENNA(FLEXIBLE) | |
| | 355-0598 | [1] | NUT-SPECIAL | |
| | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| | 274-9047 | [1] | HARNESS AS-CONTROL(RADIO, PRODUCT LINK) | |
| | 8T-8729 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 160-7690 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 245-0164 | [1] | PLUG AS(12-PIN) | |
| | 8T-8737 | [64] | PLUG-SEAL | |
| | 245-0169 | [1] | RECEPTACLE AS-CONNECTOR(12-PIN) | |
| | 8T-8730 | [9] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 194-5226 | [13] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [13] | WIRE AS(14-GA) | |
| | 9X-9896 | [8] | MOUNT(ISOLATION) | |
| | 388-7601 | [1] | PLATE AS | |
| | 8C-5608 | [4] | SPACER(6.5X9.5X25.4-MM THK) | |
| | 3S-2093 | [16] | STRAP-CABLE | |
| | 9X-6165 | [4] | WASHER(6.5X22X2.5-MM THK) | |
| | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
