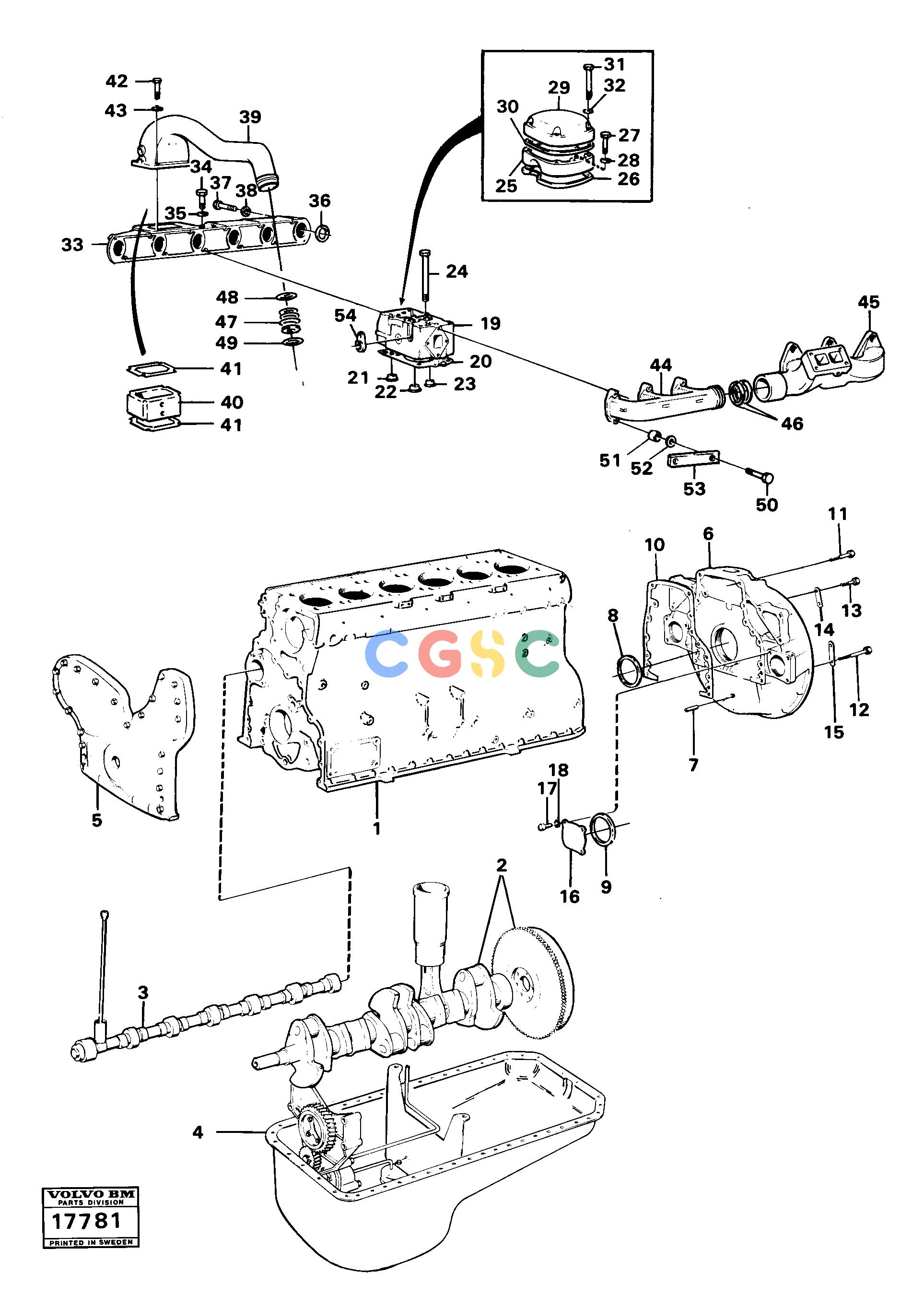

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
|
Timing gear casing
|
|
| 46. |
VOE275748
|
[1] |
Sealing kit
|
|
| |
VOE479107
|
[6] |
Gasket
|
|
| 47. |
VOE469510
|
[0001] |
Tube
|
|
| 48. |
VOE469508
|
[1] |
Sealing ring
|
|
| 49. |
VOE469509
|
[1] |
Sealing ring
|
|
| 50. |
VOE945698
|
[24] |
Screw
|
|
| 51. |
VOE422217
|
[24] |
Spacer sleeve
|
|
| 52. |
VOE941744
|
[24] |
Washer
|
|
| 53. |
VOE13966717
|
[12] |
Tab washer
|
|
| 54. |
VOE479260
|
[6] |
Gasket
|
|
| 6. |
VOE4777076
|
[0001] |
Flywheel housing
|
|
| |
VOE275752
|
[1] |
Gasket kit
|
|
| |
VOE276035
|
[1] |
Gasket kit
|
(275754)
|
| |
VOE11990092
|
[1] |
Gasket kit
|
|
| |
VOE591247
|
[1] |
Sealant
|
|
| |
|
[1] |
Housing
|
|
| 7. |
VOE404069
|
[1] |
Pin
|
|
| 8. |
VOE846644
|
[2] |
Sealing ring
|
|
| 9. |
VOE967344
|
[1] |
O-ring
|
|
| 1. |
|
[0001] |
Cylinder block
|
|
| 10. |
VOE424621
|
[1] |
Gasket
|
|
| 11. |
VOE955582
|
[2] |
Hexagon screw
|
|
| 12. |
VOE955587
|
[2] |
Hexagon screw
|
|
| 13. |
VOE955580
|
[0008] |
Hexagon screw
|
|
| 14. |
VOE941464
|
[0001] |
Tab washer
|
|
| 15. |
VOE941465
|
[0005] |
Tab washer
|
|
| 16. |
|
[0001] |
Cover
|
|
| 17. |
VOE13940115
|
[0002] |
Screw
|
|
| 18. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 19. |
|
[0006] |
Cylinder cover
|
|
| 2. |
|
|
Crankshaft
|
|
| 20. |
VOE270789
|
[0006] |
Gasket kit
|
|
| 21. |
VOE422415
|
[0012] |
Sealing ring
|
D=18
|
| 22. |
VOE422414
|
[0012] |
Sealing ring
|
D=32
|
| 23. |
VOE422413
|
[0006] |
Sealing ring
|
D=11
|
| 24. |
VOE422086
|
[0024] |
Screw
|
|
| 25. |
VOE469431
|
[0006] |
Cover
|
|
| 26. |
VOE424693
|
[0006] |
Gasket
|
|
| 27. |
VOE13940159
|
[0012] |
Screw
|
|
| 28. |
VOE13955894
|
[0012] |
Washer
|
|
| 29. |
VOE469432
|
[0006] |
Cover
|
|
| 3. |
|
|
Camshaft
|
|
| 30. |
VOE424694
|
[0006] |
Gasket
|
|
| 31. |
VOE955530
|
[0024] |
Hexagon screw
|
|
| 32. |
VOE13941907
|
[0024] |
Washer
|
|
| 33. |
VOE1545048
|
[0001] |
Inlet Pipe
|
|
| 34. |
VOE940113
|
[0001] |
Hexagon screw
|
|
| 35. |
VOE957171
|
[0001] |
Gasket
|
|
| 36. |
VOE469829
|
[0006] |
Sealing ring
|
|
| 37. |
VOE955533
|
[0002] |
Hexagon screw
|
L=102
|
| |
VOE955531
|
[0004] |
Hexagon screw
|
L=89
|
| |
VOE13949886
|
[0002] |
Bolt
|
L=108
|
| 4. |
|
|
Lubricating system
|
SEE GROUP 22
|
| |
VOE955526
|
[0007] |
Hexagon screw
|
L=51
|
| 38. |
VOE13955894
|
[0012] |
Washer
|
|
| 39. |
VOE1545169
|
[0001] |
Pipe
|
|
| |
|
[0001] |
Starter element
|
SEE GROUP 37
|
| 40. |
VOE470211
|
[0001] |
Intmd Section
|
|
| 41. |
VOE424618
|
[0002] |
Gasket
|
|
| 42. |
VOE955532
|
[0004] |
Hexagon screw
|
|
| 43. |
VOE13955894
|
[0004] |
Washer
|
|
| 44. |
VOE1545028
|
[1] |
Exhaust pipe
|
|
| 45. |
VOE1545323
|
[1] |
Exhaust pipe
|
|
