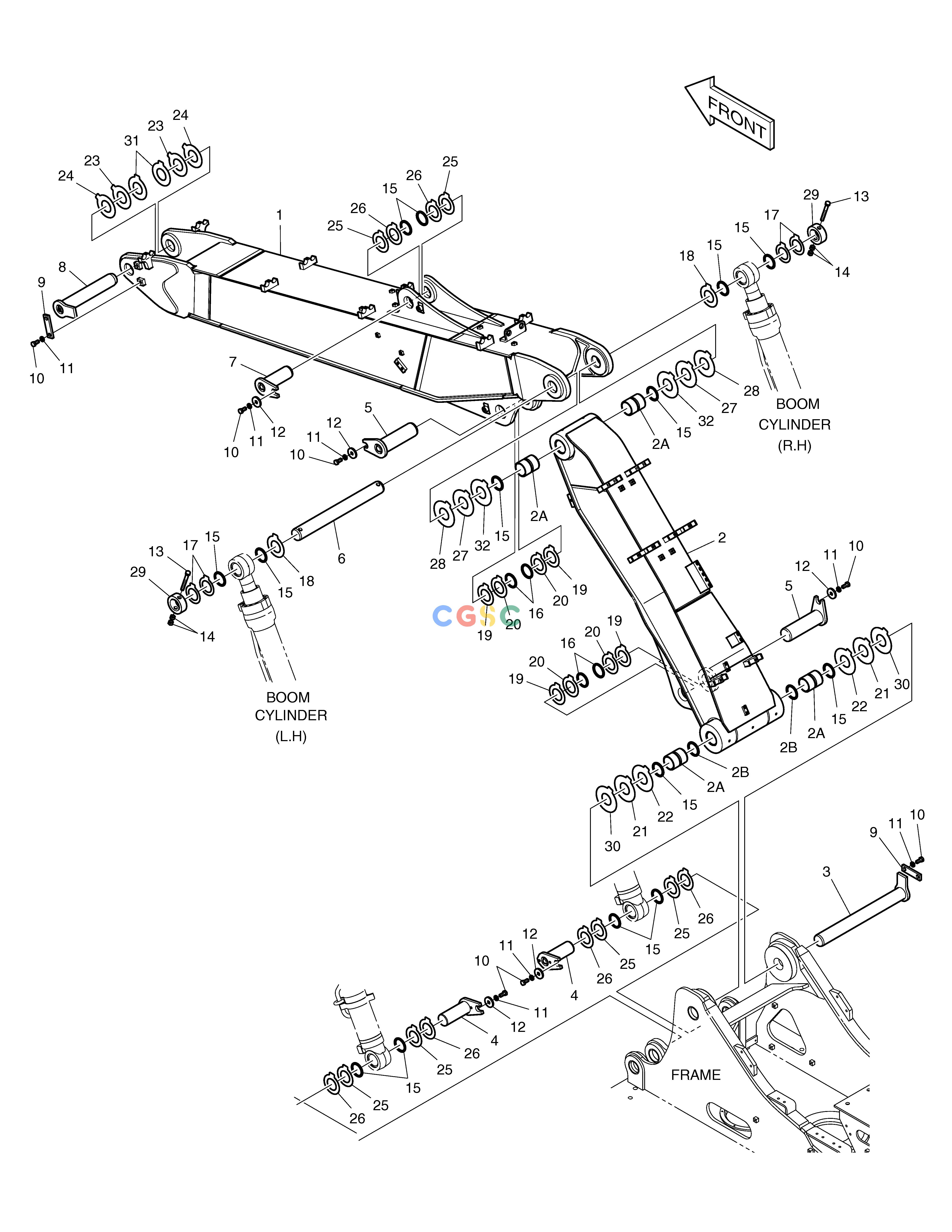

斗山零件查询ARTI BOOM DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1008201H
|
[-] |
ARTI BOOM
|
|
| 1. |
K1008202A
|
[1] |
BOOM;UPPER
|
|
| 10. |
S0521366
|
[9] |
BOLT
|
|
| 11. |
S5102903
|
[9] |
WASHER
|
|
| 12. |
2116-1060D6
|
[5] |
STOPPER
|
|
| 13. |
S0566966
|
[2] |
BOLT
|
|
| 14. |
S4012933
|
[4] |
NUT
|
|
| 15. |
2180-1106BD4
|
[14] |
SEAL;DUST
|
|
| 16. |
2180-1106BD24
|
[4] |
SEAL;DUST
|
|
| 17. |
DS7752003
|
[4] |
SHIM
|
|
| 18. |
DS7752006
|
[2] |
SHIM
|
|
| 19. |
DS7752026
|
[4] |
SHIM
|
|
| 2. |
K1008232A
|
[1] |
BOOM;LOWER
|
|
| 20. |
DS7752027
|
[4] |
SHIM
|
|
| 21. |
DS7752011
|
[2] |
SHIM
|
|
| 22. |
DS7752023
|
[2] |
SHIM
|
|
| 23. |
DS7752008
|
[2] |
SHIM
|
|
| 24. |
DS7752009
|
[2] |
SHIM
|
|
| 25. |
DS7752004
|
[6] |
SHIM
|
|
| 26. |
DS7752005
|
[6] |
SHIM
|
|
| 27. |
DS7752059
|
[2] |
SHIM 1.0t
|
|
| 28. |
DS7752060
|
[2] |
SHIM 1.6t
|
|
| 29. |
2116-1532A
|
[2] |
STOPPER
|
|
| 2A. |
110-00240
|
[4] |
BUSHING
|
|
| 2B. |
2180-1106BD4
|
[2] |
SEAL;DUST
|
|
| 3. |
123-00671B
|
[1] |
PIN
|
|
| 30. |
DS7752089
|
[2] |
SHIM
|
|
| 31. |
DS7752090
|
[2] |
SHIM
|
|
| 32. |
DS7752091
|
[2] |
SHIM
|
|
| 4. |
123-00474
|
[2] |
PIN
|
|
| 5. |
K1008227
|
[2] |
PIN
|
|
| 6. |
K1004508A
|
[1] |
PIN
|
K1004508C
|
| 6. |
K1004508C
|
[1] |
PIN
|
|
| 7. |
2123-2209C
|
[1] |
PIN
|
|
| 8. |
2123-2207E
|
[1] |
PIN
|
|
| 9. |
621-03710A
|
[2] |
PLATE,STOPPER
|
|
