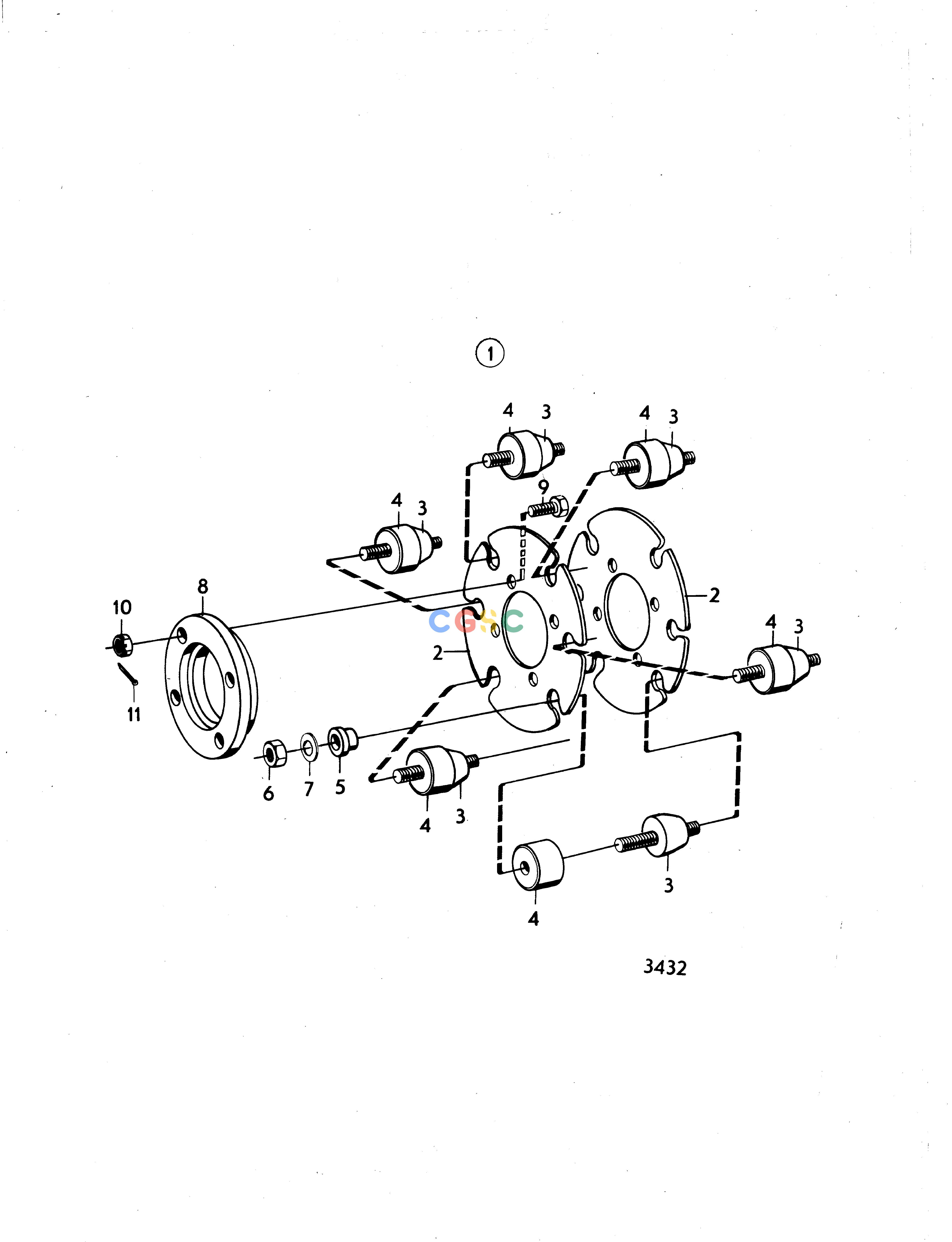

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentFlexible Propeller Shaft Coupling PRM -Reverse GearEPC Volvo Penta Parts catalo
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
819153
|
[1] |
Rubber coupling
|
|
| 2. |
819150
|
[2] |
Flexplate
|
|
| 3. |
803762
|
[6] |
Rubber cushion
|
|
| 4. |
803748
|
[6] |
Protecting casing
|
|
| 5. |
802976
|
[12] |
Washer
|
|
| 6. |
955850
|
[12] |
Hexagon nut
|
|
| 7. |
940280
|
[12] |
Spring washer
|
|
| 8. |
819152
|
[1] |
Guide ring
|
|
| 9. |
955674
|
[4] |
Hexagon screw
|
L=22mm
|
| 9. |
955676
|
[4] |
Hexagon screw
|
L=25mm
|
| 10. |
955882
|
[8] |
Nut
|
|
| 11. |
907834
|
[8] |
Split pin
|
|
