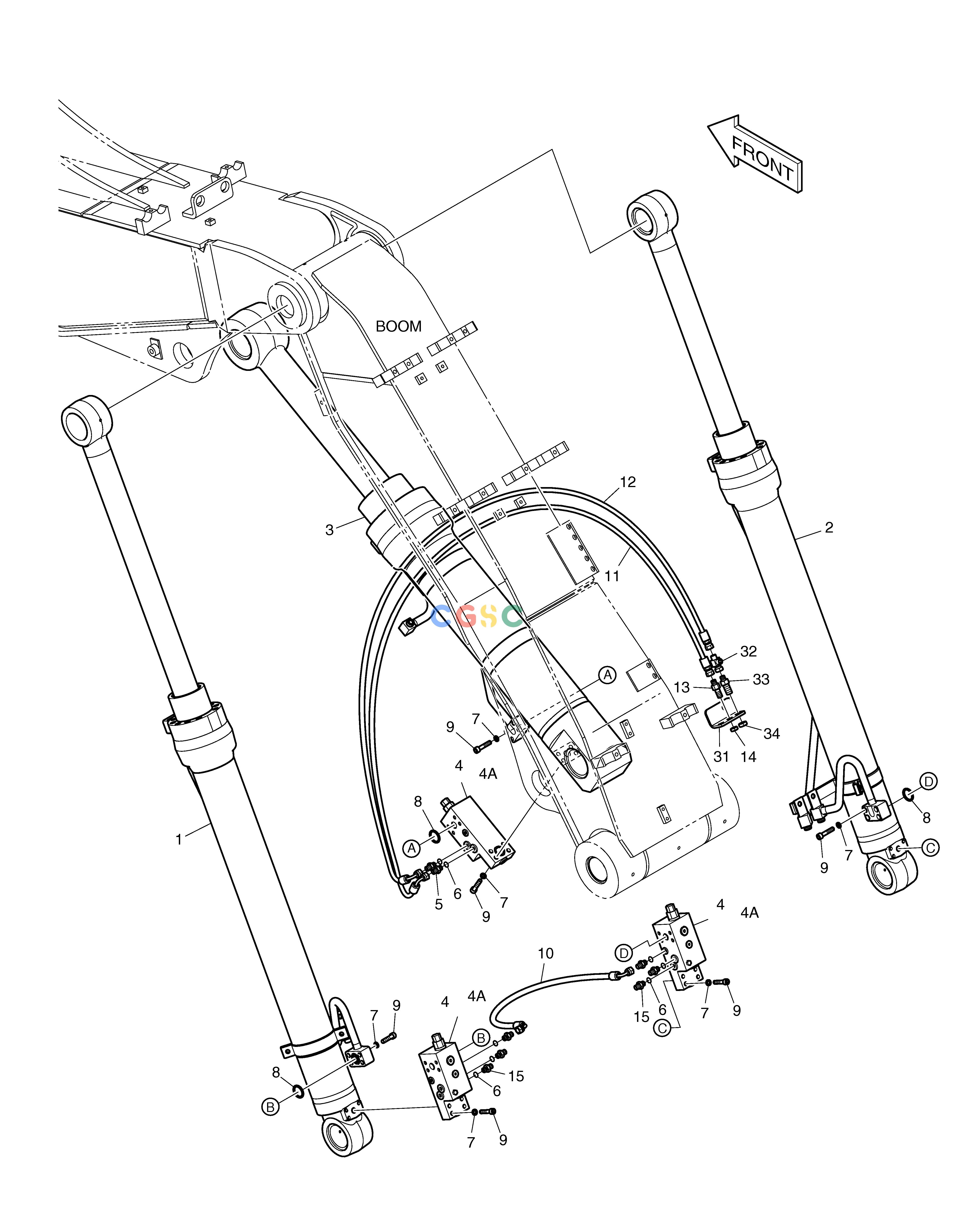

斗山零件查询ARTI BOOM PIPING - LOCK VALVE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
159 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027591B
|
[-] |
|
|
| 1. |
K1027317
|
[1] |
BOOM CYLINDER(L.H)
|
|
| 10. |
2184-1096D8
|
[1] |
HOSE PF1/4-610L
|
|
| 11. |
2184-1046D216
|
[1] |
HOSE
|
|
| 12. |
2184-1046D216
|
[1] |
HOSE
|
|
| 13. |
DS2410007
|
[1] |
ADAPTER
|
|
| 14. |
121-00010D7
|
[1] |
NUT
|
|
| 15. |
2181-1126D102
|
[6] |
ADAPTER
|
|
| 2. |
K1027318
|
[1] |
BOOM CYLINDER(R.H)
|
|
| 3. |
K1008751A
|
[1] |
CYLINDER;ARTI LOCK V/V
|
K1008751B
|
| 3. |
K1008751B
|
[1] |
CYLINDER;ARTI LOCK V/V
|
|
| 31. |
K1008271A
|
[1] |
BRACKET
|
|
| 32. |
181-00673D1
|
[1] |
TEE;UNION
|
|
| 33. |
181-00078D5
|
[1] |
ADAPTER
|
|
| 34. |
121-00010D1
|
[1] |
NUT
|
|
| 4. |
420-00003A
|
[3] |
VALVE;LOCK
|
|
| 4A. |
K9000998
|
[1] |
SEAL KIT
|
|
| 5. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 6. |
S8000111
|
[8] |
O-RING
|
|
| 7. |
S5110601
|
[24] |
WASHER;SPRING M10
|
|
| 8. |
S8000281
|
[3] |
O-RING
|
|
| 9. |
S2212666
|
[24] |
BOLT;SOCKET M10X1.5X50
|
|
