神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (01-015) - CRANKSHAFT & PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
136 次

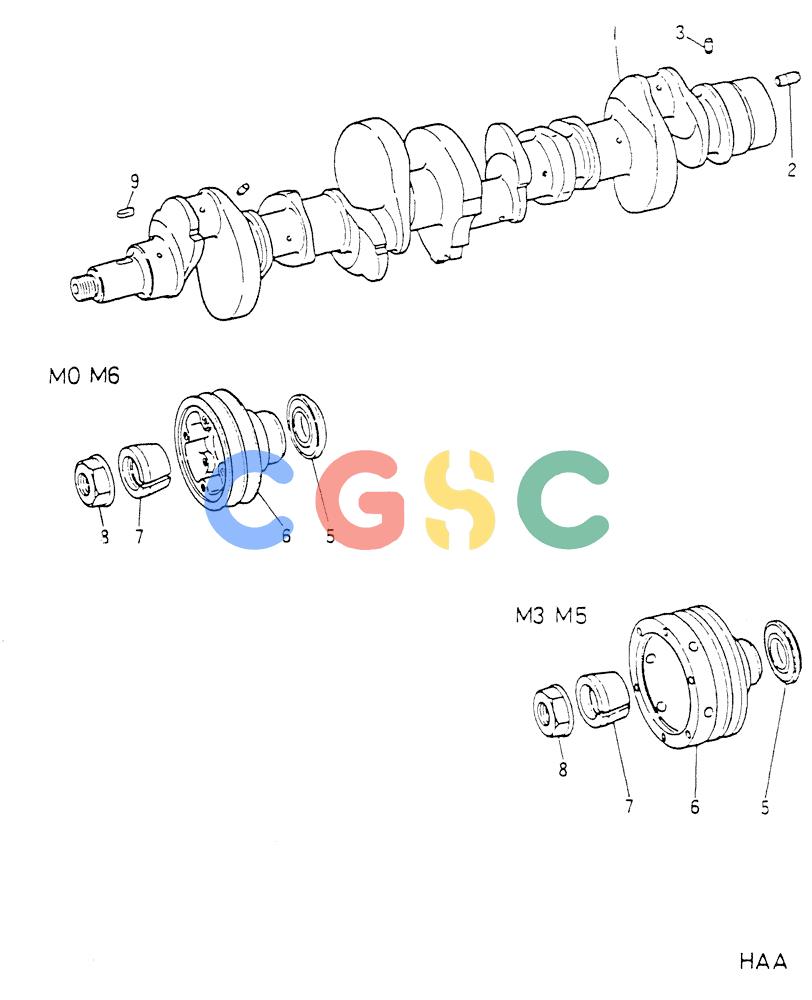

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-3. | VAME032700 | [1] | CRANKSHAFT ASSY CRANKSHAFT ASSY, FOR M0,M3 ONLY | CRANKSHAFT ASSY CRANKSHAFT ASSY, FOR M0,M3 ONLY |
| 1-3. | VAME032702 | [1] | CRANKSHAFT CRANKSHAFT ASSY, FOR M5,M6 ONLY | CRANKSHAFT CRANKSHAFT ASSY, FOR M5,M6 ONLY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKSHAFT |
| 2. | VAMF472407 | [1] | PIN | KOBPIN,DOWEL 14 |
| 3. | VAMH012026 | [1] | PIN | KOBPIN,DOWEL |
| 5. | VAME032038 | [1] | SLINGER | KOBSLINGER |
| 6. | VAME032356 | [1] | PULLEY | KOBPULLEY,CRANKSHAFT PCD155, FOR M1,M6 ONLY |
| 6. | VAME039272 | [1] | PULLEY,CRANKSHAFT PCD169, FOR M3,M5 ONLY | |
| 7. | VAME032158 | [1] | ROCKER ARM COTTER | KOBCONE,TAPER |
| 8. | VAMH004052 | [1] | NUT | KOBNUT |
| 9. | VAMF476059 | [1] | KEY | KOBKEY,SUNK 10X20 |
