卡特零件查询（725） 232-0193: BATTERY GP
广数供应链运营团队, 14 02月, 2025，浏览：
313 次

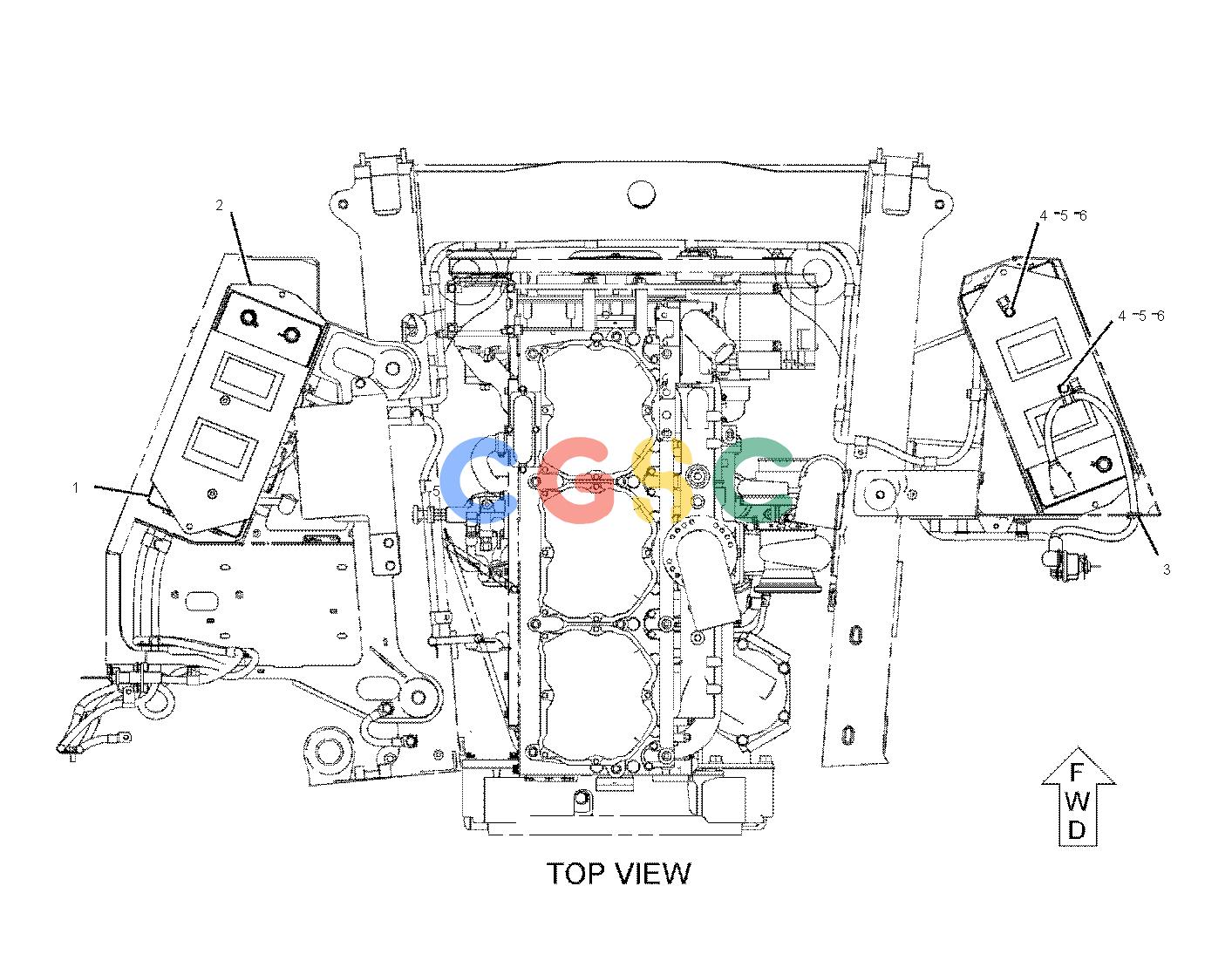

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 153-5710 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET)(MAINTENANCE FREE) | |
| 2. | 232-0194 | [2] | CLAMP AS-BATTERY | |
| 3. | 232-1477 | [1] | CABLE AS(DISCONNECT) | |
| | 9W-3459 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | | NUT(5/16-18-THD) | |
| | 235-2678 | [1] | TERMINAL-RING | |
| | 159-8050E | | CABLE(00-GA, BLACK)(86-CM) | |
| | 7N-5274 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 037-5197 | [1] | BOOT | |
| | 061-8844 | [1] | GROMMET | |
| 4. | 263-6342 | [3] | CLIP | |
| 5. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
