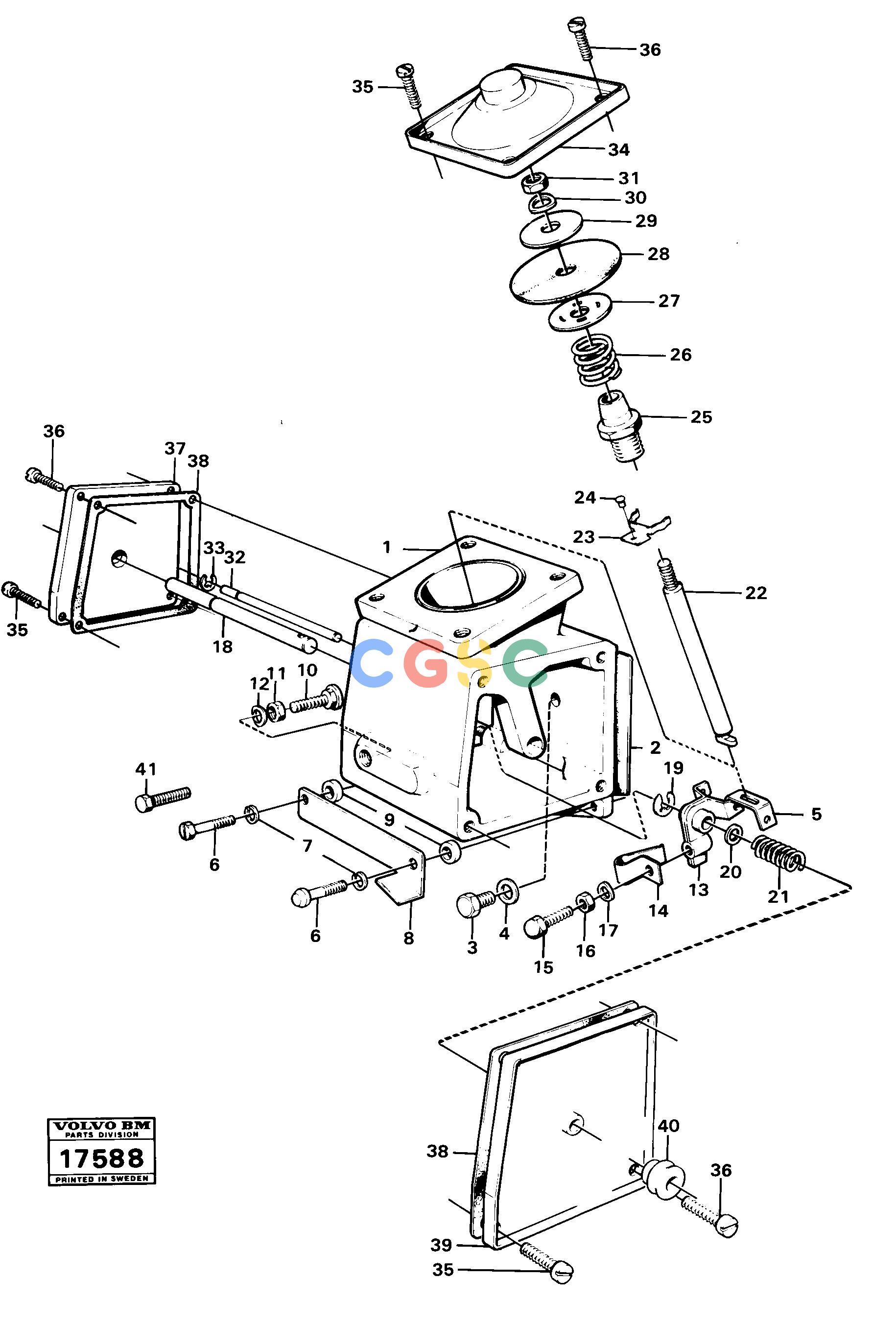

沃尔沃零件查询4600B Smoke limiter4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Yoke
|
|
| 6. |
VOE6638096
|
[0001] |
Screw
|
|
| |
VOE243855
|
[0001] |
Stud
|
|
| 7. |
VOE13941906
|
[0002] |
Washer
|
|
| 8. |
|
[0001] |
Indicator
|
|
| |
VOE6212704
|
[0001] |
Smoke limiter
|
|
| 9. |
|
[0002] |
Spacer washer
|
EXCL
|
| 10. |
|
[0001] |
Screw
|
|
| 11. |
VOE940197
|
[0001] |
Hexagon nut
|
|
| 12. |
VOE13941906
|
[0001] |
Washer
|
|
| 13. |
|
[0001] |
Lever
|
|
| 14. |
|
[0001] |
Spring
|
|
| 15. |
|
[0001] |
Screw
|
|
| 16. |
VOE940197
|
[0001] |
Hexagon nut
|
|
| 17. |
VOE13941906
|
[0001] |
Washer
|
|
| 18. |
VOE241783
|
[0001] |
Shaft
|
|
| 2. |
VOE1698172
|
[0001] |
Gasket
|
|
| 19. |
VOE951667
|
[0001] |
Retaining ring
|
|
| 20. |
VOE233816
|
[0001] |
Washer
|
|
| 21. |
|
[0001] |
Spring
|
|
| 22. |
|
[0001] |
Control rod
|
|
| 23. |
VOE837741
|
[0001] |
Lock spring
|
|
| 24. |
|
[0001] |
Rivet
|
|
| 25. |
|
[0001] |
Guide bushing
|
|
| 26. |
|
[0001] |
Spring
|
|
| 27. |
|
[0001] |
Spring Disc
|
|
| 28. |
VOE241775
|
[0001] |
Diaphragm
|
|
| 3. |
VOE13955294
|
[0001] |
Screw
|
|
| 29. |
VOE13941906
|
[0001] |
Washer
|
|
| 30. |
VOE13941906
|
[0001] |
Washer
|
|
| 31. |
VOE940197
|
[0001] |
Hexagon nut
|
|
| 32. |
|
[0001] |
Pin
|
|
| 33. |
VOE951667
|
[0002] |
Retaining ring
|
|
| 34. |
|
[0001] |
Cover
|
|
| 35. |
VOE6210714
|
[REQ] |
Screw
|
|
| 36. |
VOE14014666
|
[REQ] |
Screw
|
|
| 37. |
|
[0001] |
Cover
|
|
| 38. |
VOE1698171
|
[0002] |
Gasket
|
|
| 4. |
|
[0001] |
Washer
|
|
| 39. |
VOE241791
|
[0001] |
Cover
|
|
| 40. |
VOE241792
|
[0001] |
Bellows
|
|
| 41. |
VOE243074
|
[0001] |
Screw
|
|
