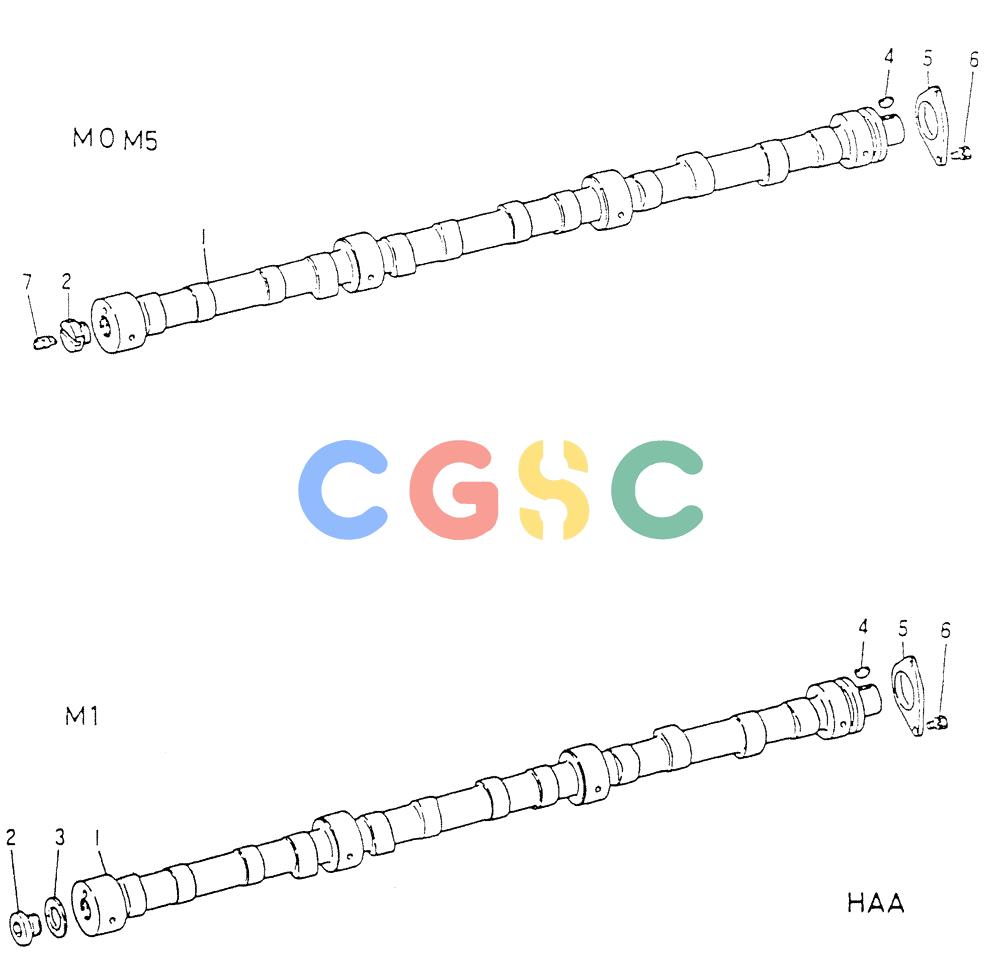

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (01-017) - CAMSHAFT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
934 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME030999 | [1] | CAMSHAFT | KOBCAMSHAFT, FOR M0,M1 ONLY |
| 1. | VAME041118 | [1] | CAMSHAFT, FOR M5 ONLY | |
| 2. | VAME038069 | [1] | COUPLING | KOBCONNECTOR,FOR M0,M5 ONLY |
| . . | VAMH037137 | [1] | PLUG | KOBPLUG,FOR M1 ONLY |
| 3. | VAMF660068 | [1] | PACKING | KOBGASKET 20,FOR M1 ONLY Superseded by part number: VAF420220000 |
| 4. | VAMS476135 | [1] | KEY | KOBKEY,WOODRUFF 5X19 Superseded by part number: 132499A1 |
| 5. | VAME031768 | [1] | THRUST PLATE | KOBPLATE,THRUST Superseded by part number: VAME071319 |
| 6. | VAMF140223 | [2] | BOLT | KOBBOLT,FLANGE 8X16 |
| 7. | VAME038071 | [1] | FASTENER COUPLING,TACHO DRIVE,FOR M0,M5 ONLY | FASTENER COUPLING,TACHO DRIVE,FOR M0,M5 ONLY |
