| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

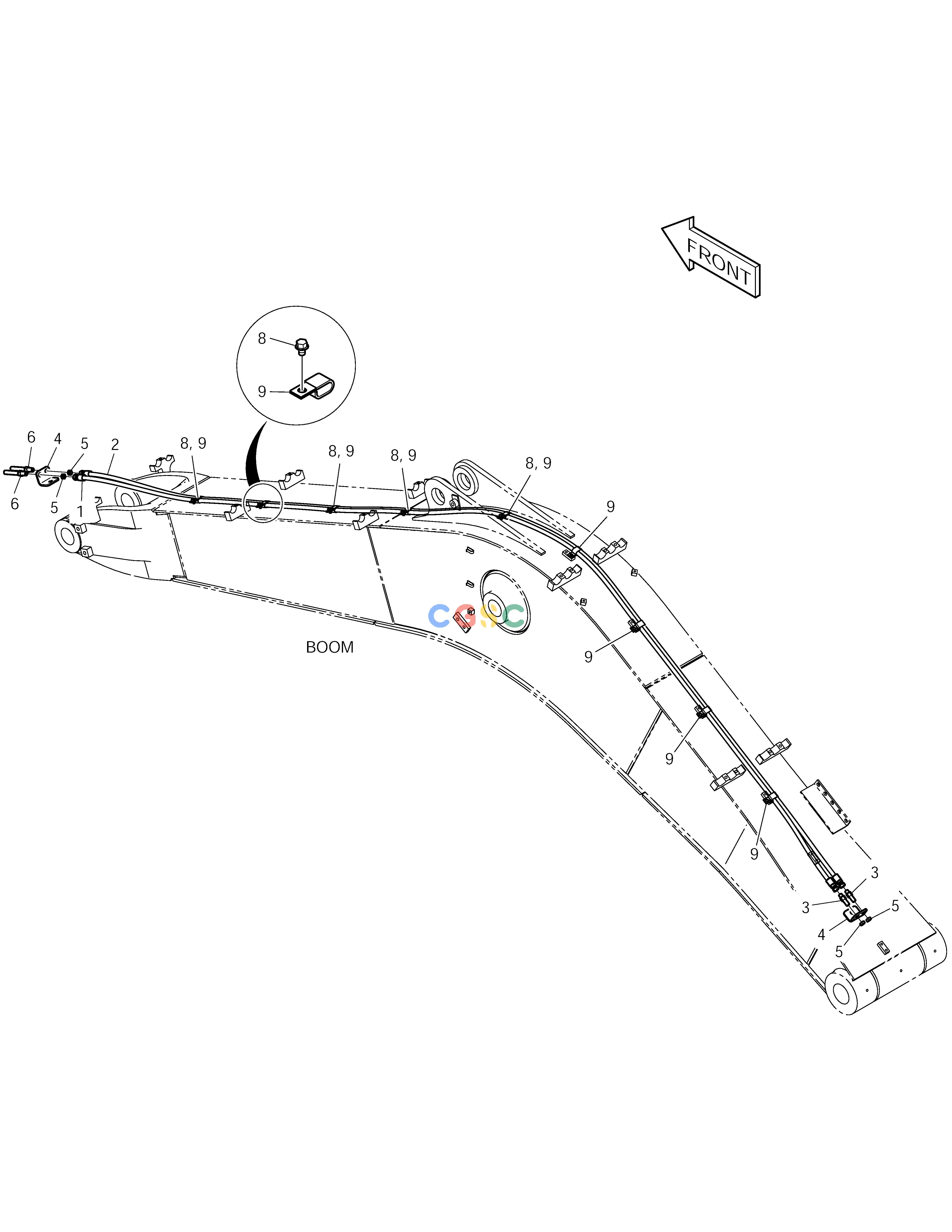

| -. | 400-01392B | [-] | BOOM PIPING-QUICK CLAMP | |
| 1. | DS2053799 | [1] | HOSE | |
| 2. | DS2053931 | [1] | HOSE | |
| 3. | DS2410007 | [2] | ADAPTER | |
| 4. | K1006957 | [2] | BRACKET | |
| 5. | 121-00010D7 | [4] | NUT | |
| 6. | K1000356 | [2] | ADAPTER | |
| 8. | K1001029 | [4] | BOLT | |
| 9. | DS2805009 | [9] | CLIP |
