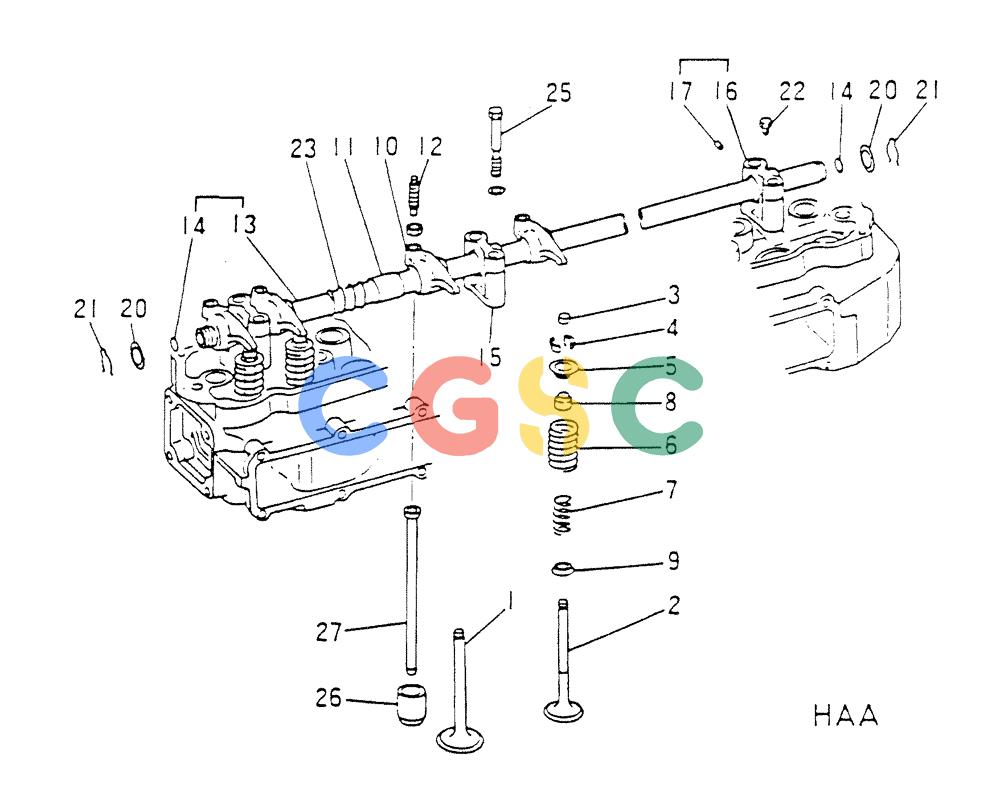

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (01-019) - VALVE GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
383 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME031938 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE,INLET, FOR M0 ONLY Superseded by part number: VAME170314 |
| 1. | VAME031937 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE,INLET, FOR M1 ONLY |
| 2. | VAME031940 | [6] | STD EXHAUST VALVE | KOBSTD ENGINE EXHAUST VALVE VALVE,EXH, FOR M0 ONLY Superseded by part number: VAME170337 |
| 2. | VAME031939 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE,EXH, FOR M1 ONLY |
| 3. | VAME020244 | [12] | CAP | KOBCAP,VALVE Superseded by part number: VAME017459 |
| 4. | VAME011227 | [24] | VALVE | KOBCOTTER.VALVE |
| 5. | VAME011268 | [12] | RETAINER | KOBRETAINER,UPPER |
| 6. | VAME029167 | [12] | SPRING | KOBSPRING,VALVE OUTER |
| 7. | VAME029102 | [12] | VALVE SPRING | KOBSPRING,VALVE INNER |
| 8. | VAME024108 | [12] | STEM SEAL SEAL,VALVE STEM | STEM SEAL SEAL,VALVE STEM |
| 9. | VAME011234 | [12] | RETAINER | KOBRETAINER,LOWER |
| 10-11. | VAME031855 | [12] | ROCKER ARM | KOBROCKER ASSY |
| 10. | NSS | [12] | NOT SOLD SEPARAT | CONROCKER |
| 11. | VAME061056 | [12] | BUSHING | KOBBUSHING |
| 12. | VAME041001 | [12] | SCREW | KOBSCREW,ADJUSTING Superseded by part number: 132503A1 |
| . . | VAMF430842 | [12] | NUT | KOBNUT 10 |
| 13-14. | VAME072020 | [1] | SHAFT | KOBROCKER SHAFT ASSY |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT,ROCKER |
| 14. | VAMF665503 | [2] | PLUG | KOBPLUG,EXPANSION |
| 15. | VAME031881 | [5] | U-BRACKET | KOBBRACKET,ROCKER SHAFT |
| 16-17. | VAME031882 | [1] | BRACKET, ROC ROCKER SHAFT BRACKET ASSY | BRACKET, ROC ROCKER SHAFT BRACKET ASSY |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET,ROCKER SHAFT |
| 17. | VAMH037061 | [1] | PLUG PLUG 6 | PLUG PLUG 6 |
| 20. | VA3110404600 | [2] | WASHER | KOBWASHER |
| 21. | VAMH006032 | [2] | SNAP RING | KOBRING,SNAP |
| 22. | VAMH001009 | [1] | SCREW | KOBSCREW,SET 6X11 |
| 23. | VAME031024 | [5] | SPRING | KOBSPRING,ROCKER SHAFT |
| 25. | VAMH000110 | [6] | SCREW | KOBBOLT 10X75 |
| . . | VAMF450006 | [6] | NUT | KOBWASHER,PLAIN 10 Superseded by part number: 133247A1 |
| 26. | VAME030850 | [12] | TAPPET | KOBTAPPET |
| 27. | VAME032585 | [12] | PUSH ROD | KOBPUSHROD Superseded by part number: VAME071930 |
