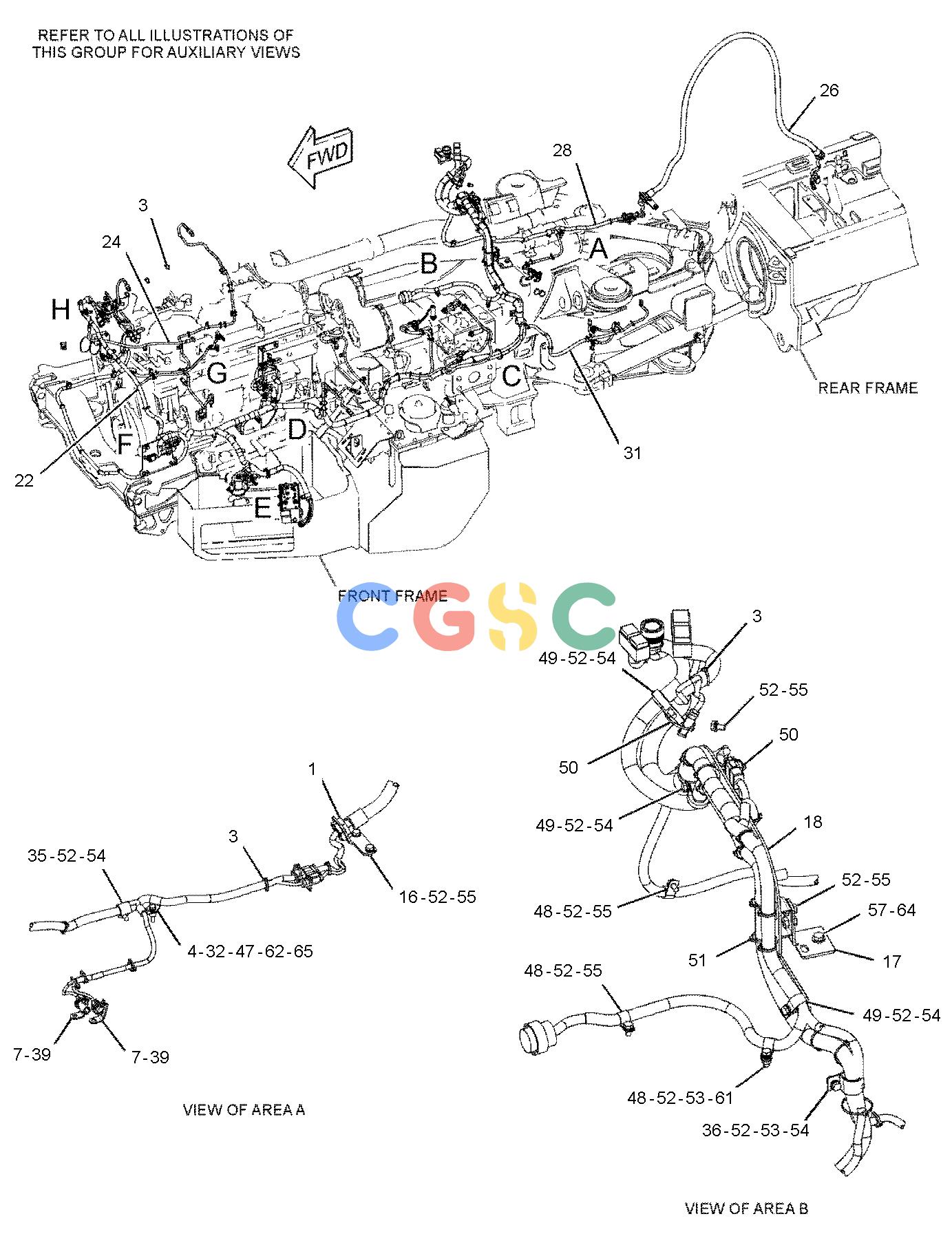

| | 340-4926Y | [1] | DISPLAY GP-CAMERA(WORK AREA VISUAL SYSTEM) | |
| | 260-0162Y | [1] | LAMP GP-FLOOD(24-VOLT) | |
| | 266-0130 | [1] | LAMP GP-DOME(CAB) | |
| | 292-8507 | [1] | LAMP(DOME) | |
| | 141-0275 | [1] | LEVER GP-STEERING COLUMN(RETARDER) | |
| | 244-6861 | [1] | SWITCH GP-PARKING BRAKE | |
| | 203-7154 | [1] | SWITCH AS(PARKING BRAKE) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9G-3695 | [1] | PLUG-SEAL | |
| | 172-7071 | [2] | SWITCH GP-PRESSURE(SERVICE BRAKE,STOP LIGHT) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8E-1118 | [1] | ANTENNA AS | |
| | 162-7264 | [1] | CABLE AS | |
| | 8D-6946 | [1] | FLASHER AS(24-VOLT)(TURN SIGNAL) | |
| | 235-2672 | [1] | HARNESS AS-CAB(PEDAL) | |
| | 8T-8729 | [11] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 245-0170 | [1] | RECEPTACLE AS(12-PIN) | |
| | 8T-8730 | [9] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-0196 | [2] | TERMINAL AS(16-GA) | |
| | 266-0129 | [1] | HARNESS AS-CAB(HEADLINER) | |
| | 8T-8729 | [11] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 245-0162 | [1] | PLUG AS(6-PIN) | |
| | 245-8026 | [2] | PLUG AS-CONNECTOR(2-PIN) | |
| | 8T-8737 | [5] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 245-0169 | [1] | RECEPTACLE AS-CONNECTOR(12-PIN) | |
| | 8T-8730 | [8] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 124-8616 | [2] | TERMINAL-RECEPTACLE(18-GA TO 22-GA) | |
| | 124-8617 | [2] | TERMINAL-RECEPTACLE(18-GA TO 22-GA) | |
| | 301-8335 | [1] | HARNESS AS-CAB(MAIN) | |
| | 180-9214 | [3] | NUT(1-11/16-18-THD) | |
| | 8T-8729 | [128] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 276-1151 | [4] | PIN-CONNECTOR(8-GA TO 10-GA) | |
| | 147-1445 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | | | (EACH PLUG AS INCLUDES) |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 245-0159 | [2] | PLUG AS | |
| | 245-0162 | [2] | PLUG AS(6-PIN) | |
| | 245-0164 | [2] | PLUG AS(12-PIN) | |
| | 8T-8737 | [100] | PLUG-SEAL | |
| | 274-8267 | [2] | PLUG(4-GA) | |
| | 272-2840 | [1] | RECEPTACLE AS-CONNECTOR(31-PIN) | |
| | 245-0165 | [1] | RECEPTACLE AS(2-PIN) | |
| | 245-0167 | [1] | RECEPTACLE AS-CONNECTOR(6-PIN) | |
| | 245-0169 | [1] | RECEPTACLE AS-CONNECTOR(12-PIN) | |
| | 245-8020 | [1] | RECEPTACLE AS | |
| | 245-8022 | [1] | RECEPTACLE AS | |
| | 273-6316 | [2] | RECEPTACLE AS-CONNECTOR(9-PIN) | |
| | 169-0705 | [12] | SEAL | |
| | 8T-8730 | [37] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [1] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 180-9340 | [87] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 131-1490 | [3] | TERMINAL AS(6-GA TO 8-GA) | |
| | | | (EACH INCLUDES) |
| | 6H-3587 | [1] | TERMINAL-RING(6-GA TO 8-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| | 364-2505 | [1] | HARNESS AS-OPERATOR CONTROLS(GEARSHIFT) | |
| | 180-9214 | [3] | NUT(1-11/16-18-THD) | |
| | 8T-8729 | [33] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 230-4013 | [2] | PLUG AS-CONNECTOR(3-PIN) | |
| | | | (EACH INCLUDES) |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 272-2838 | [1] | PLUG AS-CONNECTOR(31-PIN) | |
| | 281-8803 | [1] | PLUG AS-CONNECTOR(3-PIN) | |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 245-0161 | [2] | PLUG AS(4-PIN) | |
| | 245-0162 | [2] | PLUG AS(6-PIN) | |
| | 245-0164 | [1] | PLUG AS(12-PIN) | |
| | 8T-8737 | [15] | PLUG-SEAL | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 272-2840 | [1] | RECEPTACLE AS-CONNECTOR(31-PIN) | |
| | 245-0167 | [1] | RECEPTACLE AS-CONNECTOR(6-PIN) | |
| | 272-2843 | [2] | RECEPTACLE AS-CONNECTOR(47-PIN) | |
| | 169-0705 | [34] | SEAL | |
| | 8T-8730 | [56] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-3402 | [9] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 266-0124 | [1] | HARNESS AS-RADIO | |
| | 180-9214 | [1] | NUT(1-11/16-18-THD) | |
| | 8T-8729 | [31] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1054 | [1] | PLUG AS-CONNECTOR(4-PIN) | |
| | 245-0159 | [2] | PLUG AS | |
| | 245-0160 | [1] | PLUG AS(3-PIN) | |
| | 245-0162 | [1] | PLUG AS(6-PIN) | |
| | | [1] | PLUG AS(8-PIN) |
| | 245-0164 | [2] | PLUG AS(12-PIN) | |
| | 8T-8737 | [13] | PLUG-SEAL | |
| | 272-2840 | [1] | RECEPTACLE AS-CONNECTOR(31-PIN) | |
| | 245-0168 | [1] | RECEPTACLE AS-CONNECTOR(8-PIN) | |
| | 8T-8730 | [40] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-4571 | [4] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 9X-1056 | [4] | TERMINAL-RECEPTACLE(14-GA TO 16-GA) | |
| | 163-6088 | [1] | MODULE AS(INTERMITTENT WIPER) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 3E-5239 | [1] | RELAY AS(24-VOLT)(HEADLIGHTS) | |
| | 124-6046 | [2] | SPEAKER AS-RADIO | |
| | 7G-1060 | [1] | STRAP AS-GROUND | |
| | 147-1380 | [1] | SWITCH AS-FOOT(DIFFERENTIAL LOCK) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 246-2669 | [1] | SWITCH GP-MULTIFUNCTION(TURN SIGNAL, WIPER, WASHER) | |
| | | | -OR- |
| | 348-6692 | [1] | SWITCH AS-MULTIFUNCTION(TURN SIGNAL, WIPER, WASHER) | |
| | 9D-4068 | [1] | SWITCH AS-PUSH BUTTON(DOME LIGHT) | |
| | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| | 8T-0289M | [2] | BOLT(M5X0.8X20-MM) | |
| | 8T-4137M | [12] | BOLT(M10X1.5X20-MM) | |
| | 8T-4171M | [2] | BOLT(M6X1X12-MM) | |
| | 095-0642M | [2] | BOLT-SOCKET HEAD(M5X0.8X50-MM) | |
| | 273-9761 | [1] | BRACKET | |
| | 4D-7794 | [1] | CLIP | |
| | 4P-7581 | [2] | CLIP(LADDER) | |
| | 4P-8134 | [3] | CLIP(LADDER) | |
| | 5P-9085 | [2] | CLIP(LOOP) | |
| | 6D-3479 | [2] | CLIP(LOOP) | |
| | 7C-4354 | [2] | CLIP | |
| | 8M-2773 | [3] | CLIP(LOOP) | |
| | 124-0174 | [1] | CLIP(LOOP) | |
| | 340-7160 | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT) | |
| | 5P-6419 | [1] | GROMMET | |
| | 5P-8525 | [1] | GROMMET | |
| | 116-5710 | [1] | GROMMET | |
| | 292-4727 | [1] | PLATE | |
| | 283-1433 | [1] | PLATE-MOUNTING | |
| | 4V-6981 | [2] | SCREW-BUTTON HEAD(1/4-20X0.75-IN) | |
| | 8T-0337M | [4] | SCREW-MACHINE(M4X0.7X12-MM) | |
| | 8T-6411M | [1] | SCREW-MACHINE(M6X1X12-MM) | |
| | M | [8] | SCREW-PAN HEAD(M4X0.7X16-MM) |
| | 9X-2042M | [4] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| | 096-4833M | [2] | BOLT-SOCKET HEAD(M5X0.8X20-MM) | |
| | | | -OR- |
| | 198-9707M | [2] | SCREW-TRUSS HEAD(M6X1X35-MM) | |
| | 189-3744 | [1] | SEAL | |
| | 3J-1907 | [2] | SEAL-O-RING | |
| | 3S-2093 | [59] | STRAP-CABLE | |
| | 7K-1181 | [2] | STRAP-CABLE | |
| | 3U-4762D | | TRIM-DASH(0.4-M) | |
| | 8C-9660 | [12] | WASHER(4.6X7.9X0.8-MM THK) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 161-6987 | [2] | WASHER-HARD(5.2X16X1.5-MM THK) | |
| | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
