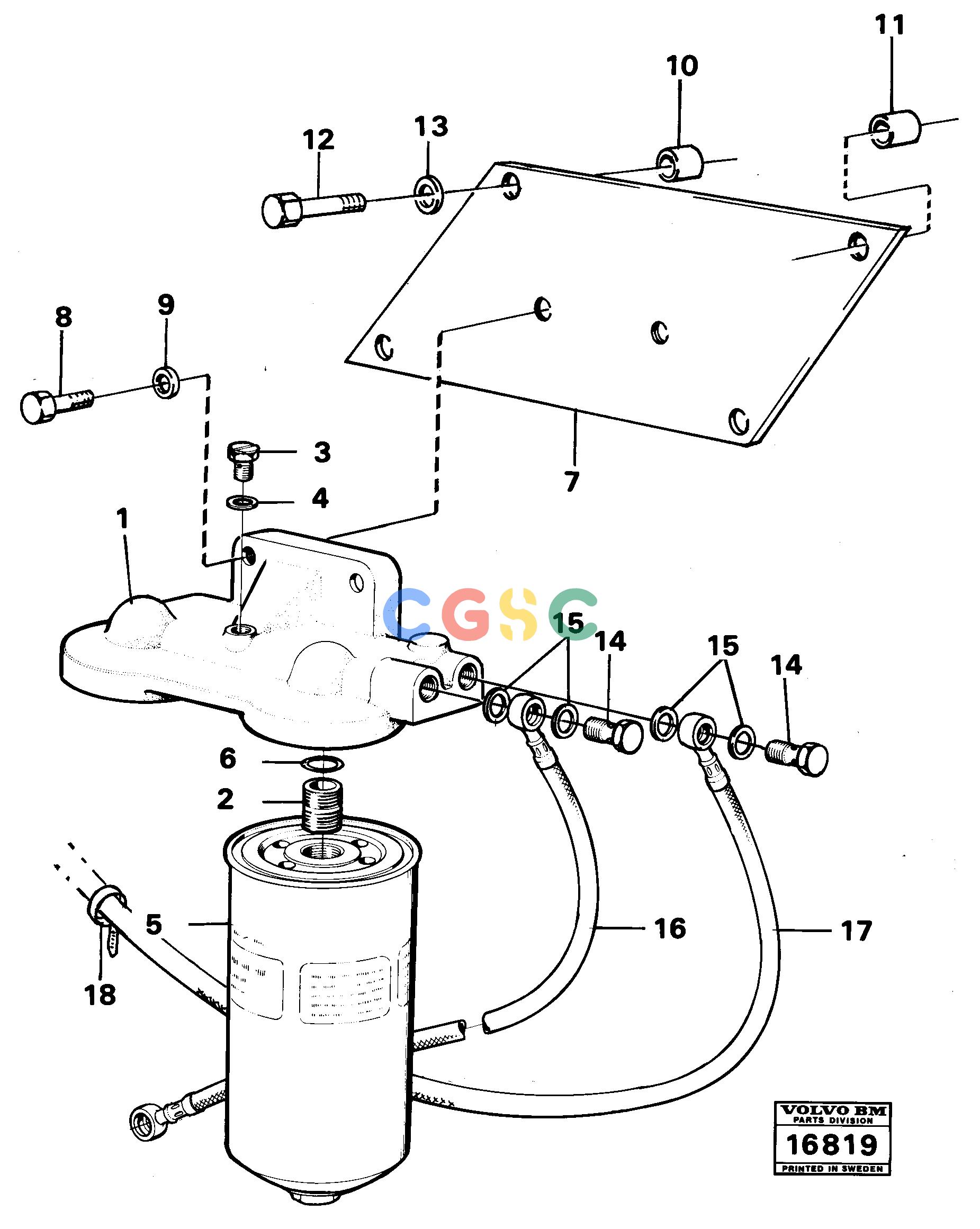

沃尔沃零件查询4600B Fuel filter.4600B NoneNone99126Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE795210
|
[0002] |
Fuel filter
|
|
| 6. |
VOE949658
|
[0002] |
O-ring
|
|
| 7. |
|
[0001] |
Bracket
|
|
| 8. |
VOE13970948
|
[0002] |
Hexagon screw
|
|
| 9. |
VOE941908
|
[0002] |
Spring washer
|
|
| 1. |
VOE787029
|
[0001] |
Cover
|
|
| 10. |
|
[0002] |
Spacer ring
|
|
| 11. |
|
[0002] |
Spacer ring
|
|
| 12. |
VOE959793
|
[0003] |
Hexagon screw
|
|
| 13. |
VOE13941907
|
[0004] |
Washer
|
|
| 14. |
VOE60113509
|
[0002] |
Hollow screw
|
|
| 15. |
VOE13947621
|
[0004] |
Plane gasket
|
|
| 16. |
VOE4774631
|
[0001] |
Fuel hose
|
|
| 17. |
VOE4774616
|
[0001] |
Fuel hose
|
|
| 18. |
VOE4881440
|
[0005] |
Cable tie
|
|
| 2. |
VOE781644
|
[0002] |
Nipple
|
|
| 3. |
VOE11000051
|
[0001] |
Screw
|
|
| 4. |
VOE957171
|
[0001] |
Gasket
|
|
