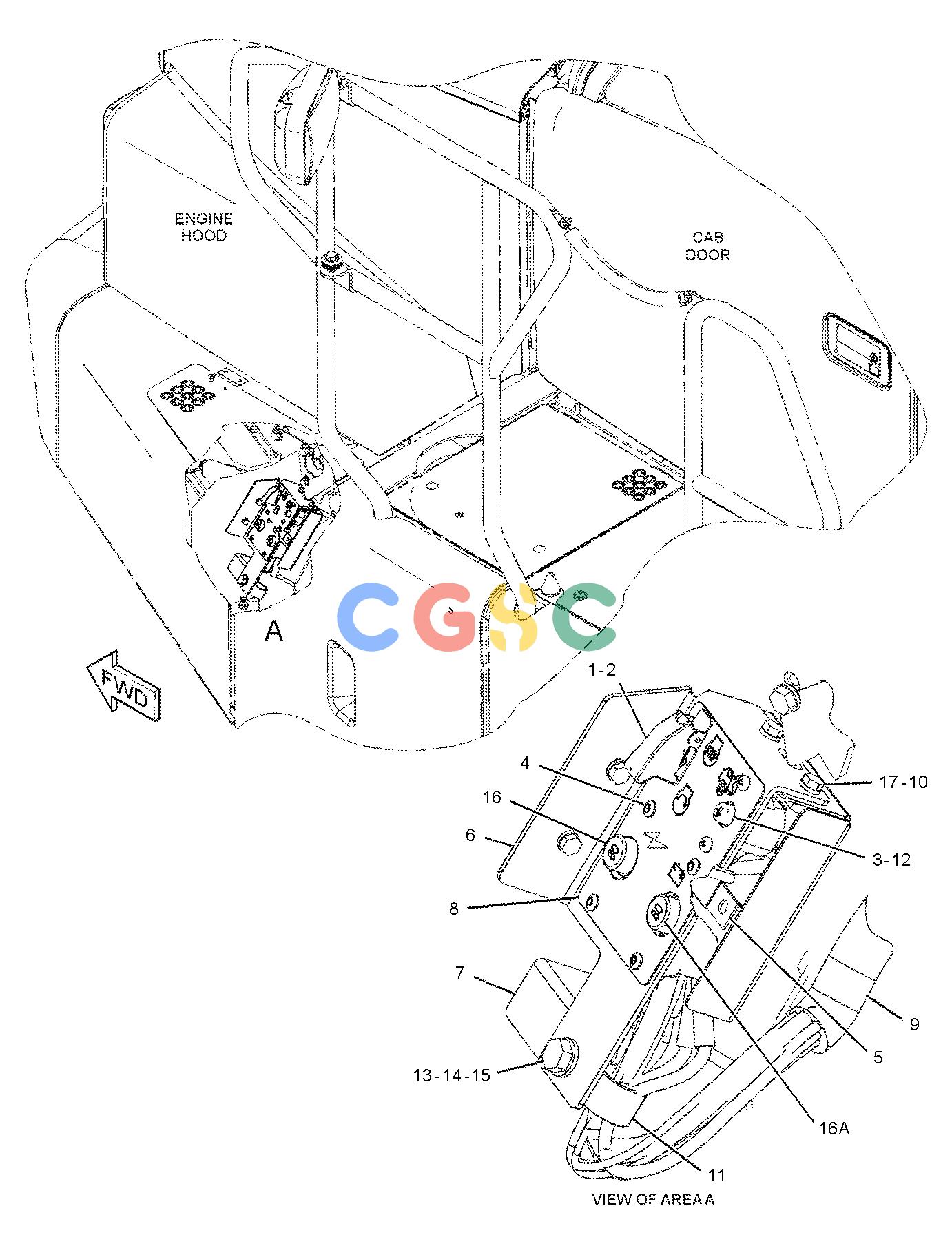

卡特零件查询（725） 276-0149: PANEL GP-CIRCUIT BREAKER
广数供应链运营团队, 14 02月, 2025，浏览：
345 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5169 | [1] | GUARD-SWITCH | |
| 2. | 4D-1836 | [1] | SWITCH-TOGGLE(ENGINE SHUTDOWN) | |
| 3. | 6T-3644 | [1] | CIRCUIT BREAKER AS(20-AMPERE)(HOOD) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 4. | 7U-4891 | [4] | SCREW(10-32X1-IN) | |
| 5. | 7V-9275 | [1] | STRAP | |
| 6. | 184-4549 | [1] | PLATE | |
| 7. | 184-4573 | [1] | PLATE AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| 8. | 184-4578 | [1] | PLATE-IDENTIFICATION(CIRCUIT BREAKER) | |
| 9. | 270-7450 | [1] | HARNESS AS-PANEL(CIRCUIT BREAKER) | |
| | 6P-0699 | [1] | GROMMET | |
| | 186-3735 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 274-8261 | [1] | PLUG(RELAY) | |
| | 8T-8737 | [75] | PLUG-SEAL | |
| | 180-9340 | [17] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 186-3736 | [14] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [48] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 8N-1549 | [1] | SOCKET-CONNECTOR(4-GA) | |
| | 126-1768 | [4] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 102-8802 | [3] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-0141 | [1] | PLUG AS-CONNECTOR(40-PIN) | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 160-7689 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 127-5483 | [1] | PLUG AS-CONNECTOR(1-PIN) | |
| | 273-6315 | [1] | PLUG AS(9-PIN) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2260 | [2] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [6] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 10. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| 11. | 7C-4354 | [1] | CLIP | |
| 12. | 7U-4892 | [2] | SCREW(8-32X0.75-IN) | |
| 13. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 15. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 16. | 9S-4693 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(ALTERNATOR) | |
| 16A. | 9S-4693 | [1] | CIRCUIT BREAKER AS(80-AMPERE)(MAIN) | |
| | | | (EACH INCLUDES) |
| | 7X-3182 | [2] | BOLT(1/4-28X0.5-IN) | |
| | | | (FOR TERMINAL THICKNESS OF 3-MM MAX) |
| | | | -OR- |
| | 0S-1570 | [2] | BOLT(1/4-28X0.625-IN) | |
| | | | (FOR TERMINAL THICKNESS 4.4-MM TO 6-MM) |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 253-2111 | [2] | LOCKWASHER | |
| 17. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
