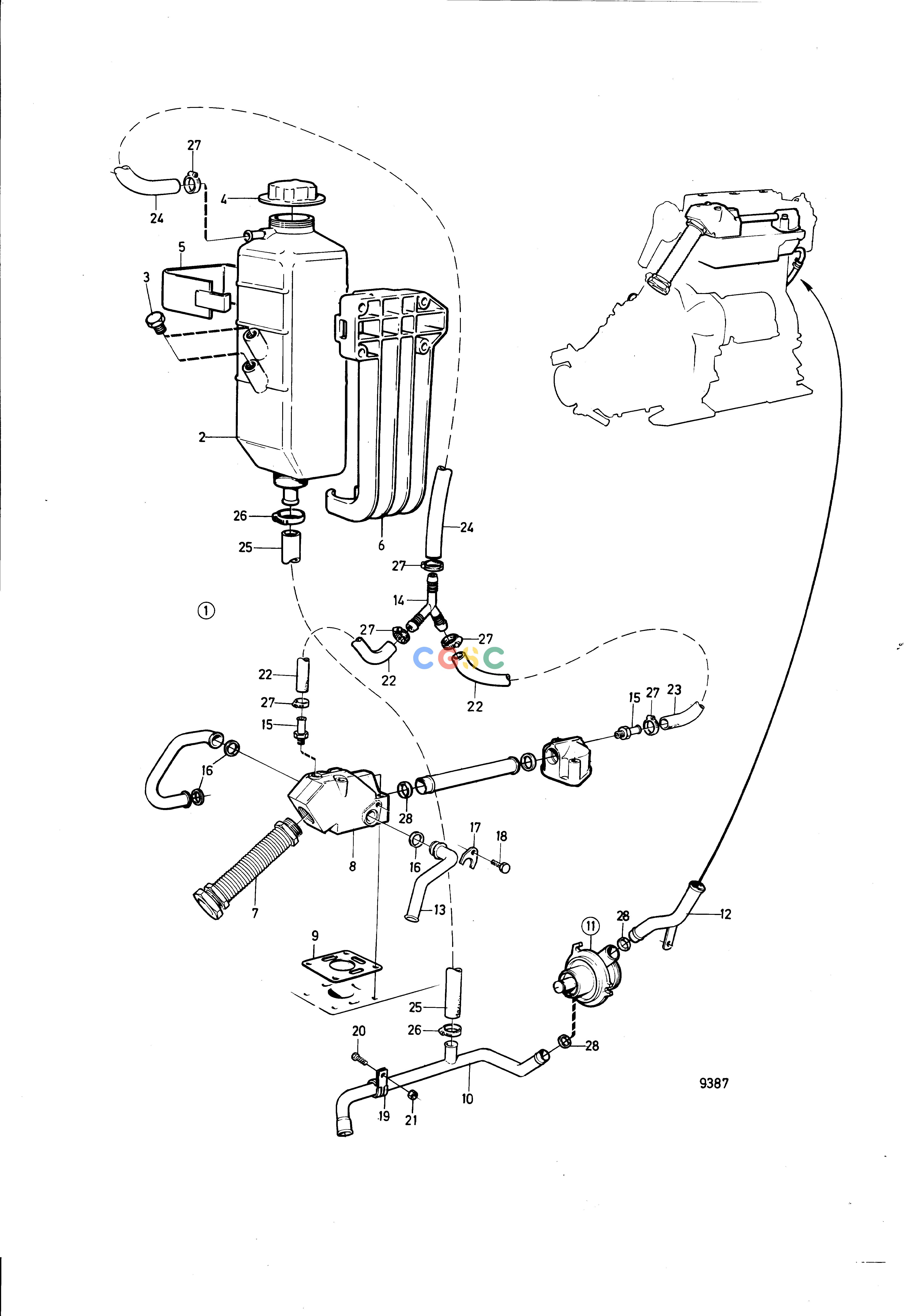

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentKeel Cooling KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
392 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858451
|
[1] |
Keel cooling kit
|
Only for product no.868006,868007,868028,868029,868031, 868032
|
| 2. |
843759
|
[1] |
Expansion tank
|
|
| 3. |
947660
|
[2] |
Plug
|
|
| 4. |
1542591
|
[1] |
Pressure cap
|
|
| 5. |
843266
|
[1] |
Clamp
|
|
| 6. |
843260
|
[1] |
Bracket
|
|
| 7. |
833841
|
[1] |
Compensator
|
|
| 8. |
858413
|
[1] |
Exhaust pipe elbow
|
|
| 9. |
840902
|
[1] |
Gasket
|
|
| 10. |
858711
|
[1] |
Coolant pipe
|
|
| 11. |
858408
|
[1] |
Sea water pump
|
|
| 11. |
|
|
|
See group 2B
|
| 12. |
858761
|
[1] |
Tube
|
|
| 13. |
840732
|
[1] |
Hose connection
|
|
| 14. |
840179
|
[1] |
Hose coupling
|
|
| 15. |
858185
|
[2] |
Hose coupling
|
|
| 16. |
418445
|
[2] |
Sealing ring
|
|
| 17. |
840740
|
[1] |
Clamp
|
|
| 18. |
955269
|
[1] |
Hexagon screw
|
|
| 19. |
952629
|
[1] |
Clamp
|
|
| 20. |
947542
|
[1] |
Flange screw
|
|
| 21. |
945407
|
[1] |
Flange nut
|
|
| 22. |
942700
|
[1] |
Hose
|
|
| 23. |
942700
|
[1] |
Hose
|
|
| 24. |
942700
|
[1] |
Hose
|
|
| 25. |
952969
|
[1] |
Hose
|
|
| 26. |
961665
|
[2] |
Hose clamp
|
|
| 27. |
961662
|
[6] |
Hose clamp
|
|
| 28. |
418411
|
[3] |
Sealing ring
|
|
