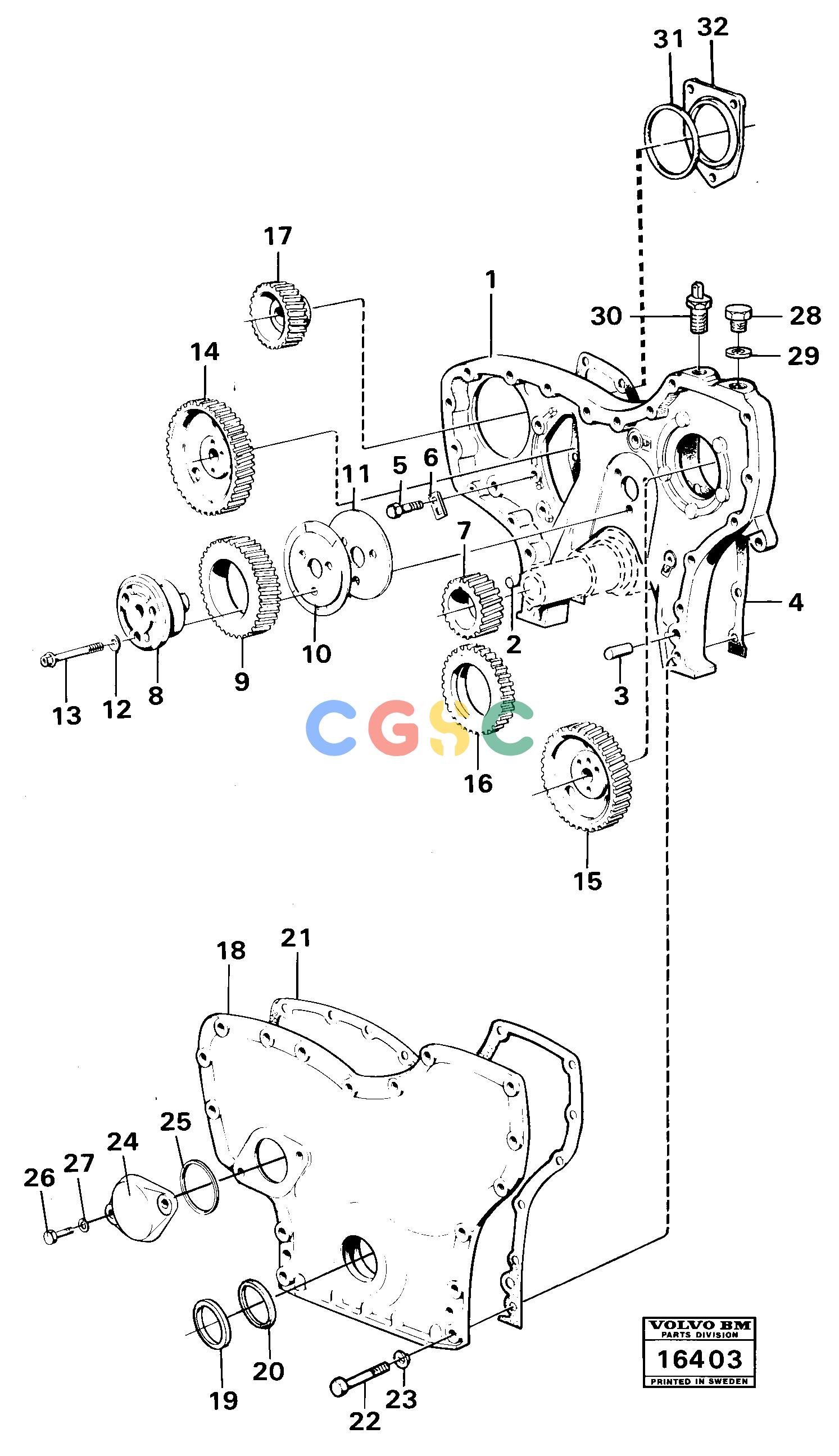

沃尔沃零件查询5350 Timing gears and timing gear casing5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
273 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE955525
|
[0005] |
Hexagon screw
|
|
| 6. |
VOE941571
|
[0005] |
Lock washer
|
|
| 7. |
|
[0001] |
Crankshaft gear
|
|
| 8. |
VOE422766
|
[0001] |
Pin
|
|
| 9. |
VOE467461
|
[0001] |
Idler gear
|
|
| 1. |
VOE466193
|
[0001] |
Timing gear casing
|
|
| 10. |
VOE478951
|
[0001] |
Thrust washer
|
|
| 11. |
VOE467528
|
[0001] |
Bearing shield
|
|
| 12. |
VOE942180
|
[0003] |
Disc spring
|
|
| 13. |
VOE422316
|
[0003] |
Screw
|
|
| 14. |
|
[0001] |
Camshaft gear
|
|
| 15. |
|
[0001] |
Gear
|
SEE GROUP 23
|
| 16. |
|
[0001] |
Oilpump gear
|
|
| 17. |
|
[0001] |
Compressor gear
|
SEE GROUP 51
|
| 18. |
VOE4770256
|
[0001] |
Cap
|
|
| 19. |
VOE477118
|
[0001] |
Sealing ring
|
|
| 2. |
VOE13941511
|
[0001] |
Pin
|
|
| 20. |
VOE477118
|
[0001] |
Sealing ring
|
|
| 21. |
VOE466194
|
[0001] |
Gasket
|
|
| 22. |
VOE955526
|
[0001] |
Hexagon screw
|
L=51
|
| |
VOE940186
|
[0010] |
Hexagon screw
|
L=38
|
| |
VOE955530
|
[0007] |
Hexagon screw
|
L=83
|
| 23. |
VOE13941907
|
[0018] |
Washer
|
|
| 24. |
VOE465057
|
[0001] |
Cover
|
|
| 25. |
VOE925094
|
[0001] |
O-ring
|
|
| 26. |
VOE955535
|
[0001] |
Hexagon screw
|
L=32
|
| |
VOE955539
|
[0001] |
Hexagon screw
|
L=64
|
| 3. |
VOE13941510
|
[0001] |
Pin
|
|
| 27. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 28. |
VOE961896
|
[0001] |
Plug
|
|
| 29. |
VOE13947628
|
[0001] |
Plane gasket
|
|
| 30. |
VOE1578183
|
[0001] |
Tachometer sensor
|
|
| 31. |
VOE925059
|
[0001] |
O-ring
|
|
| 32. |
VOE420178
|
[0001] |
Cover
|
|
| 4. |
VOE421057
|
[0001] |
Gasket
|
|
