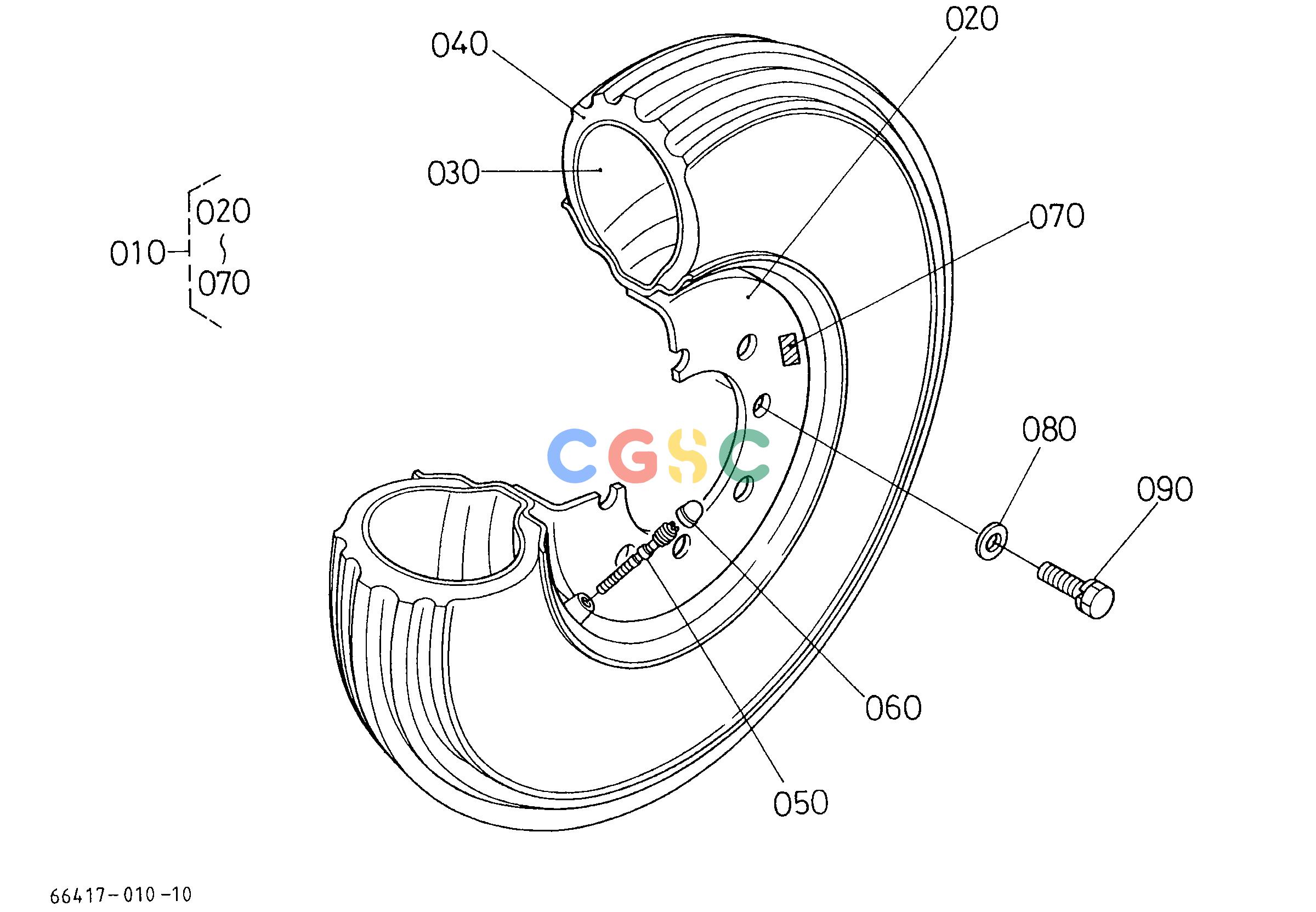

久保田零件查询T07701 FRONT WHEEL (4.50-10) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
858 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641457800
|
[2] |
ASSY TIRE FRONT
|
0.0000(lbs); 0.000
|
| 020. |
6641657810
|
[2] |
WHEEL
|
7.7000(lbs); 3.500
|
| 030. |
9201461120
|
[4] |
TUBE
|
1.2100(lbs); 0.550
|
| 040. |
9601443130
|
[2] |
TIRE
|
7.7000(lbs); 3.500
|
| 050. |
3215027740
|
[2] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 060. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 070. |
6641457820
|
[2] |
LABEL
|
0.0000(lbs); 0.000
|
| 080. |
0401360120
|
[8] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 090. |
0112351225
|
[8] |
BOLT
|
0.0880(lbs); 0.040
|
