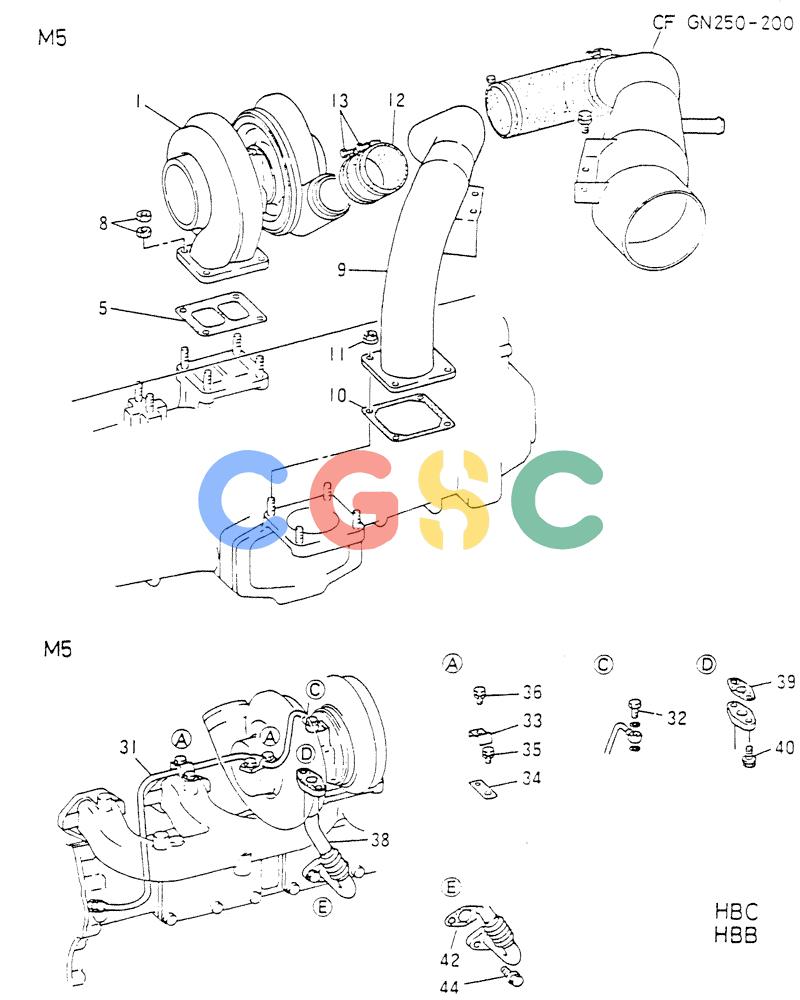

神钢零件查询(6D14-T) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (01-027) - TURBO-CHARGER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME047102 | [1] | TURBOCHARGER | KOBTURBOCHARGER ASSY TD07-22A |
| 5. | VA3003291200 | [1] | GASKET | KOBGASKET Superseded by part number: VAME150877 |
| 8. | VAMH004106 | [8] | NUT NUT | NUT NUT |
| 9. | VAME047116 | [1] | PIPE,AIR | |
| 10. | VA3096603701 | [1] | GASKET | KOBGASKET Superseded by part number: VAME073946 |
| 11. | VAMF434105 | [4] | NUT | KOBNUT,FLANGE 10 |
| 12. | VAME053391 | [1] | HOSE HOSE,RUBBER | HOSE HOSE,RUBBER |
| 13. | VAMH021321 | [2] | CLAMP | KOBCLAMP,HOSE Superseded by part number: 134981A1 |
| 31. | VAME047118 | [1] | PIPE, OIL PIPE,OIL TURBOCHARGER INLET | PIPE, OIL PIPE,OIL TURBOCHARGER INLET |
| 32. | VAMF650102 | [1] | SCREW | KOBBOLT,EYE 10X20 |
| . . | VAMF660063 | [2] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 33. | VA3004901300 | [2] | CLAMP | KOB |
| 34. | VAMH023119 | [2] | BRACKET | KOBSTAY Superseded by part number: 133324A1 |
| 35. | VAMH000676 | [2] | SCREW | KOBBOLT 10X20 |
| 36. | VAMF140205 | [2] | BOLT | KOBBOLT,FLANGE 6X16 |
| 38. | VAME047115 | [1] | PIPE,OIL TURBOCHARGER OUTLET | |
| 39. | VA3123612600 | [1] | GASKET | KOBGASKET Superseded by part number: 133176A1 |
| 40. | VAMH000726 | [2] | BOLT | KOBBOLT,FLANGE 10X22 |
| 42. | VA3123612600 | [1] | GASKET | KOBGASKET Superseded by part number: 133176A1 |
| 44. | VAMH000726 | [2] | BOLT | KOBBOLT,FLANGE 10X22 |
