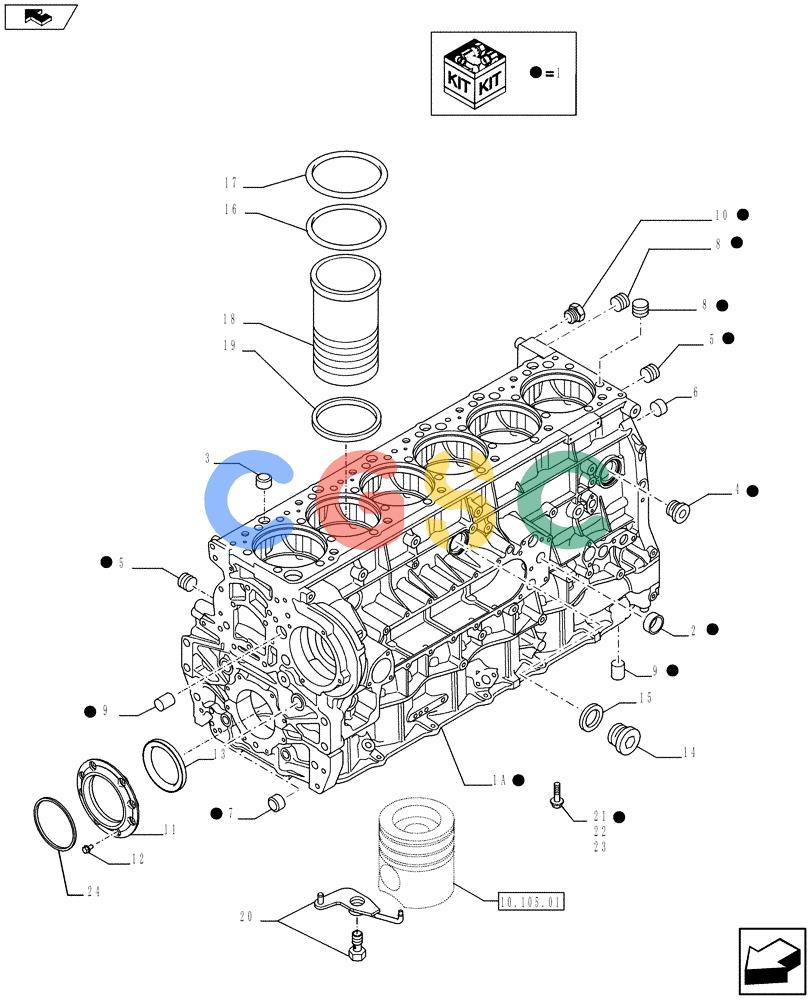

纽荷兰零件查询(F3DFA613B E003) - ENGINE 504384985 - 84250911 W/BRAKE (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504386610/615/630/640) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504387134 | [1] | ASSY Contains Ref.1A, 2, 4 - 10, 21 | CYLINDER BLOCK |
| 1A. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 2. | 16991370 | [2] | PLUG | TOR Superseded by part number: 14282970 |
| 3. | 98472271 | [1] | PLUG | TOR Superseded by part number: 504051237 |
| 4. | 504120669 | [1] | PLUG | TOR |
| 5. | 504051238 | [3] | PLUG,Threaded, 3/8" Dia | TOR |
| 6. | 500368916 | [1] | DOWEL | TOR |
| 7. | 16990870 | [3] | PLUG | TOR Superseded by part number: 14282470 |
| 8. | 504138062 | [3] | PLUG | TOR |
| 9. | 99467554 | [4] | DOWEL | TOR |
| 10. | 99433597 | [3] | SCREW | TOR |
| 10. | 504051237 | [1] | PLUG | TOR |
| 11. | 504387089 | [1] | | COVER |
| 12. | 16586225 | [8] | BOLT,M8 x 16mm | TOR |
| 13. | 17292781 | [1] | O-RING | TOR |
| 14. | 4665029 | [1] | PLUG | TOR |
| 15. | 99469382 | [1] | SEAL | TOR |
| 16. | 99455400 | [6] | SEALING RING | TORSEALRING |
| 17. | 99455401 | [12] | SEALING RING | TORSEALRING |
| 18. | 504323994 | [6] | | ENGINE CYLINDER LINER |
| 19. | 99448193 | [6] | SHIM,0.08mm Thk | TOR |
| 19. | 99448192 | [6] | SHIM,0.10mm Thk | TOR |
| 19. | 99448190 | [6] | SHIM,0.12mm Thk | TOR |
| 19. | 500378983 | [6] | SHIM,0.14mm Thk | TOR |
| 20. | 504314362 | [6] | LUBE OIL JET NOZZLE | LUBE OIL NOZZLE |
| 21. | 504108192 | [14] | SCREW,Flng, M18 x 2 x 196mm | TOR |
| 22. | 99432869 | [25] | SCREW | TOR |
| 23. | 99433863 | [1] | SCREW | TOR |
| 24. | 40102683 | [1] | GASKET | TOR Superseded by part number: 5801625923 |
