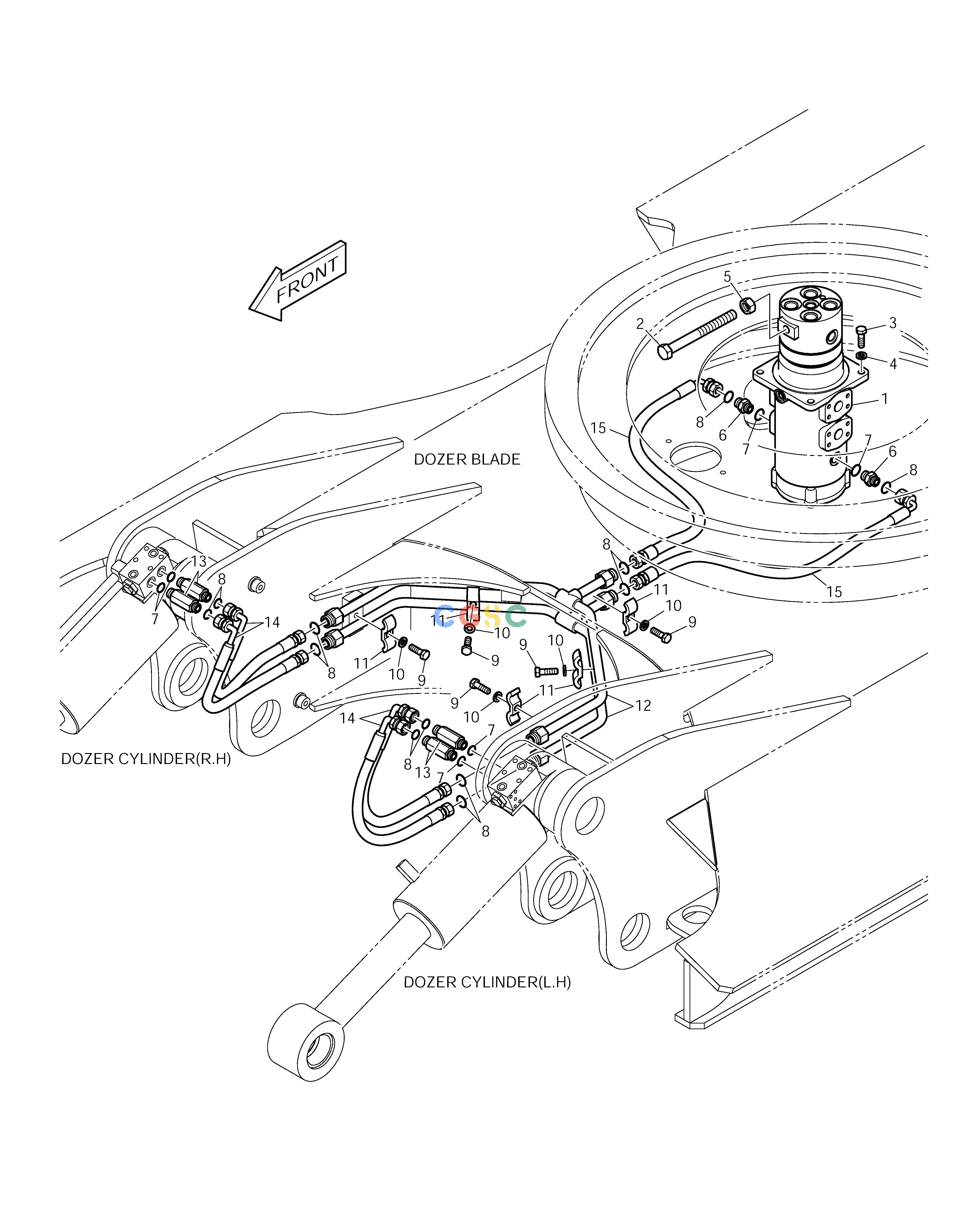

斗山零件查询DOZER PIPING DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
863 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
9400-1449
|
[-] |
BLADE PIPING
|
|
| 1. |
K1011859A
|
[1] |
CENTER JOINT
|
|
| 10. |
S5102703
|
[5] |
WASHER
|
|
| 11. |
2124-1340D3
|
[5] |
CLAMP;PIPE
|
|
| 12. |
9140-1053
|
[2] |
PIPE
|
|
| 13. |
2181-4133D46
|
[4] |
ADAPTER
|
|
| 14. |
9184-1052D65
|
[4] |
HOSE
|
|
| 15. |
DS2013798
|
[2] |
HOSE
|
|
| 2. |
S0572166
|
[1] |
BOLT
|
|
| 3. |
S0515266
|
[4] |
BOLT
|
|
| 4. |
S5102703
|
[4] |
WASHER
|
|
| 5. |
S4013133
|
[1] |
NUT
|
|
| 6. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 7. |
S8000181
|
[6] |
O-RING
|
|
| 8. |
S8030081
|
[12] |
O-RING
|
|
| 9. |
S0560553
|
[5] |
BOLT M12X1.75X40
|
|
