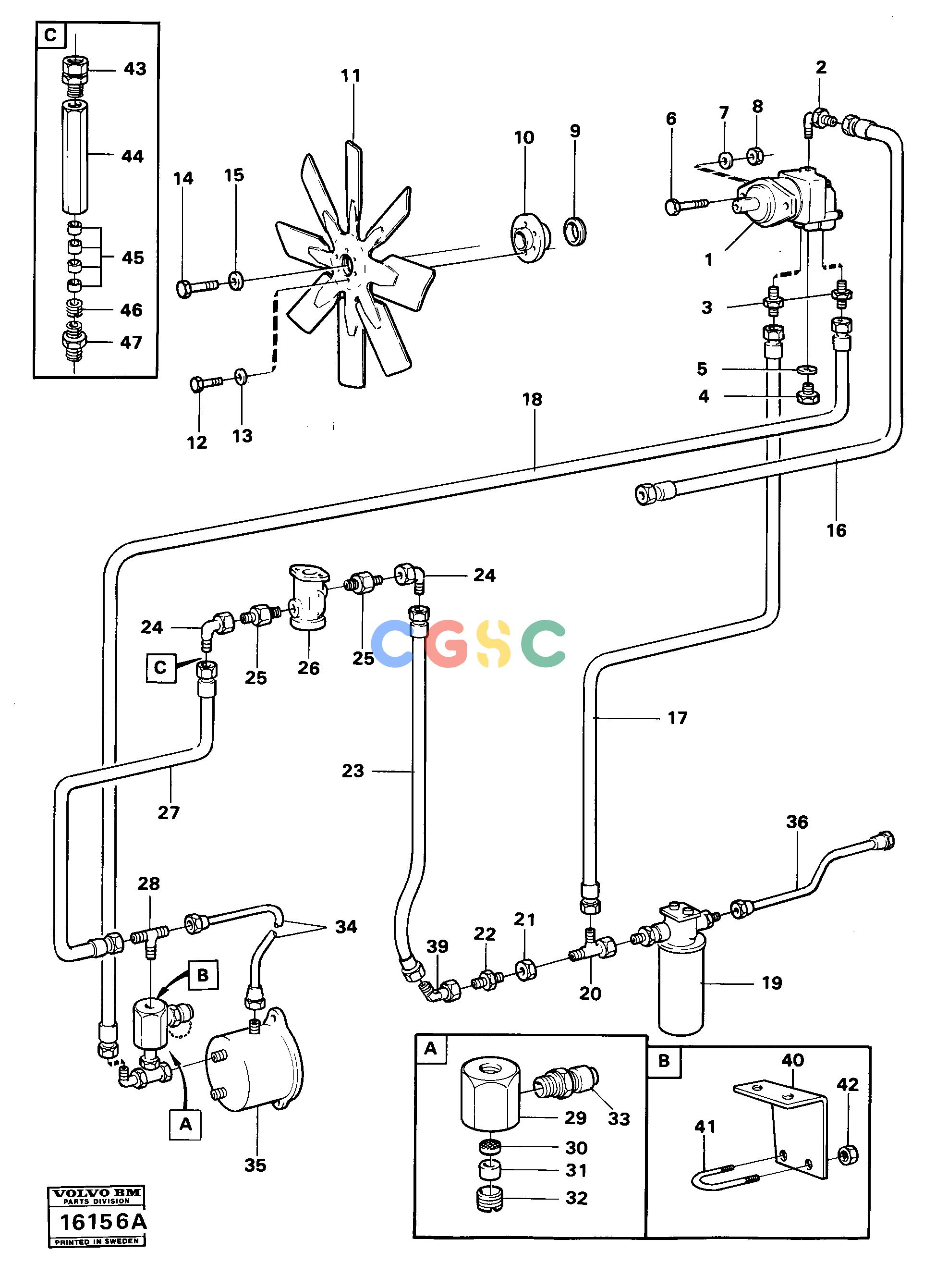

沃尔沃零件查询5350 Fan,fitting and drive5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
753 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13945653
|
[0001] |
Plane gasket
|
SER NO -1290
|
| 6. |
VOE13970974
|
[0002] |
Hexagon screw
|
|
| 7. |
VOE60110353
|
[0002] |
Washer
|
|
| 8. |
VOE971099
|
[0002] |
Flange lock nut
|
|
| 9. |
VOE13946891
|
[0001] |
Sealing ring
|
|
| 1. |
VOE3703460
|
[0001] |
Fan motor
|
SEE GROUP 91
|
| 10. |
VOE4821390
|
[0001] |
Hub
|
|
| 11. |
VOE1674069
|
[0001] |
Fan
|
|
| 12. |
VOE955656
|
[0001] |
Hexagon screw
|
|
| 13. |
VOE4823429
|
[1] |
Washer
|
|
| 14. |
VOE13940115
|
[6] |
Screw
|
|
| 15. |
VOE976945
|
[6] |
Washer
|
|
| 16. |
VOE931052
|
[1] |
Hose assembly
|
|
| 17. |
VOE931053
|
[1] |
Hose assembly
|
|
| 18. |
VOE931064
|
[1] |
Hose assembly
|
|
| 19. |
|
[1] |
Oil filter
|
|
| 2. |
VOE4821837
|
[0001] |
L-connection
|
|
| 20. |
VOE4821858
|
[1] |
T-nipple
|
|
| 21. |
VOE4821900
|
[1] |
Nut
|
|
| 22. |
VOE4821848
|
[1] |
Nipple
|
|
| 23. |
VOE932384
|
[1] |
Hose assembly
|
SER NO -1551
|
| |
VOE931342
|
[1] |
Hose assembly
|
SER NO 1552-
|
| 24. |
VOE4821879
|
[2] |
Clutch
|
SER NO -1557
|
| |
VOE4931556
|
[2] |
Fitting
|
SER NO 1558 - 1616
|
| |
VOE4931556
|
[0002] |
Fitting
|
SER NO 1800 -
|
| |
VOE993320
|
[0001] |
O-ring
|
|
| 25. |
VOE4821831
|
[0002] |
Nipple
|
SER NO -1557
|
| 26. |
VOE11049702
|
[0001] |
Valve
|
|
| 27. |
VOE932384
|
[0001] |
Hose assembly
|
SER NO 1269-
|
| 28. |
VOE931244
|
[0001] |
T-nipple
|
SER NO - 1616, 2124 -
|
| |
VOE931208
|
[0001] |
O-ring
|
|
| |
VOE931215
|
[0001] |
Back-up ring
|
|
| |
VOE4940686
|
[0001] |
Nipple
|
SER NO 1800 - 2123
|
| 29. |
VOE4821812
|
[0001] |
Reduction
|
|
| 3. |
VOE4823487
|
[0002] |
Nipple
|
|
| 30. |
VOE4881697
|
[0001] |
Strainer
|
|
| 31. |
VOE4821777
|
[0001] |
Restricting washer
|
|
| 32. |
VOE4821775
|
[0001] |
Screw Bushing
|
|
| 33. |
VOE930032
|
[1] |
Testing nipple
|
|
| |
VOE13949574
|
[1] |
O-ring
|
|
| 34. |
VOE931340
|
[1] |
Hose assembly
|
|
| 35. |
|
[1] |
Hydraulic Pump
|
SEE GROUP 91
|
| 36. |
VOE4823484
|
[1] |
Tube
|
|
| 37. |
VOE13960171
|
[1] |
O-ring
|
|
| 38. |
VOE963683
|
[2] |
Hex. socket screw
|
|
| 39. |
VOE4940200
|
[1] |
Clutch
|
SER NO 1552-
|
| 4. |
VOE13961892
|
[0001] |
Plug
|
SER NO -1290
|
| 40. |
VOE4940396
|
[1] |
Anchorage
|
SER NO 1555-
|
| 41. |
VOE11050965
|
[1] |
Brace
|
SER NO 1555-
|
| 42. |
VOE13945408
|
[2] |
Nut
|
SER NO 1555-
|
| 43. |
VOE4821892
|
[1] |
Clutch
|
SER NO 1555 - 1616
|
| |
VOE4821892
|
[1] |
Clutch
|
SER NO 1800 -
|
| |
VOE4940441
|
[1] |
Venturi
|
SER NO 1555-
|
| 44. |
|
[0001] |
Nipple
|
|
| 45. |
VOE4821777
|
[0004] |
Restricting washer
|
SER NO 1555-
|
| 46. |
VOE4821775
|
[0001] |
Screw Bushing
|
SER NO 1555-
|
| 47. |
VOE931223
|
[0001] |
Nipple
|
SER NO 1555 - 1616,
|
| |
|
|
None
|
SER NO 2124 -
|
| |
VOE931223
|
[0001] |
Nipple
|
SER NO 1800 - 2123
|
