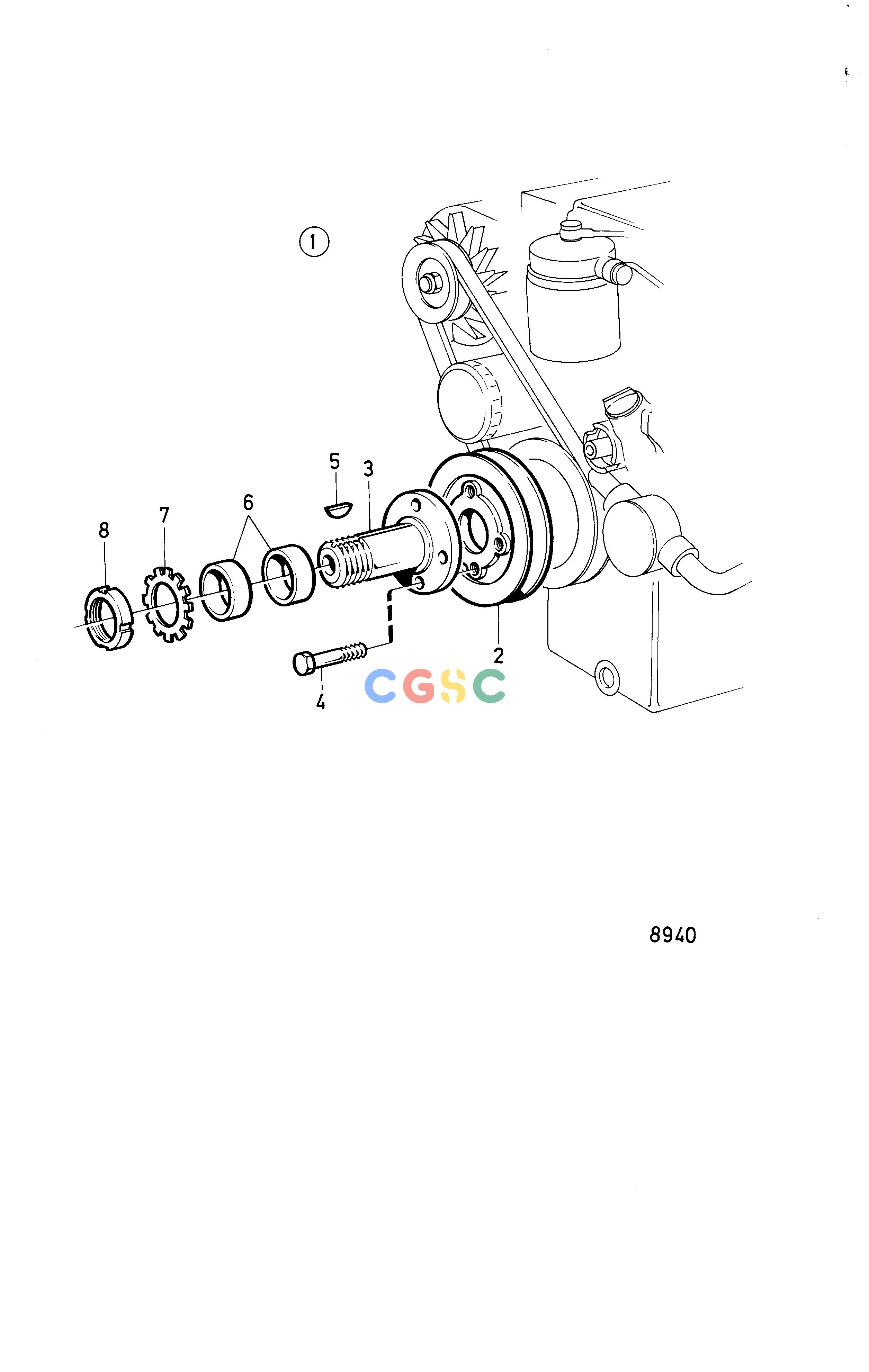

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 859026 | [1] | Drive kit | |
| 2. | 840794 | [1] | Pulley | |
| 3. | 858378 | [1] | Flange | |
| 4. | 963223 | [4] | Hexagon screw | |
| 5. | 948113 | [1] | Flat key | |
| 6. | 8250106 | [2] | Spacer sleeve | |
| 7. | 907026 | [1] | Lock washer | |
| 8. | 906636 | [1] | Round nut |
广数供应链运营团队, 14 02月, 2025，浏览： 270 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 859026 | [1] | Drive kit | |
| 2. | 840794 | [1] | Pulley | |
| 3. | 858378 | [1] | Flange | |
| 4. | 963223 | [4] | Hexagon screw | |
| 5. | 948113 | [1] | Flat key | |
| 6. | 8250106 | [2] | Spacer sleeve | |
| 7. | 907026 | [1] | Lock washer | |
| 8. | 906636 | [1] | Round nut |
